Home >> Mercury >> 1994 >> Cougar/XR7 V8-281 4.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Electronic Vacuum Regulator Solenoid >> Locations

EGR Electronic Vacuum Regulator Solenoid: Locations

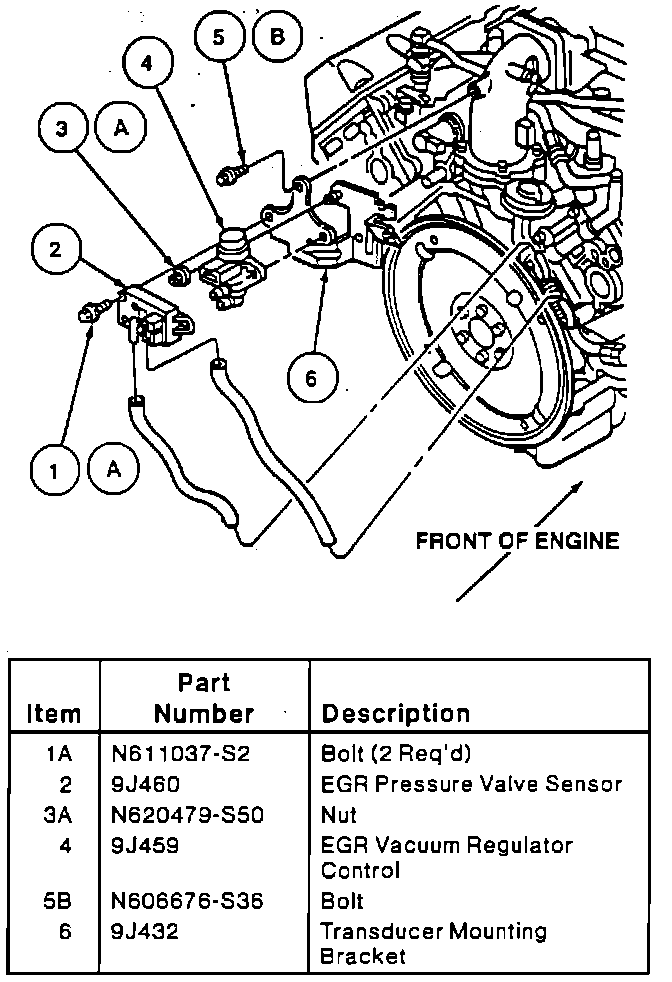

EGR Pressure Sensor Location:
