Pinpoint Test Schematics

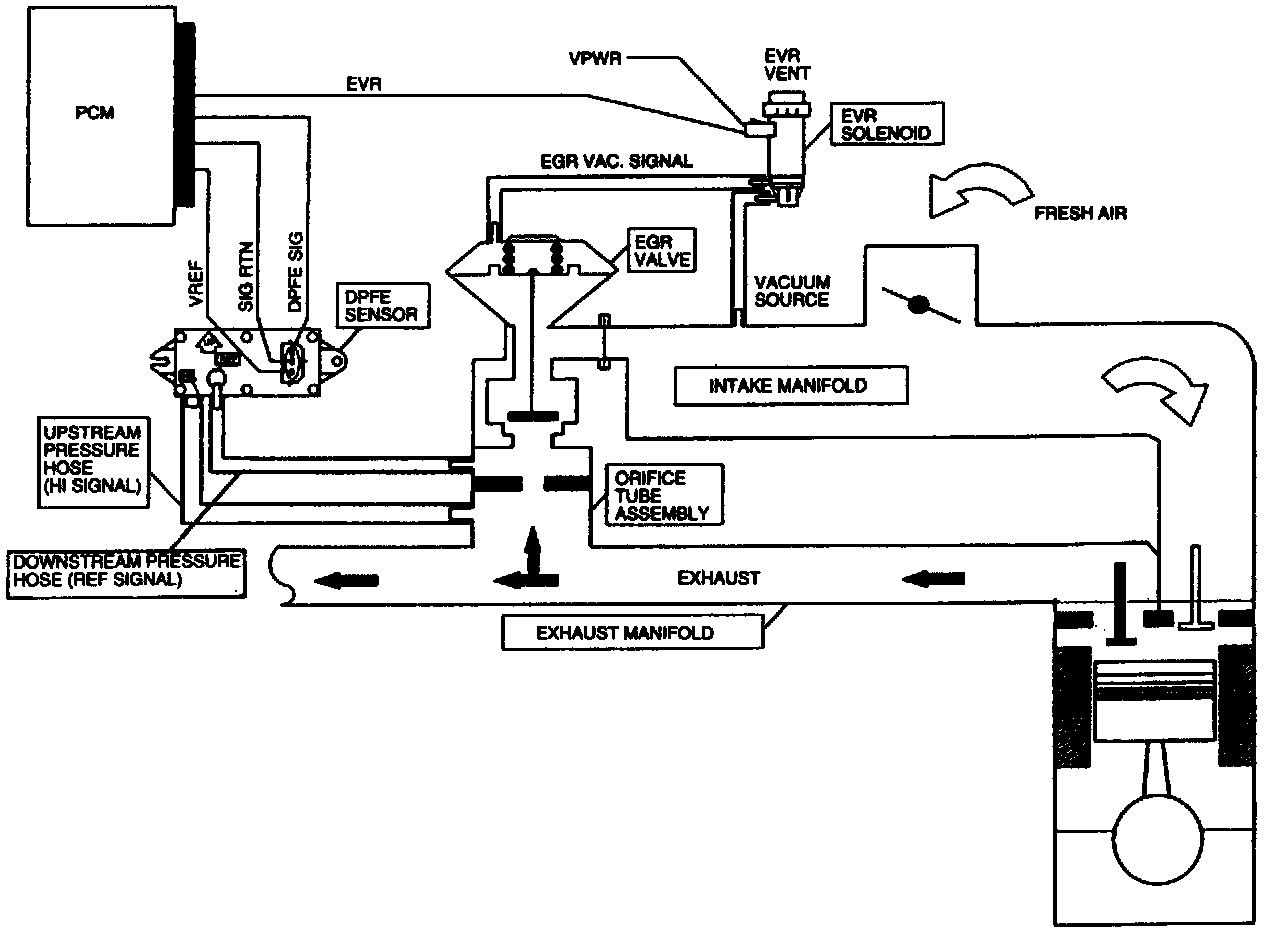

Differential Pressure Feedback Electronic EGR System:
Pinpoint Test Schematic:
