Mercury
>>
1994
>>
Cougar/XR7 V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Warning Indicator
Brake Warning Indicator

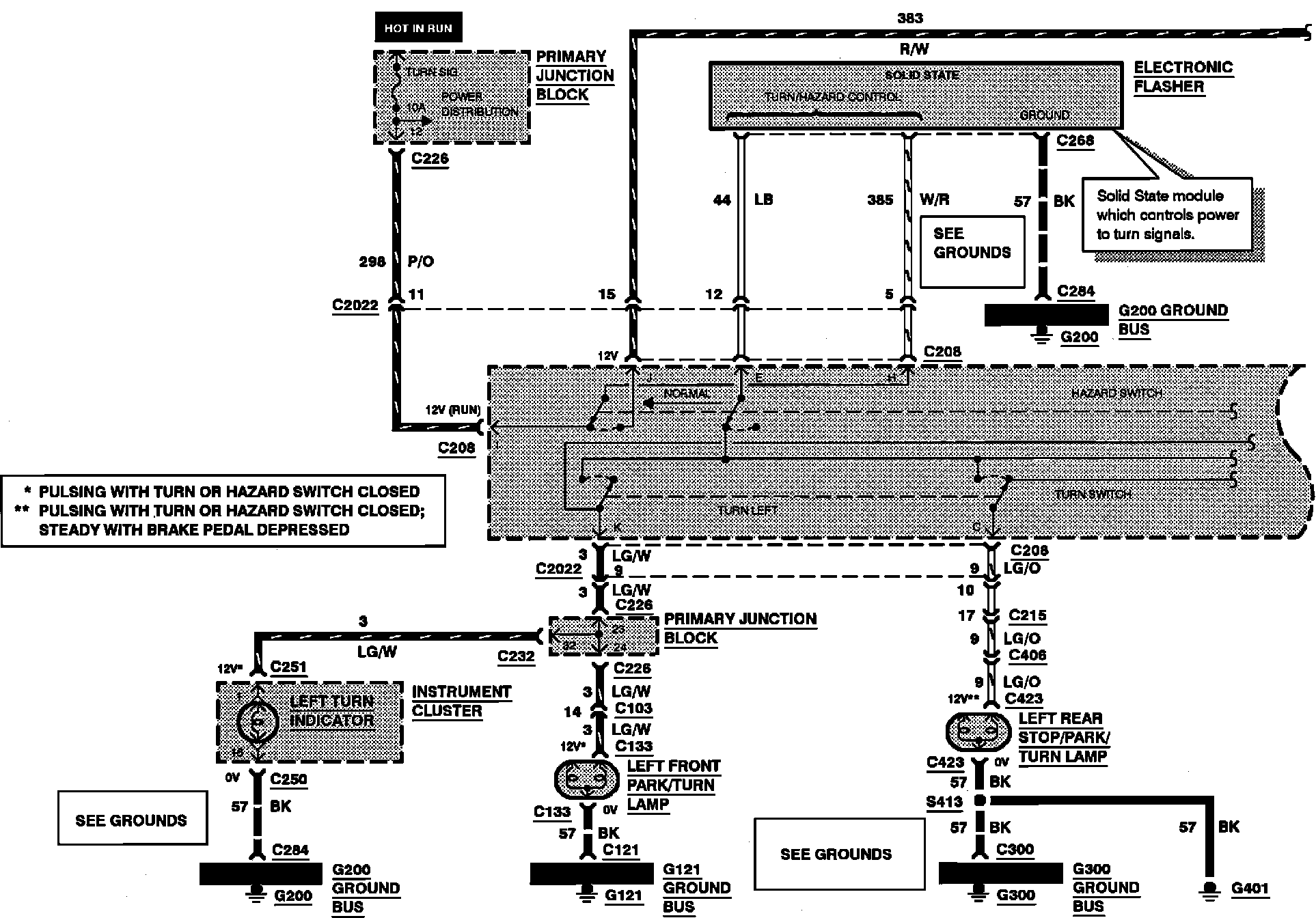

Turn/Stop/Hazard Lamps:
Turn/Stop/Hazard Lamps:
