With Autolamps
With Autolamps

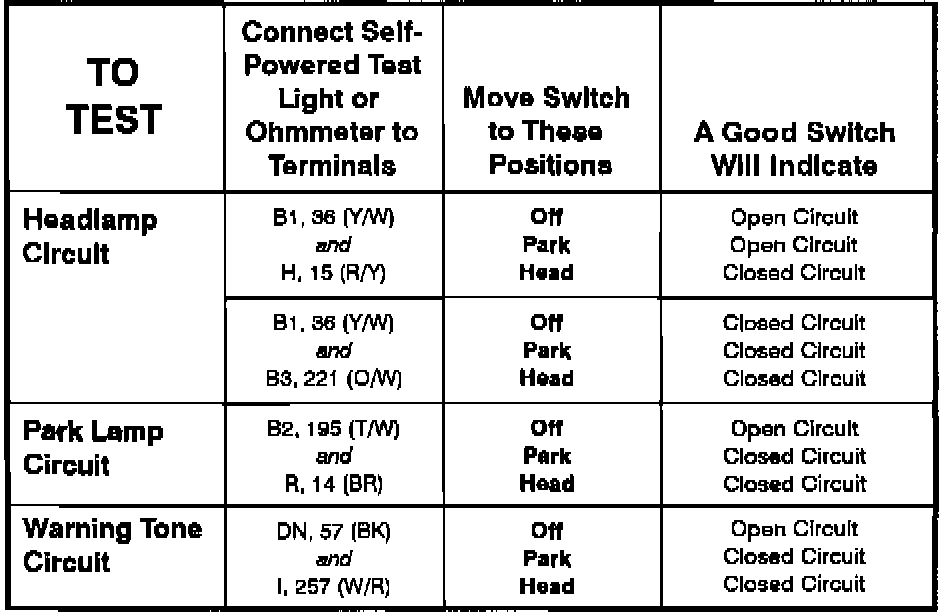

Component Testing Procedure:

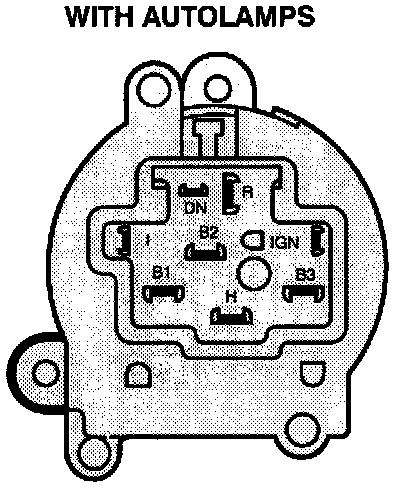

Main Light Switch - Terminal Locations (With Autolamps):
Schematic:
