Headlamp Dimmer Switch: Testing and Inspection

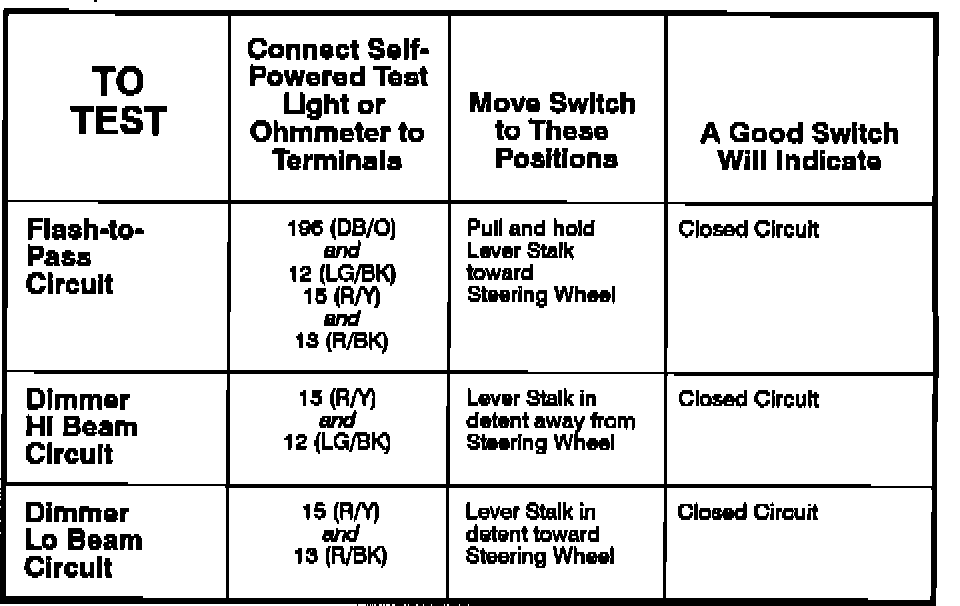

Component Testing Procedure:




Schematic:




Terminal ID:
