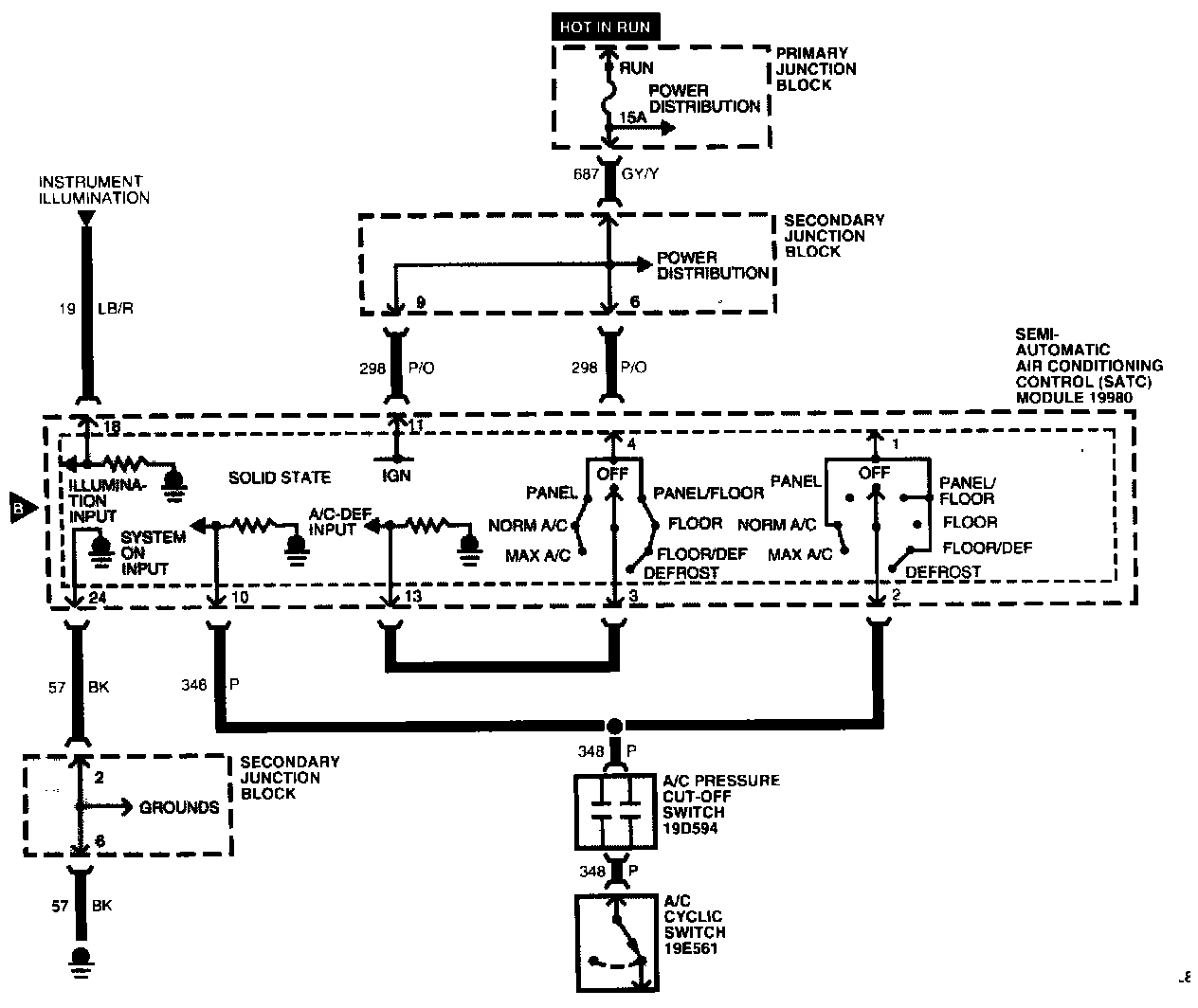

Home >> Mercury >> 1994 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Electronic Climate Control >> 2 of 2

2 of 2

2 of 2:
