Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercury
>>
1994
>>
Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
>>

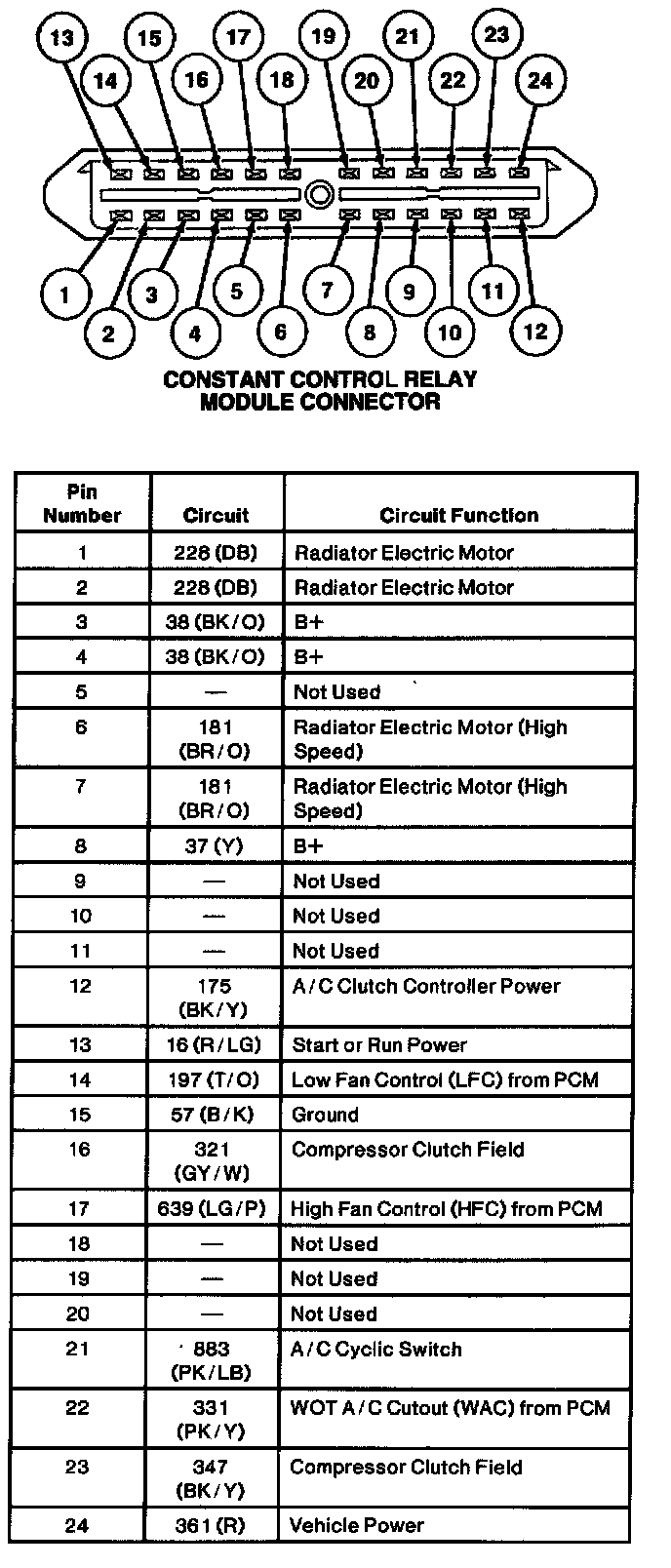

Constant Control Relay Module Connector
Constant Control Relay Module Connector
Constant Control Relay Module Connector:
