Mercury
>>
1994
>>
Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>

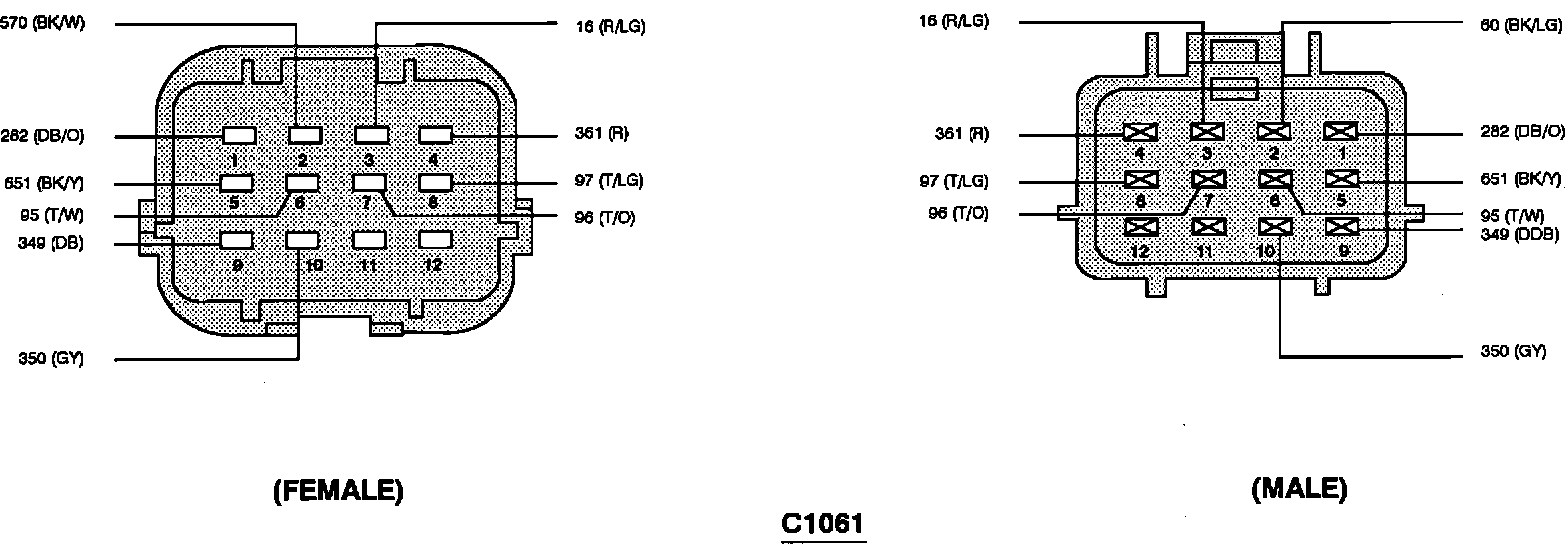

C1061
C1061
Connector Face Identification:
