Home
>>
Mercury
>>
1994
>>
Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Cluster
>>

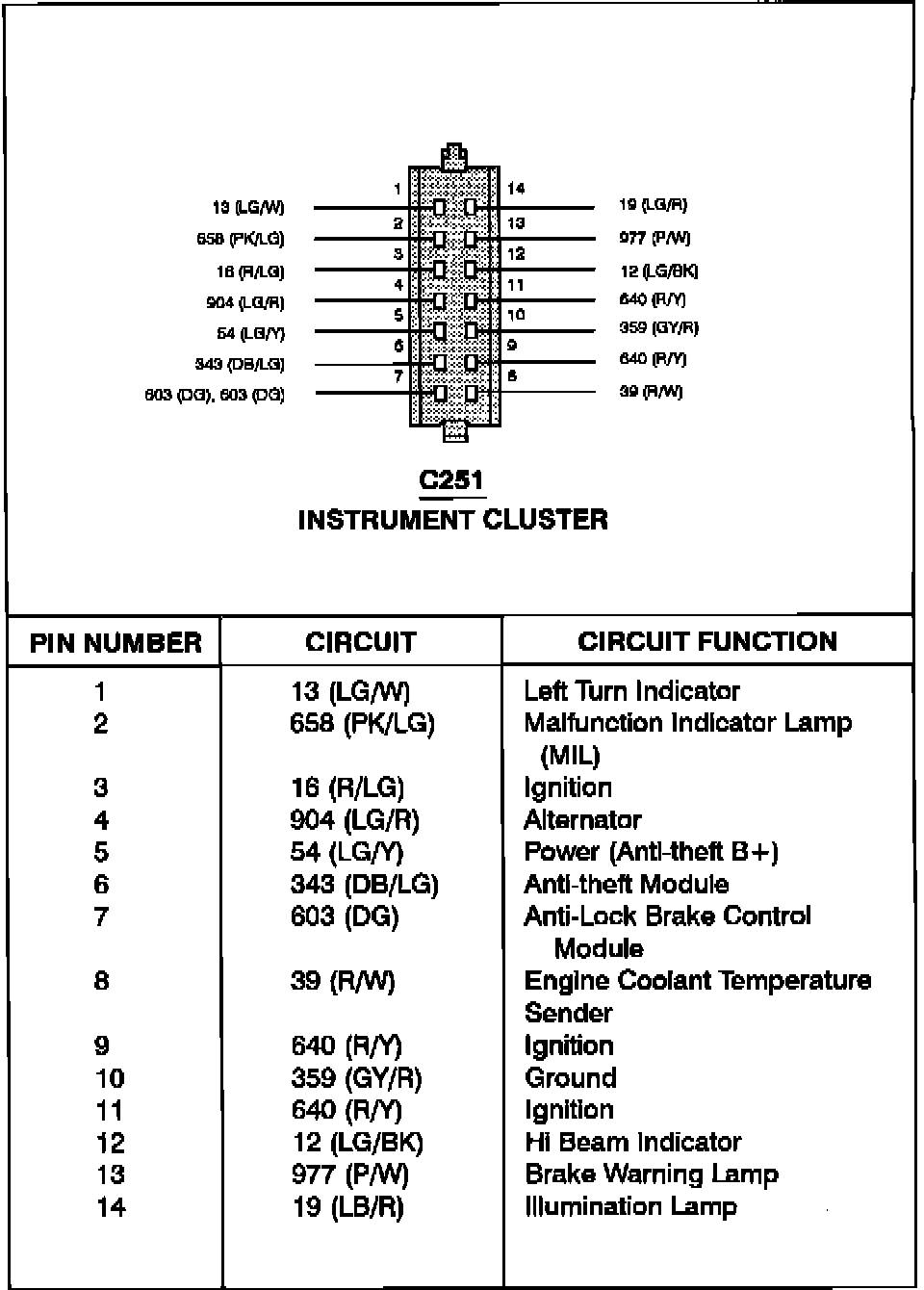

C251
C251
Instrument Cluster:
