System Diagram
System Diagram

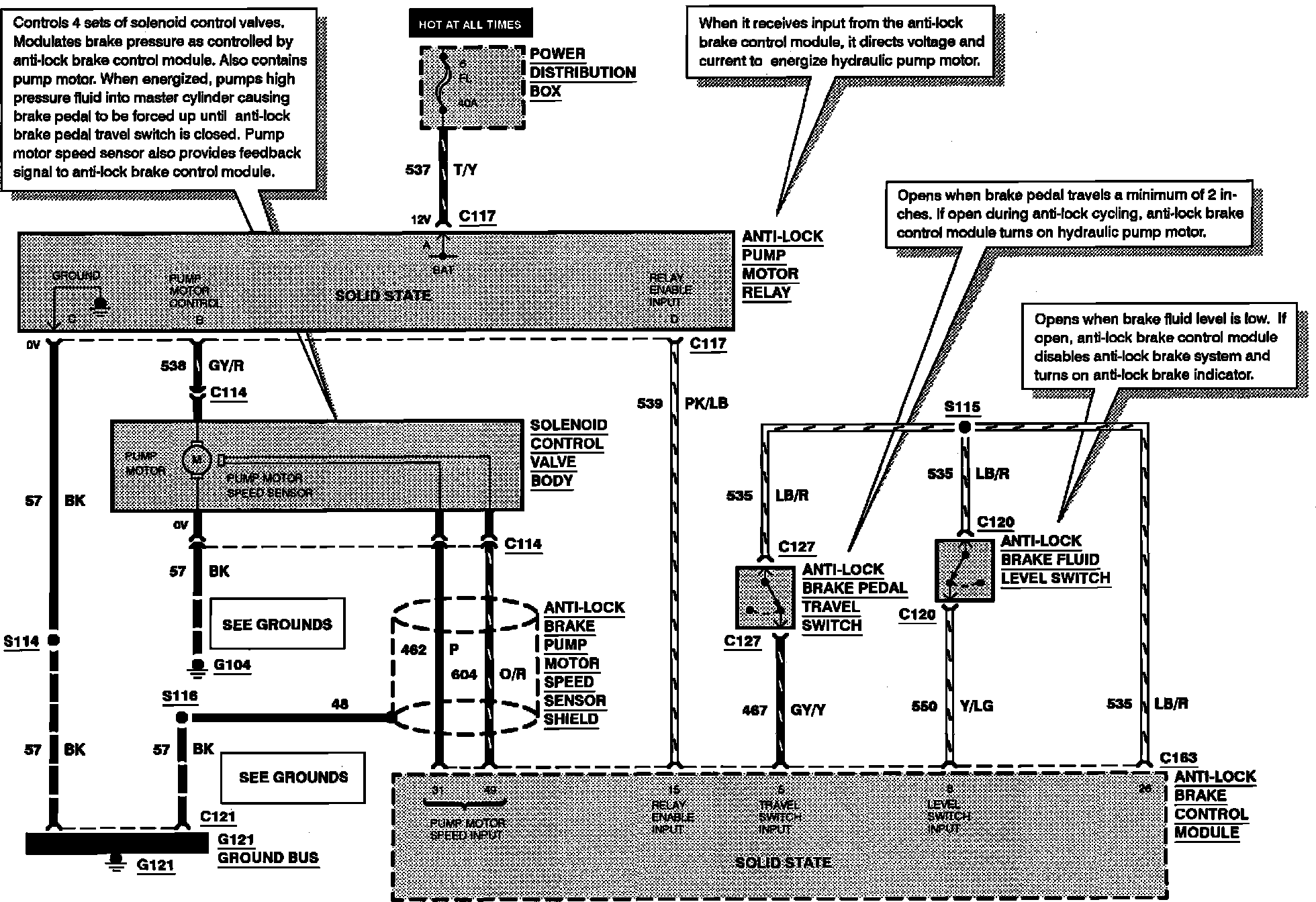

Anti-Lock Brake System (ABS):

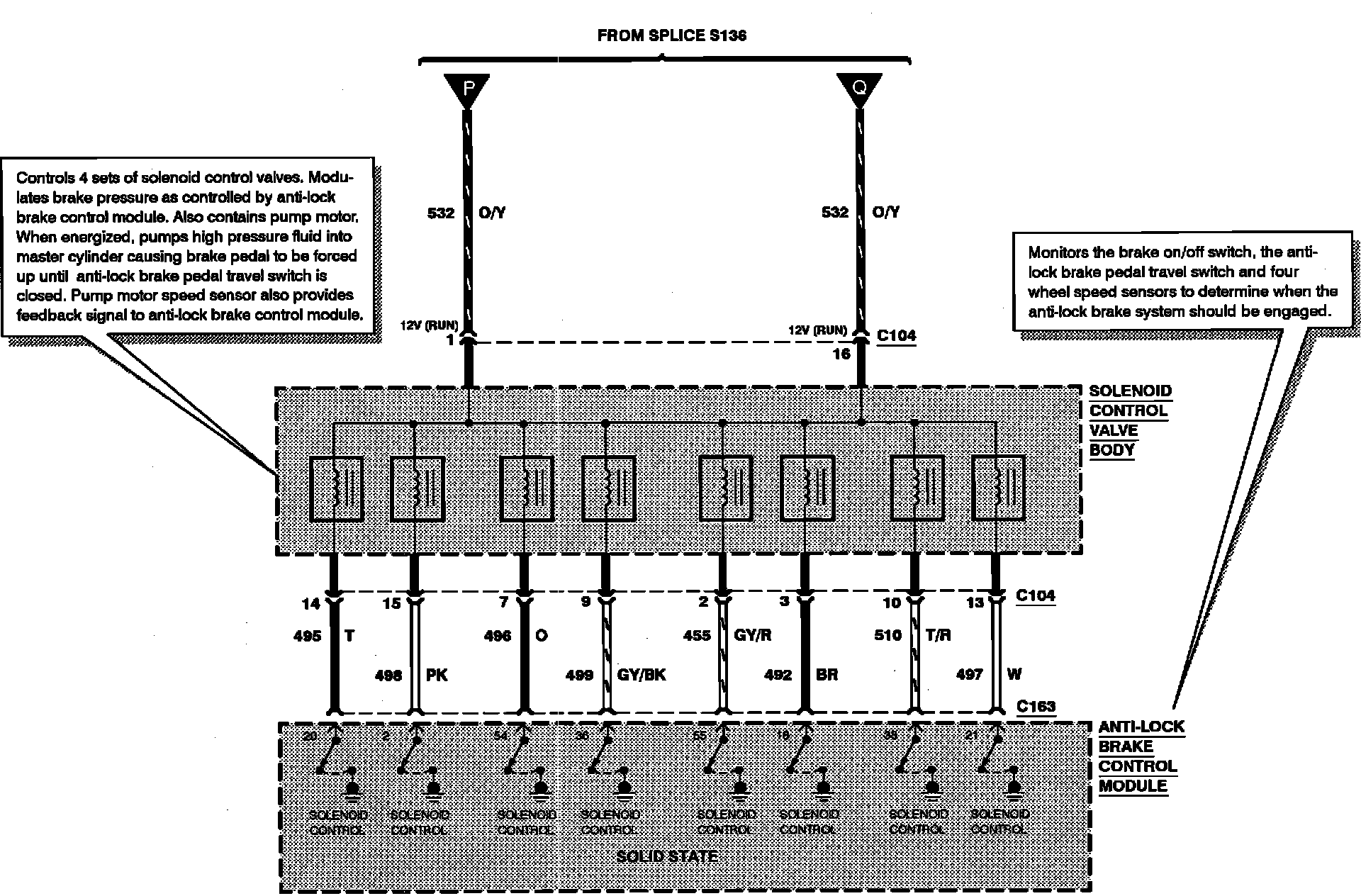

Anti-Lock Brake System (ABS):

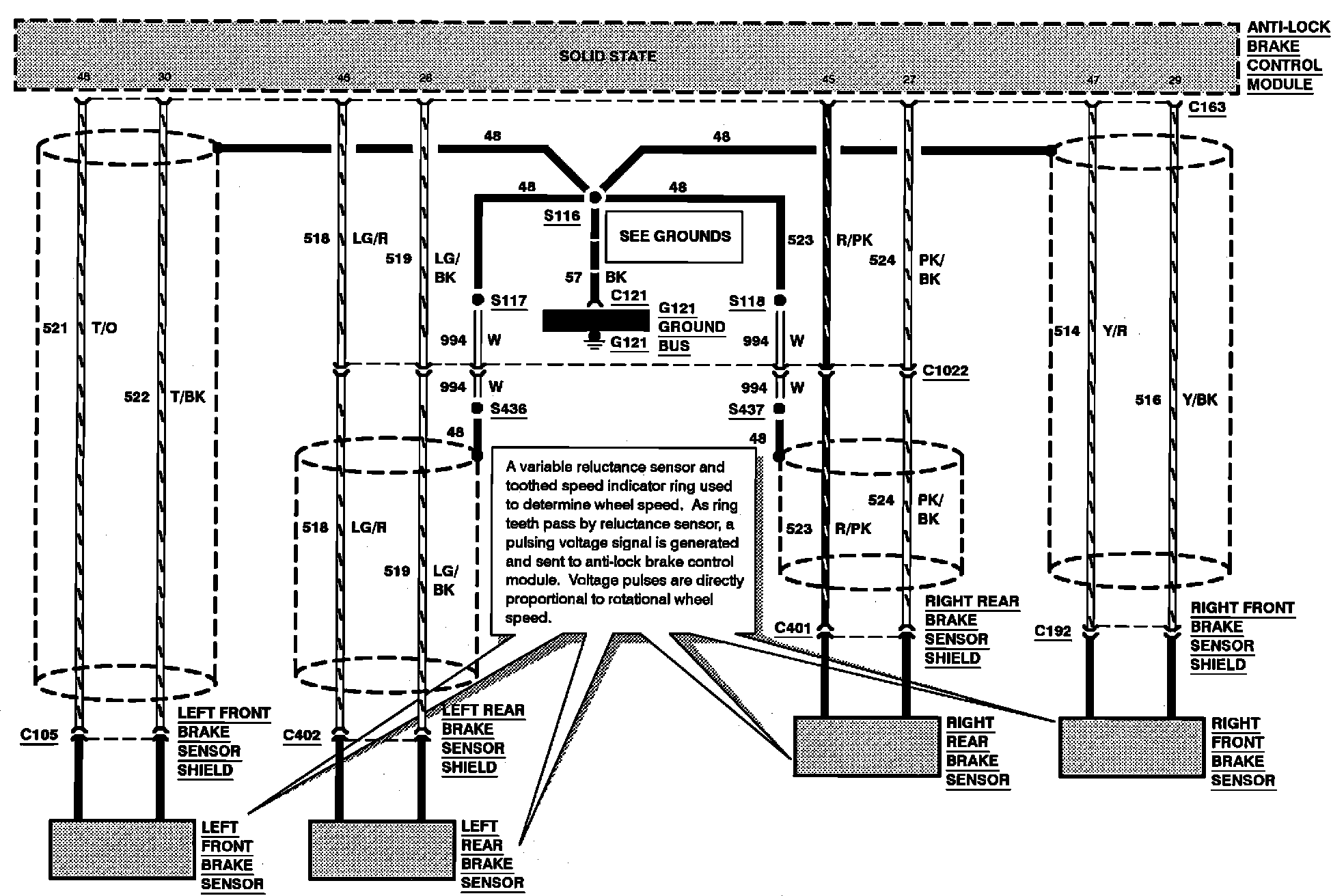

Anti-Lock Brake System (ABS):

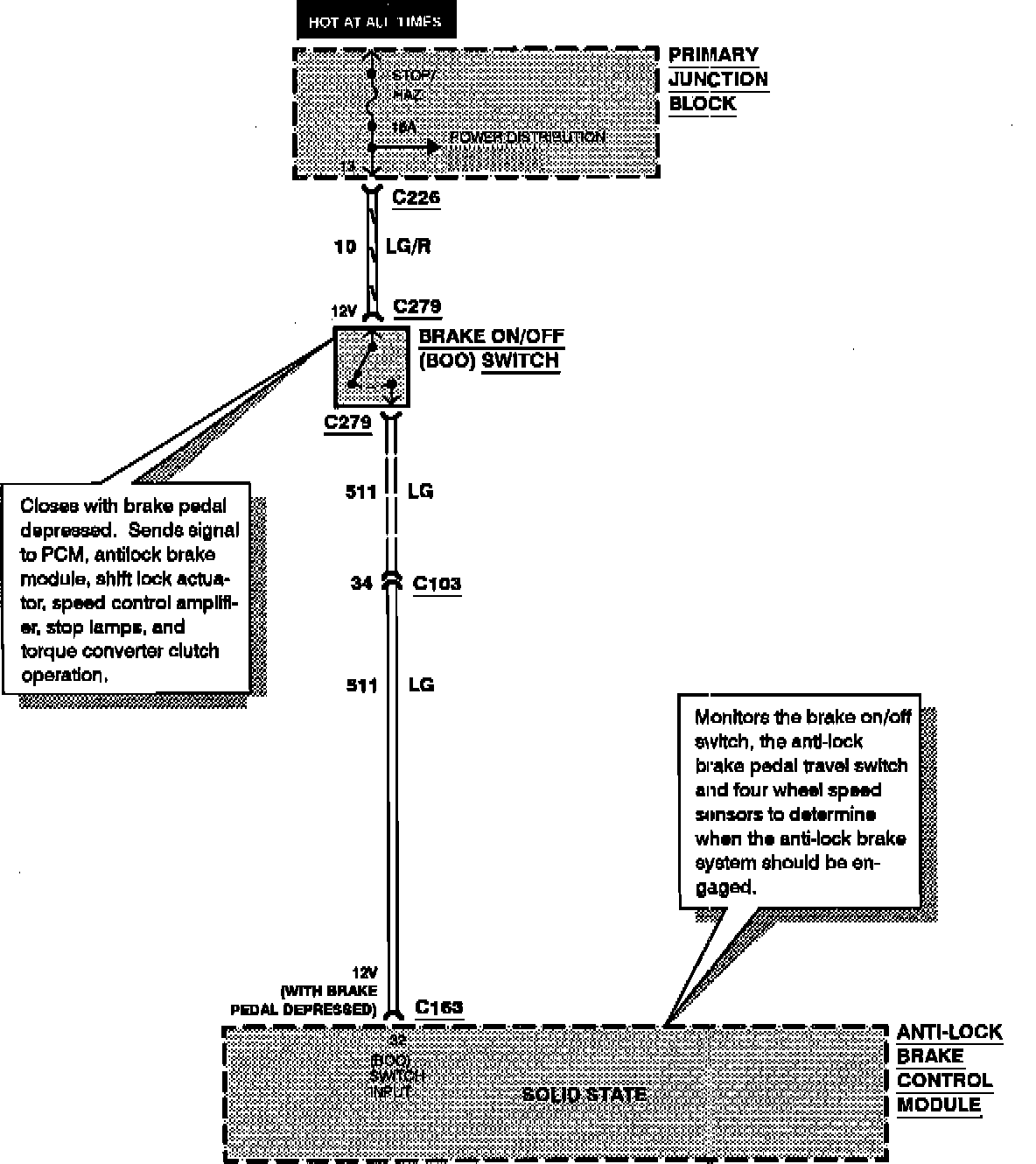

Anti-Lock Brake System (ABS):

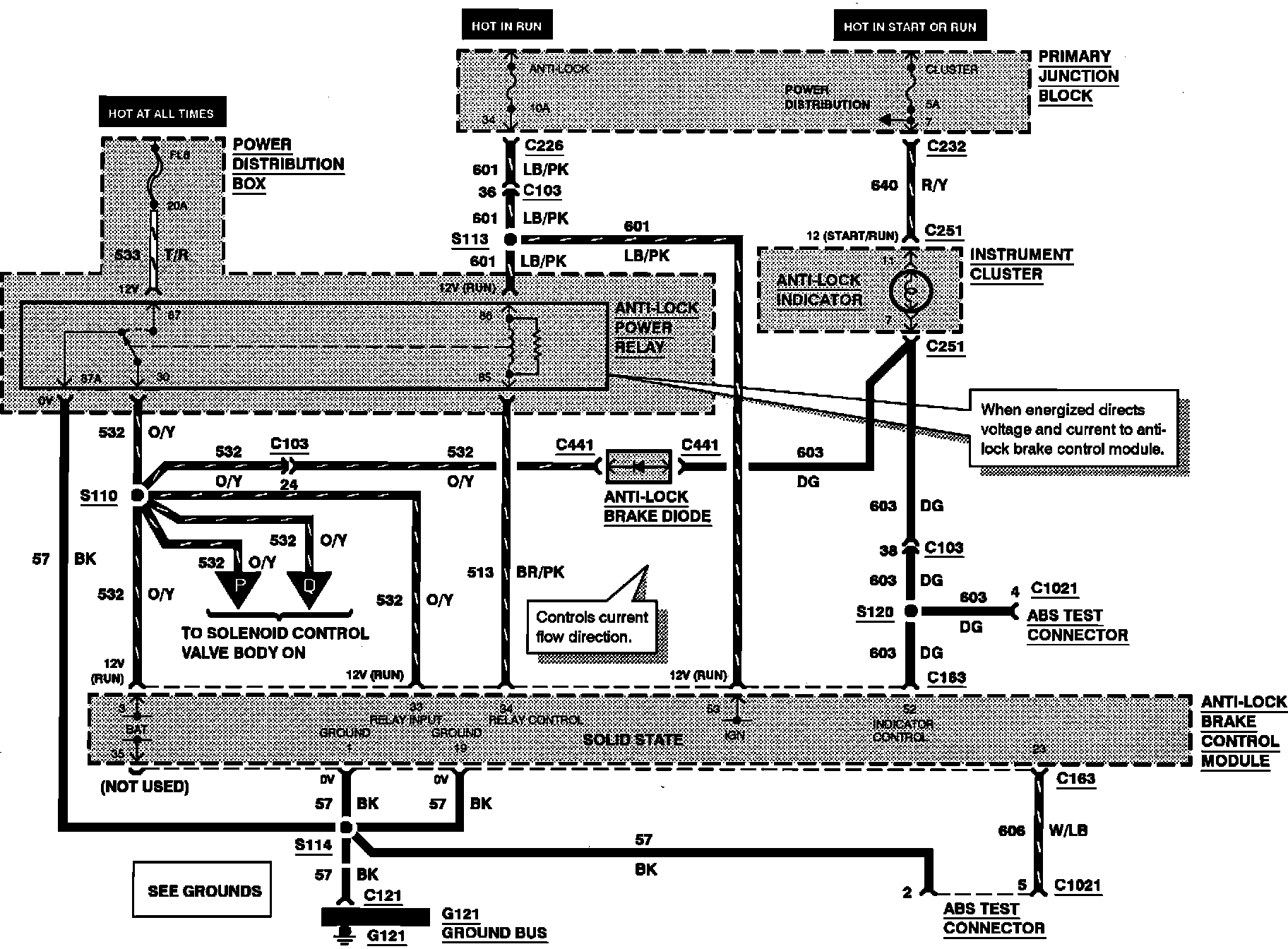

Anti-Lock Brake System (ABS):
