Home
>>
Mercury
>>
1994
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

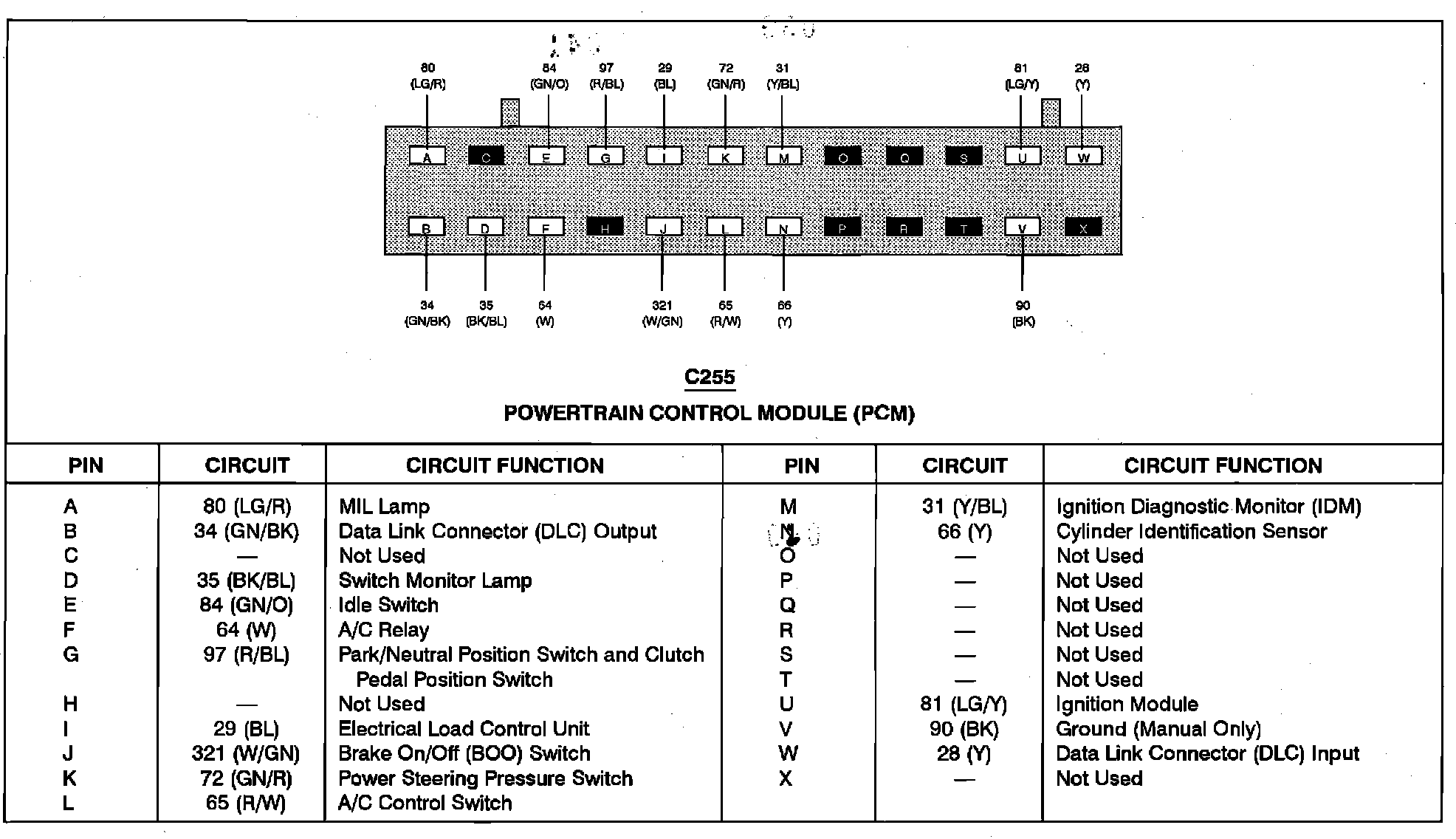

Powertrain Control Module (PCM):
Powertrain Control Module (PCM):
Powertrain Control Module (PCM):
