Mercury
>>
1994
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
Connector Views

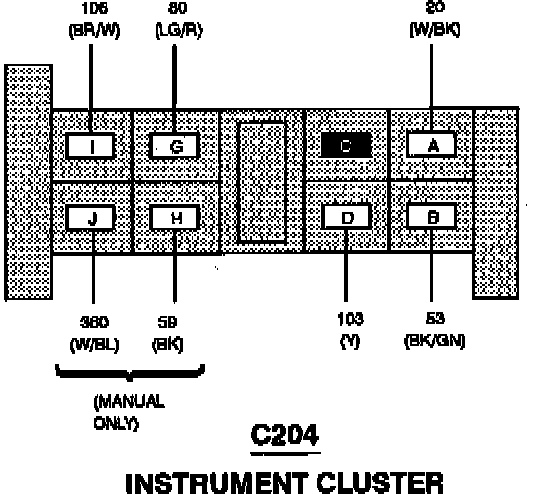

Instrument Cluster:

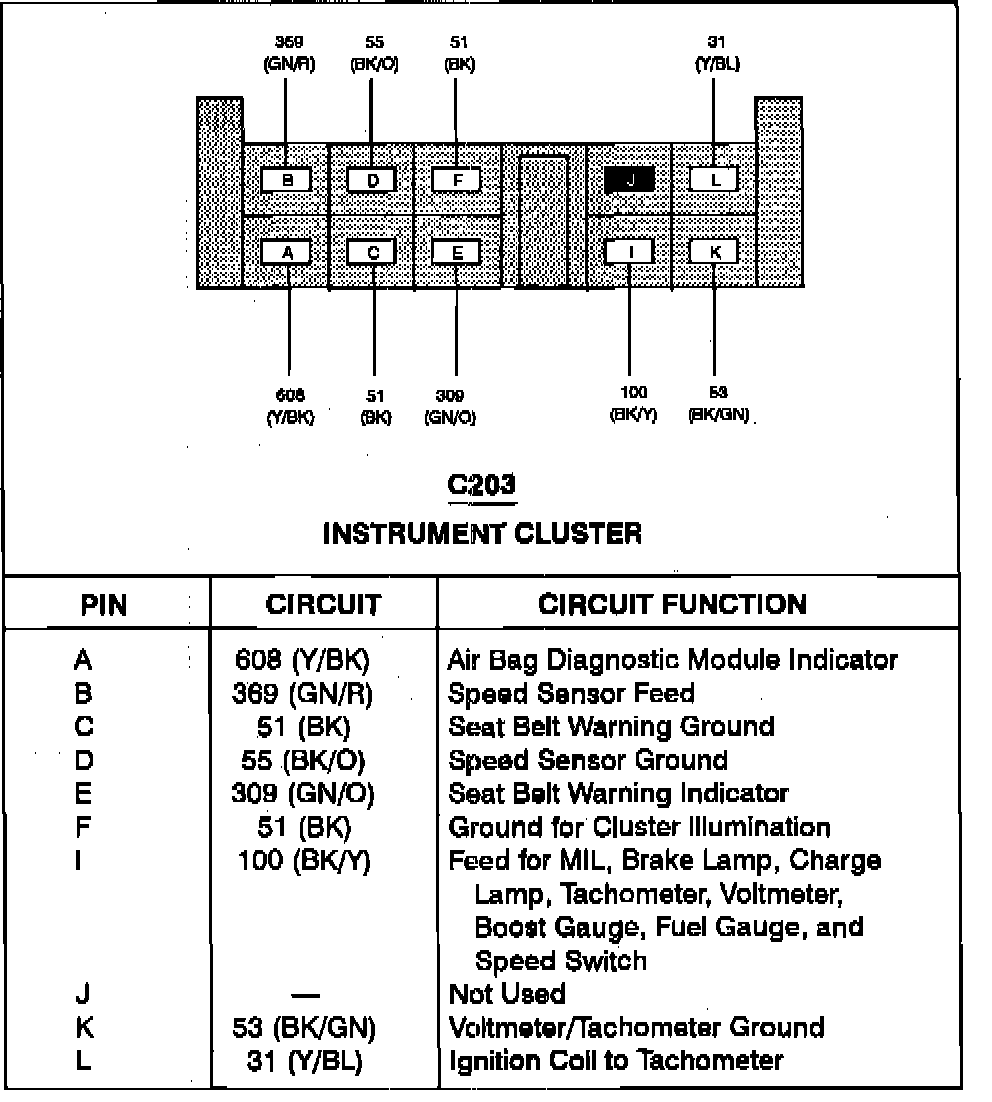

Instrument Cluster:
Instrument Cluster:
