Mercury
>>
1994
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Grounds
>>

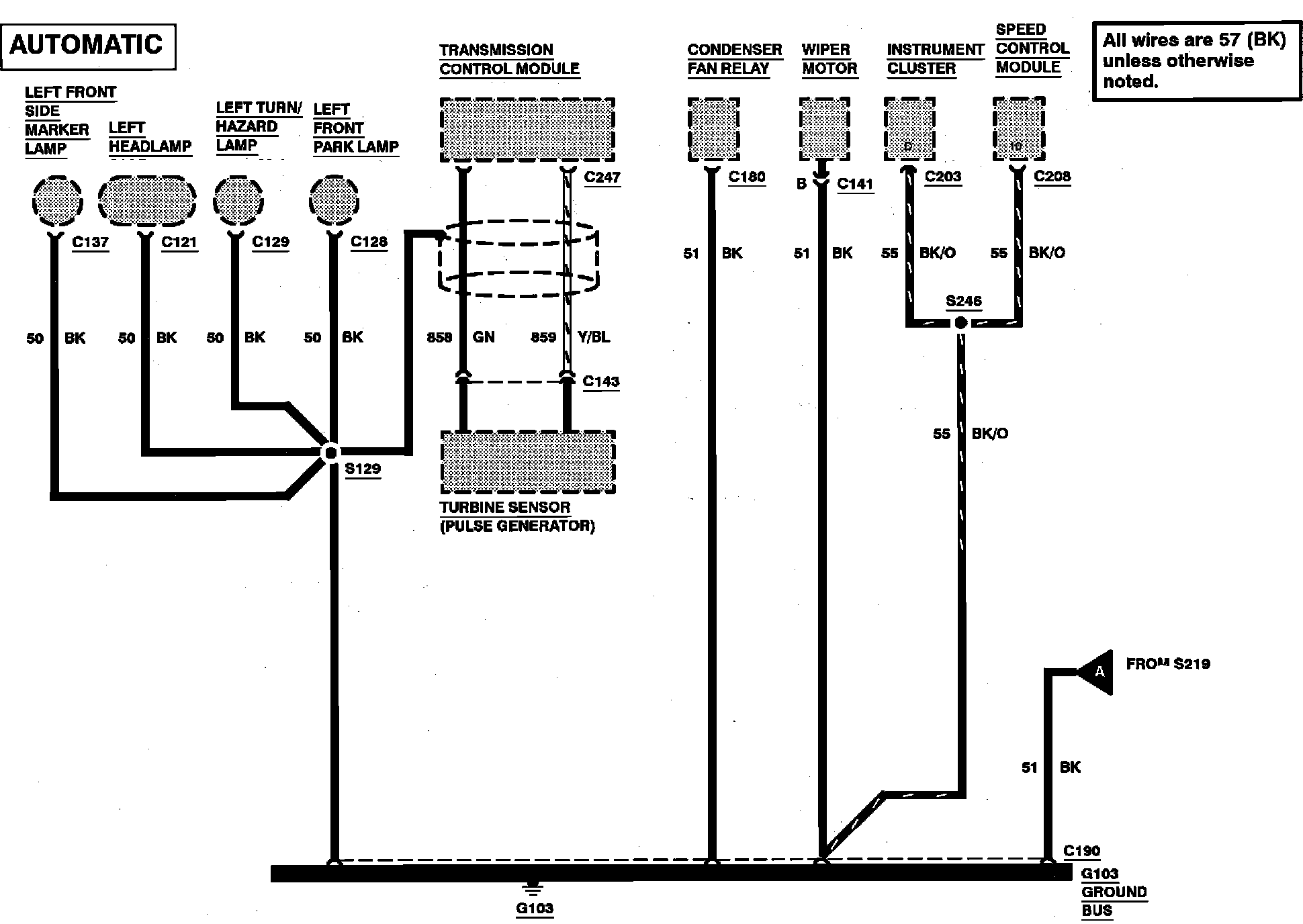

G103
>>
Automatic

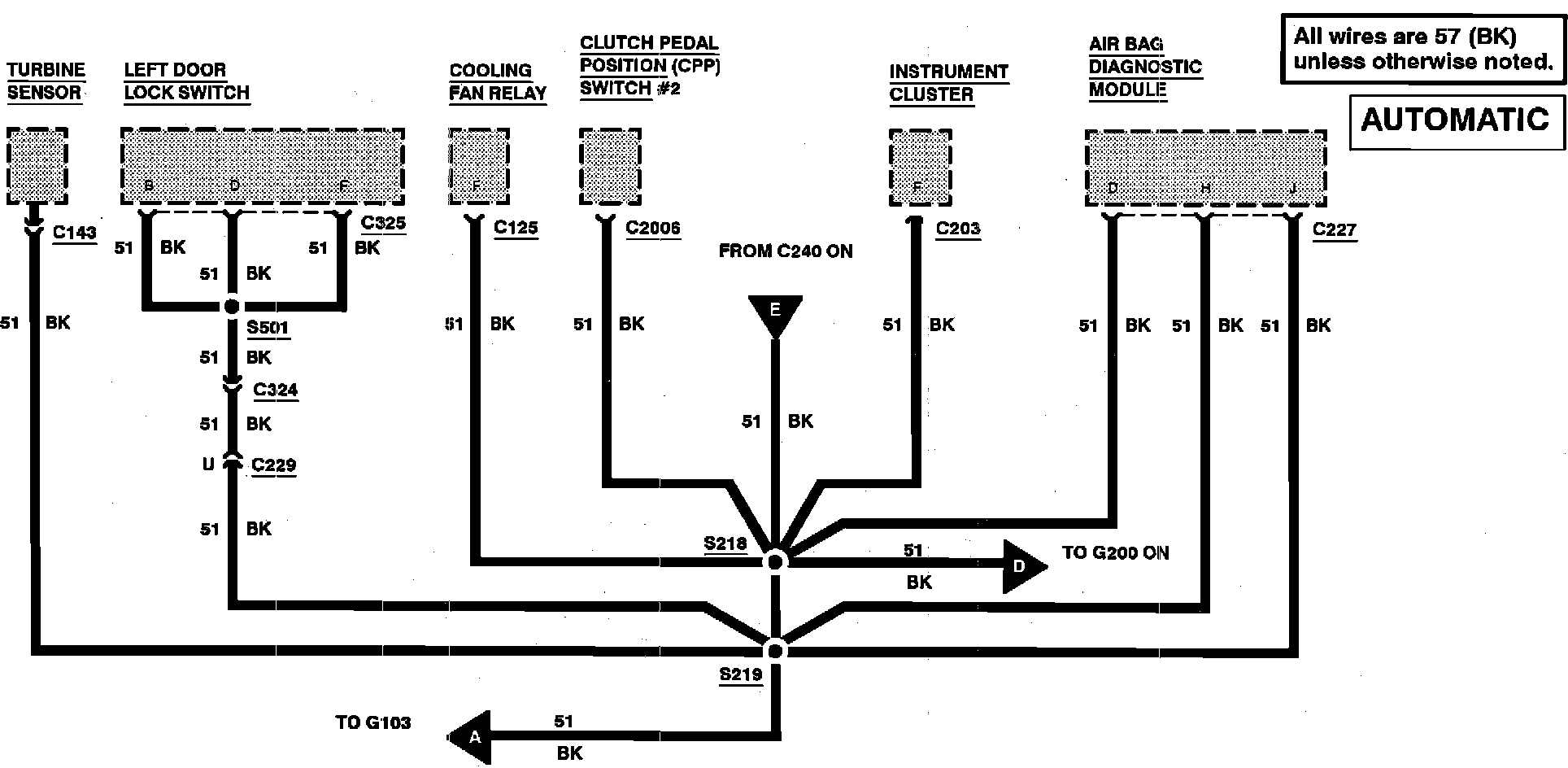

Automatic

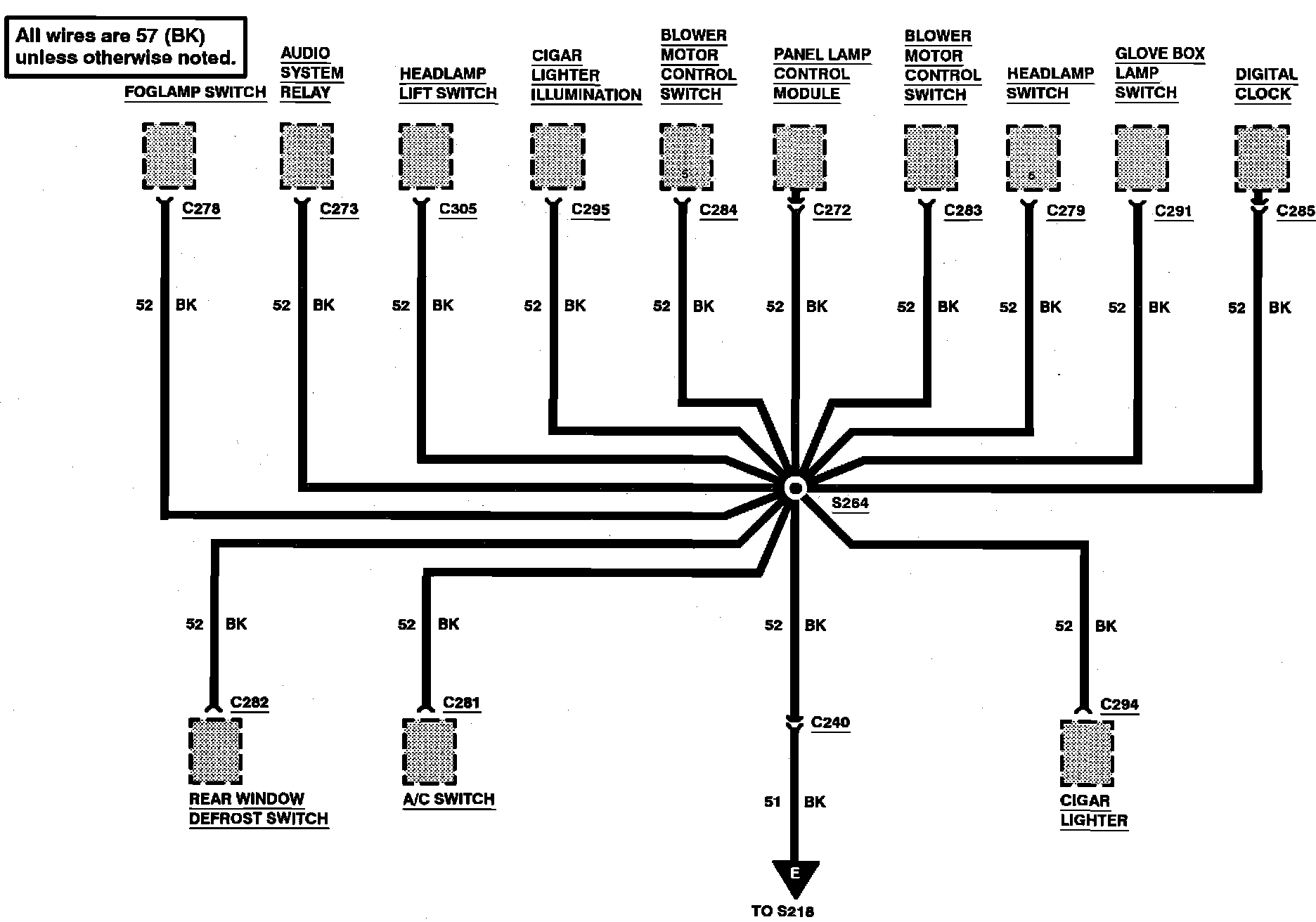

Grounds:
Grounds:
Grounds:
