Home
>>
Mercury
>>
1994
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
Cooling System

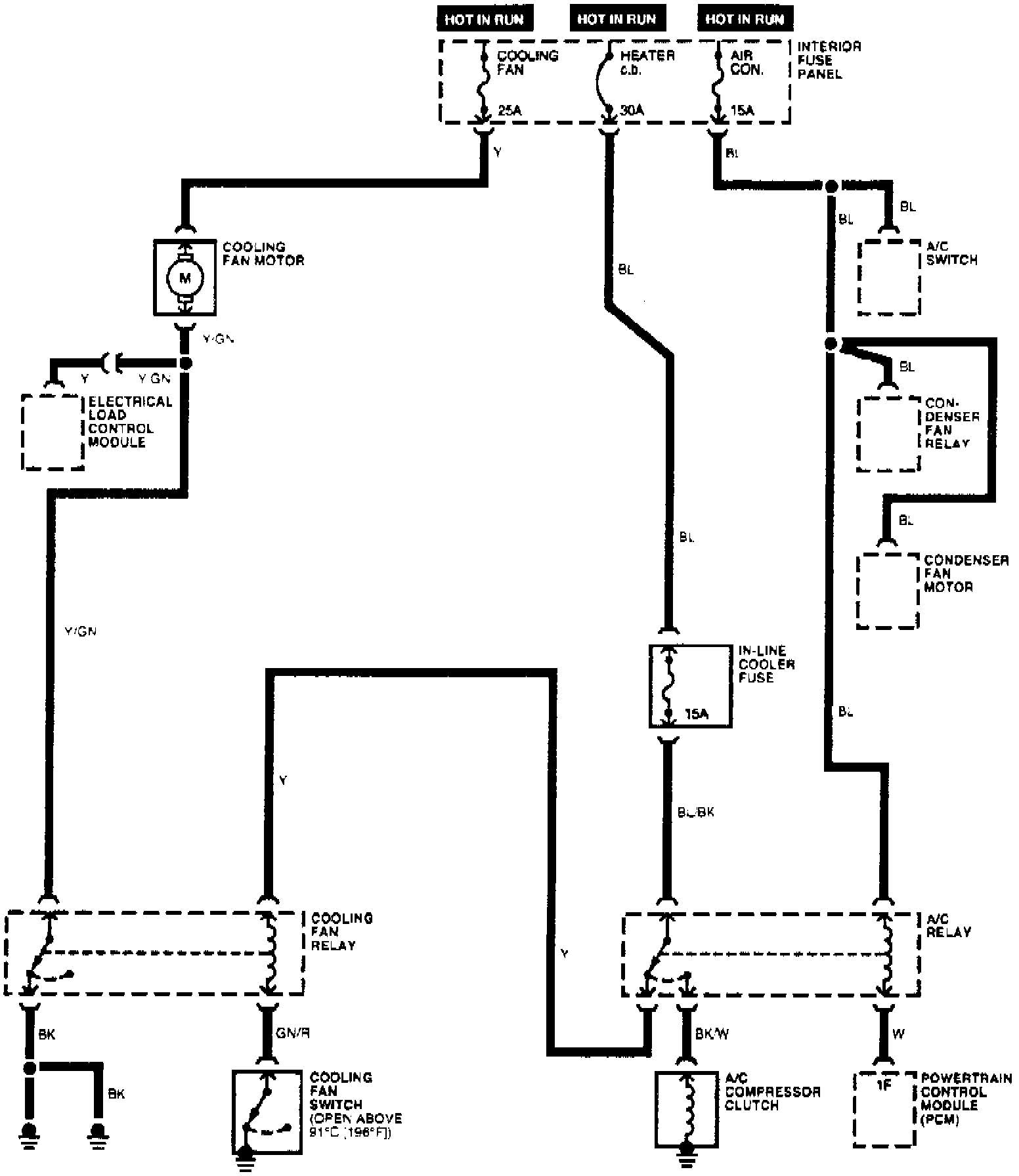

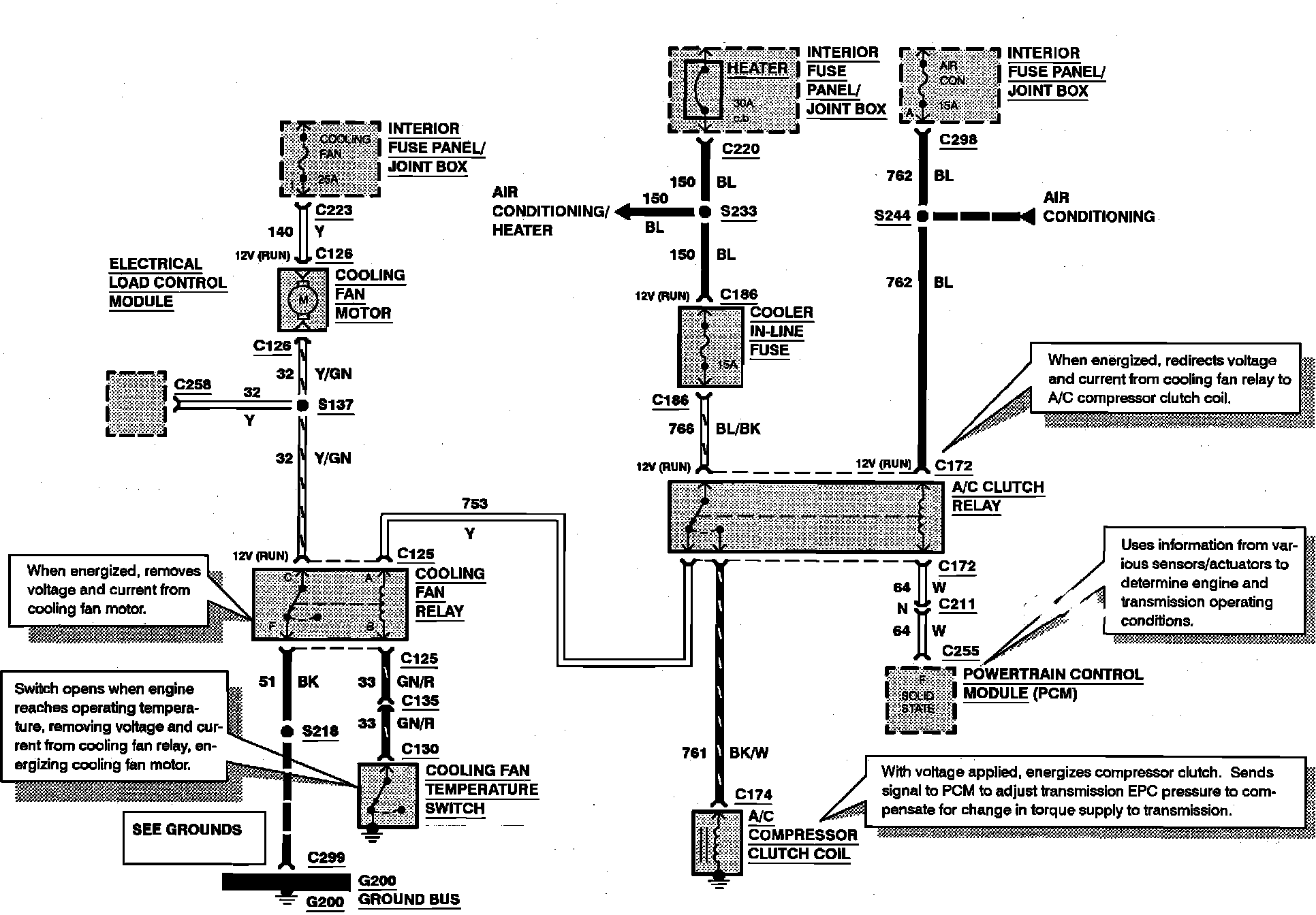

Schematic:
Cooling Fans:
