AIR9 - Check AIRB Valve Diaphragm
AIR9 - Check AIRB Valve Diaphragm

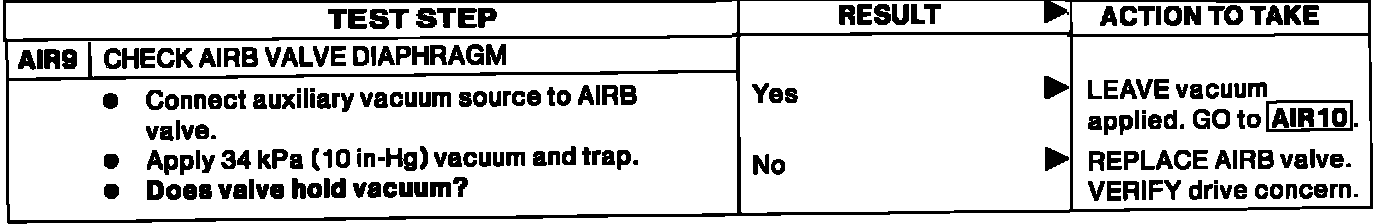

Air9 - Check AIRB Valve Diaphragm:
