DC - Mass Air Flow (MAF) Sensor
>>
DC - Testing Schematic
DC - Testing Schematic

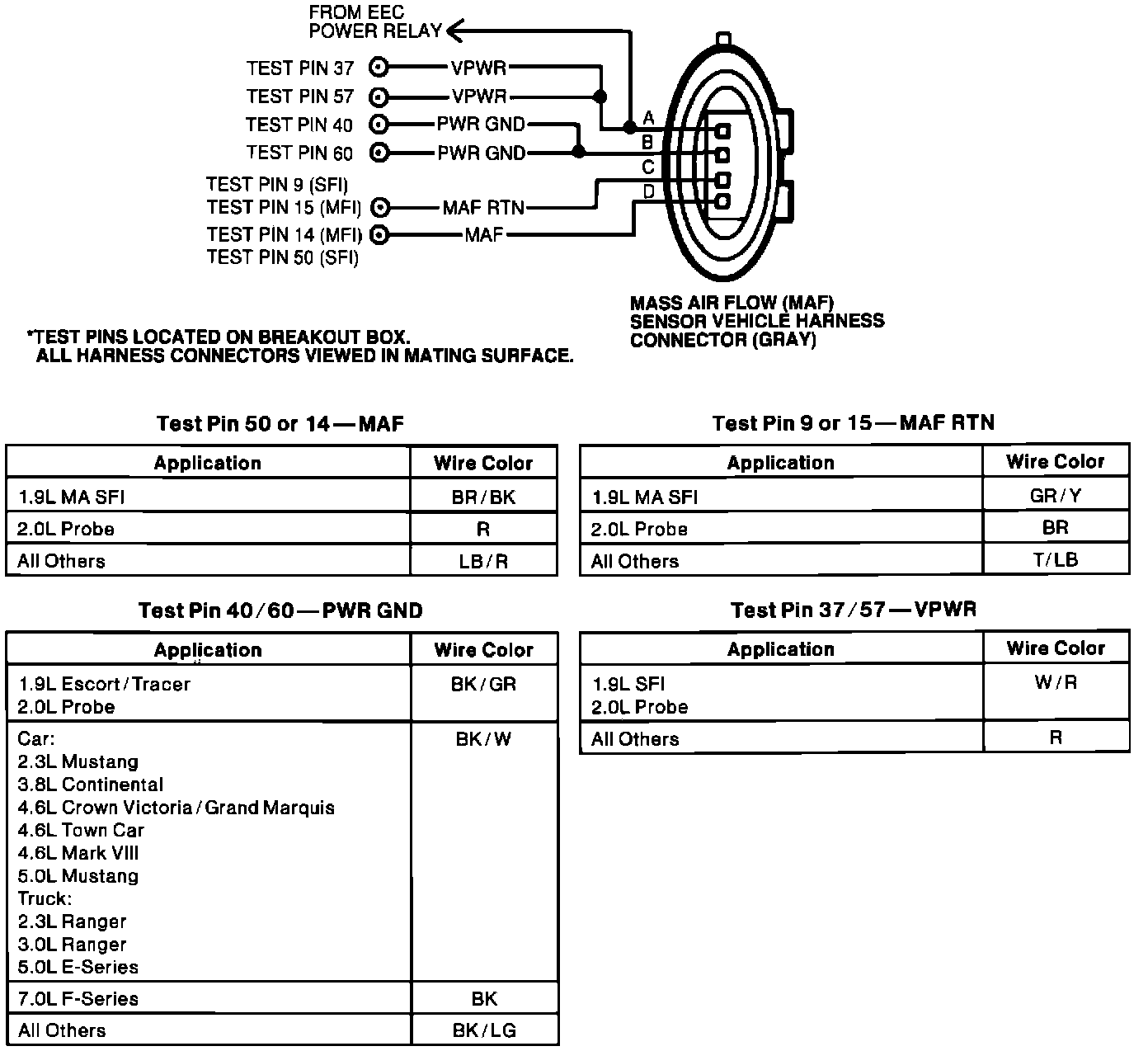

Schematic Diagram:
Schematic Diagram:
