Curiosii for ever!: Car repair manuals for everyone.

Home >> Mercury >> 1993 >> Topaz V6-182 3.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> Fuse Circuits >> Fuse 18 >> Part 3 of 3

Part 3 of 3

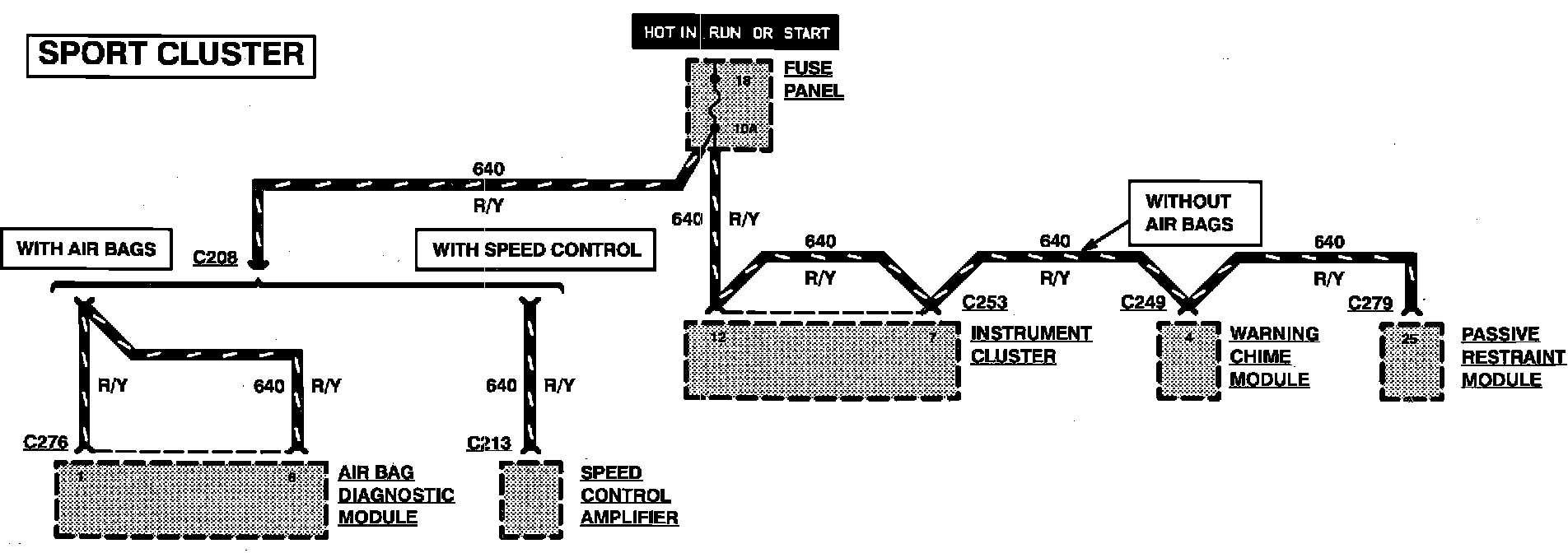

Power Distribution:
