Mercury
>>
1993
>>
Topaz V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

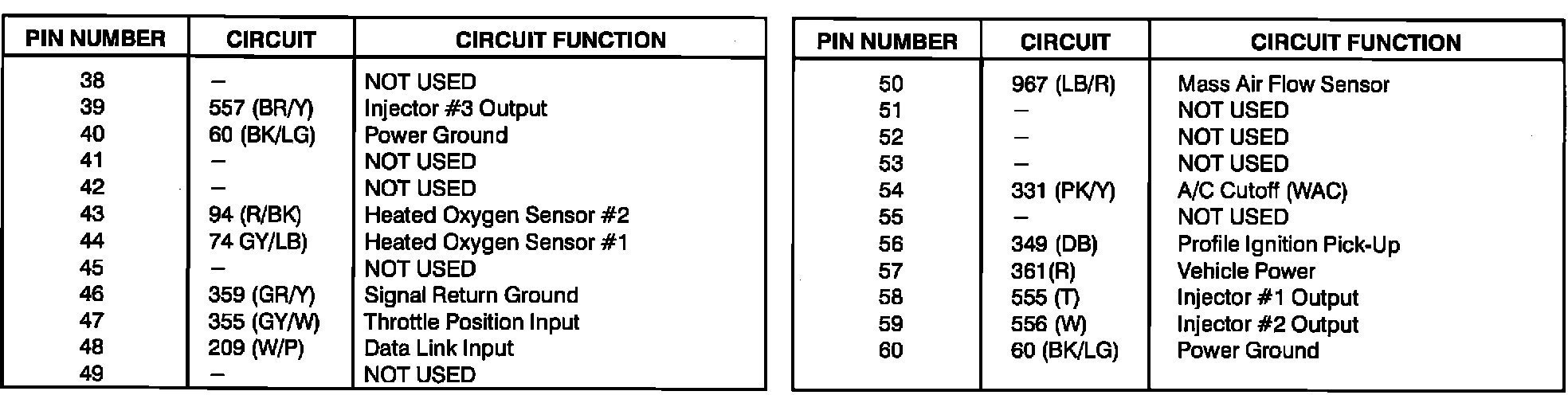

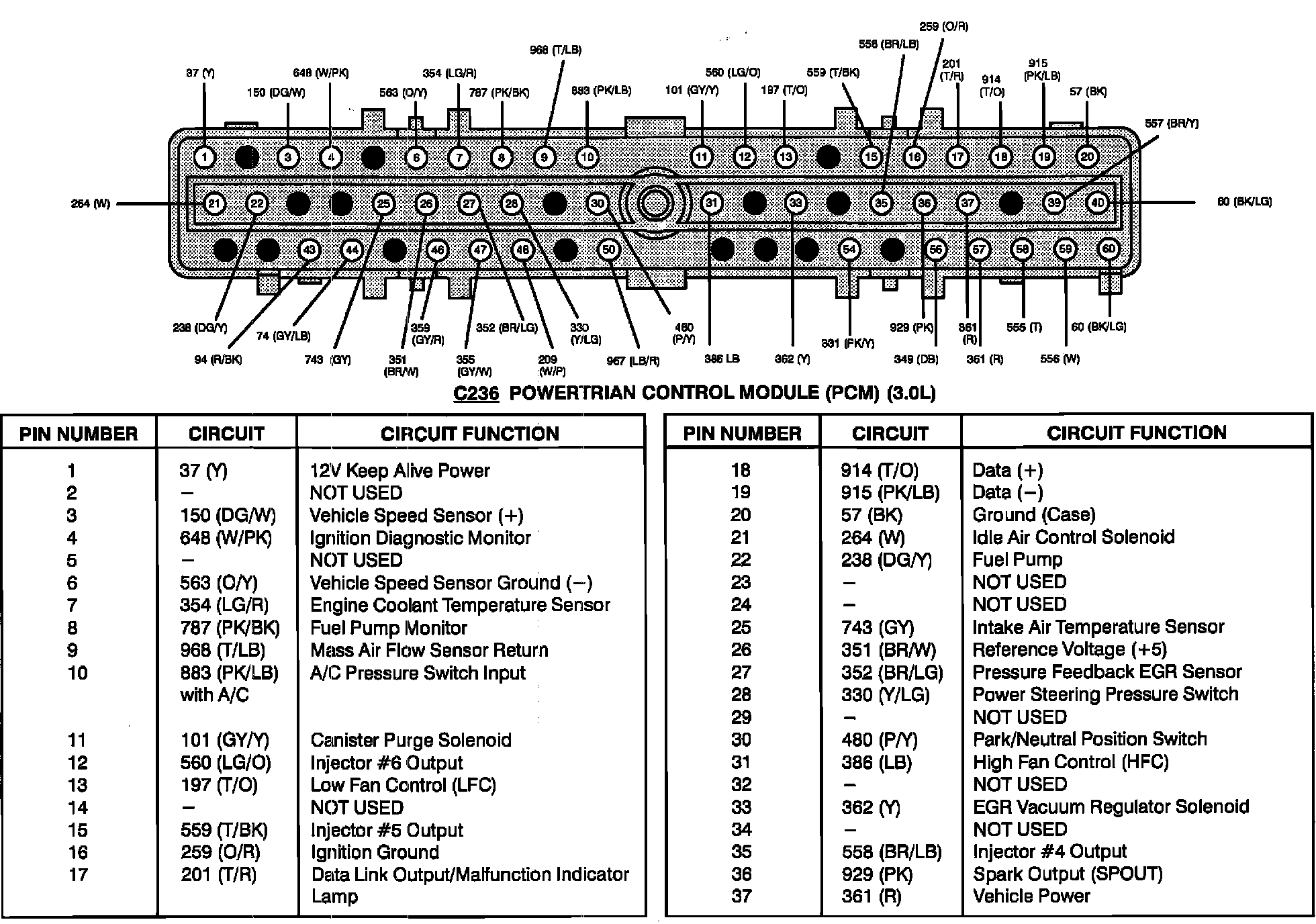

Powertrain Control Module (PCM):
Powertrain Control Module (PCM):
