TG - Electronic Transmission - Continuous Memory Service Codes
>>

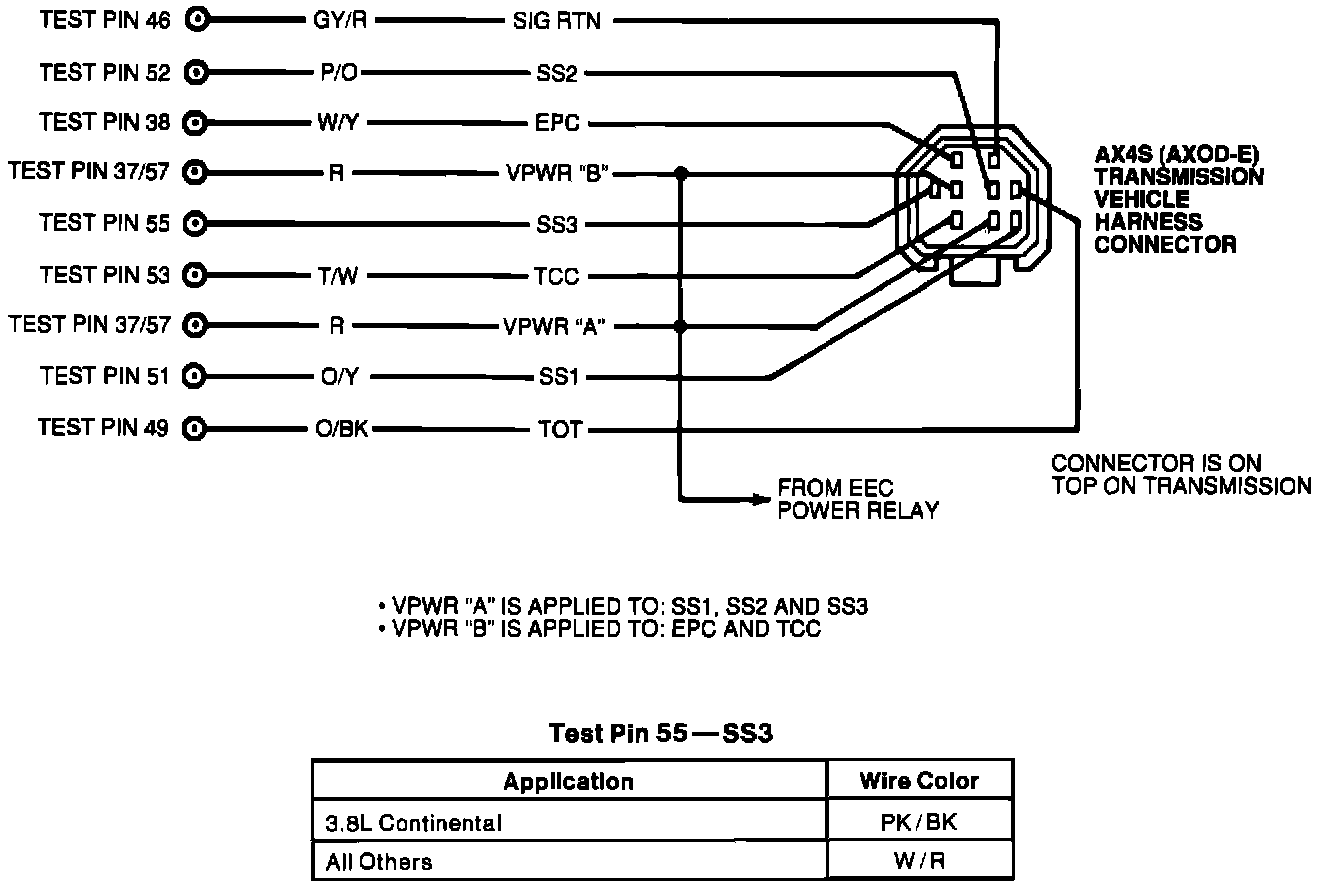

TG - Testing Schematic
>>
Transmission Connector
Transmission Connector
Schematic Diagram:
