DF - Manifold Absolute Pressure (MAP)/Barometric Pressure (BP)
>>
DF - Test Schematic
DF - Test Schematic

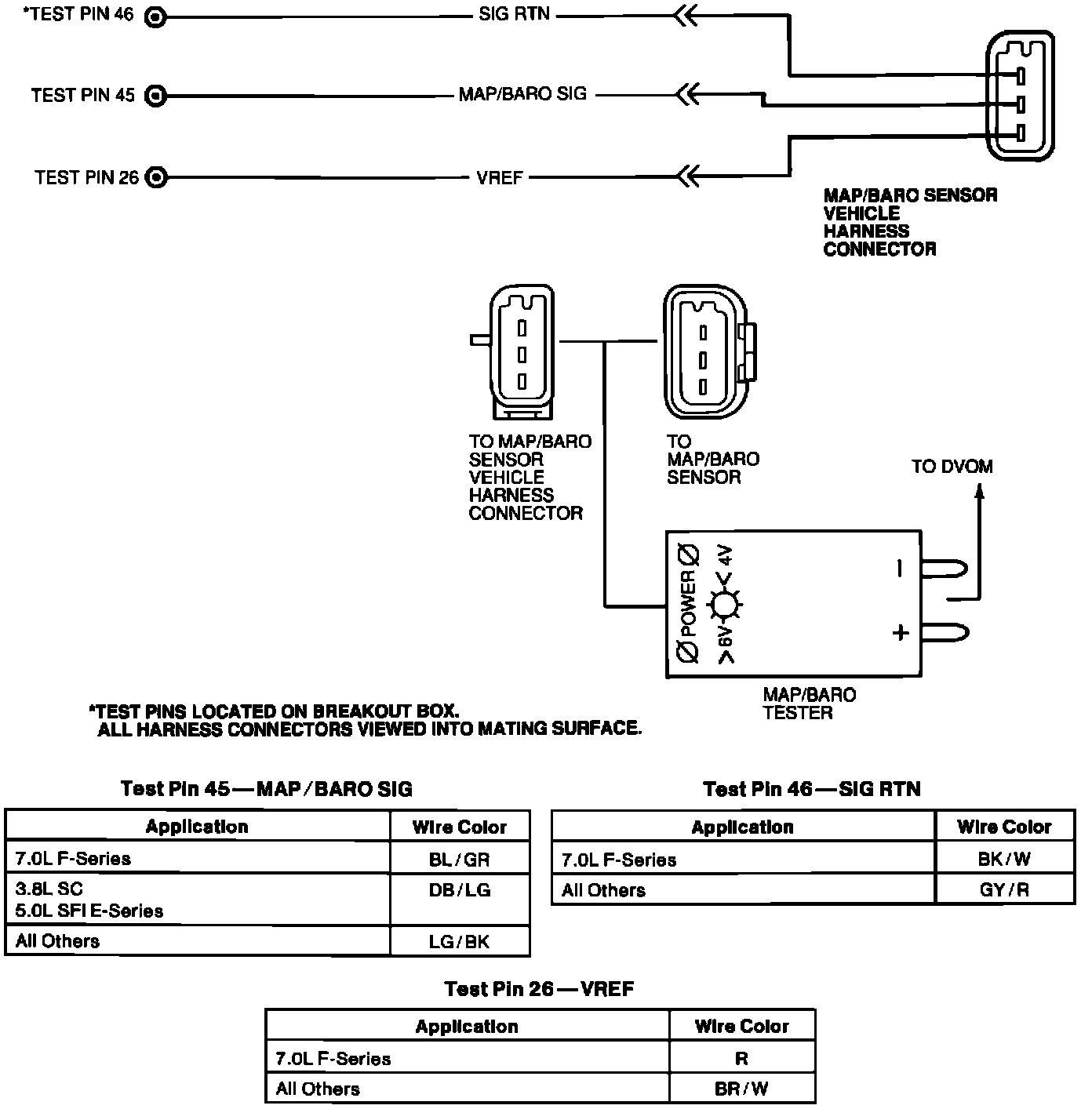

Schematic Diagram:
