DA - Temperature Sensor Test ACT and ECT
>>

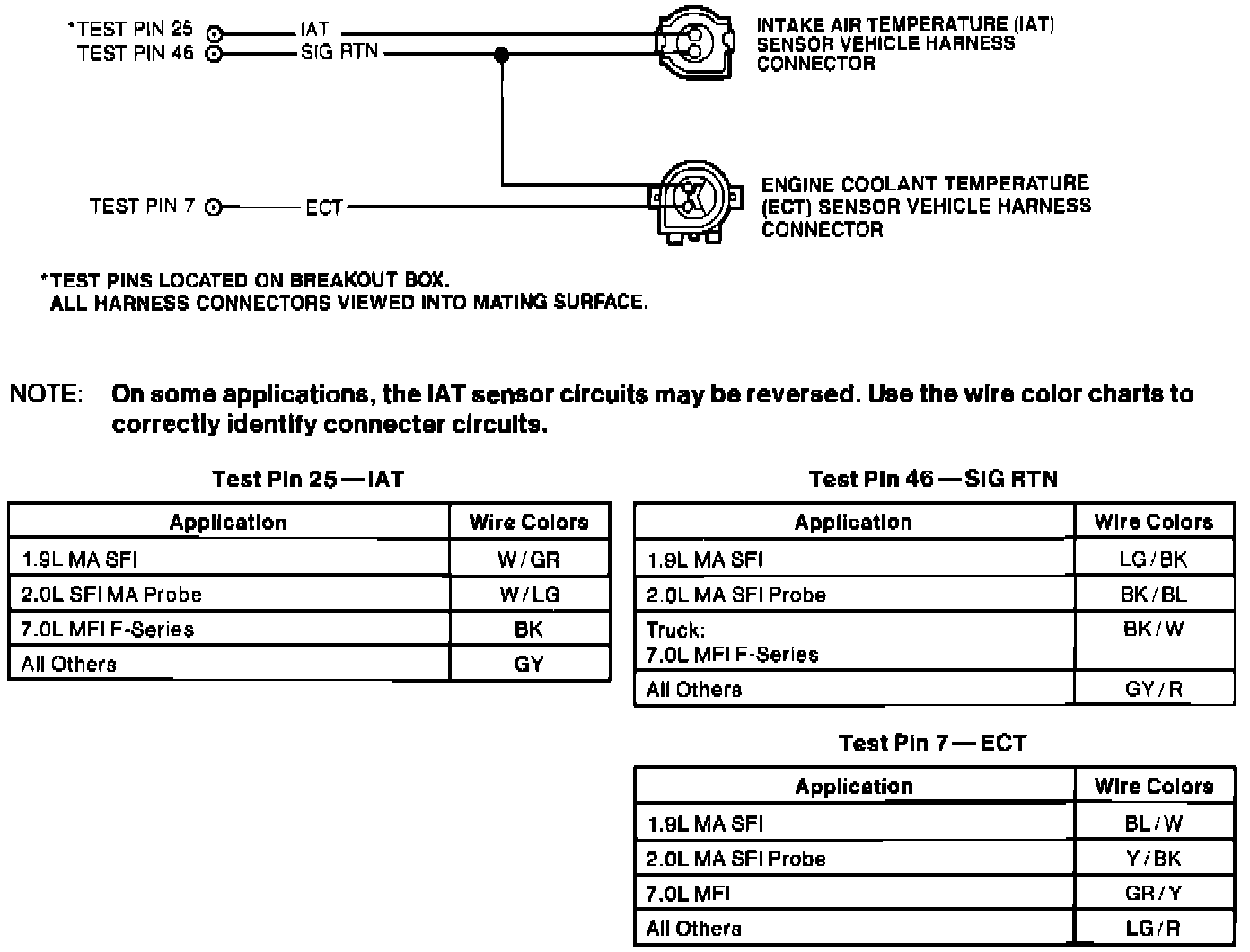

DA - Testing Schematic
DA - Testing Schematic
Schematic Diagram:
