Mercury
>>
1993
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution
>>
Interior Fuses
>>
Fuse 8
>>
Part 3 of 3
>>

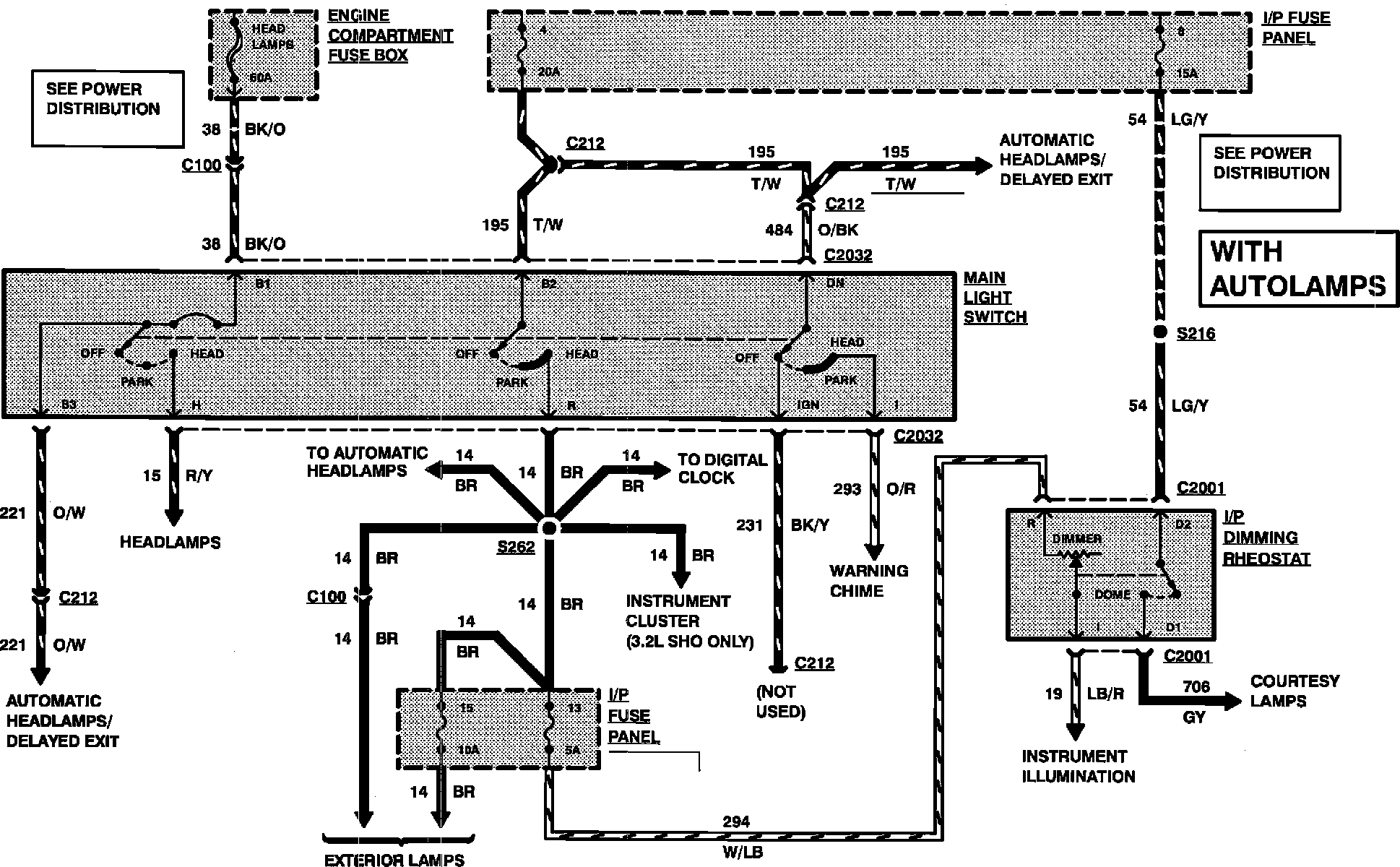

Others With Autolamps
Others With Autolamps
Power Distribution:
