Home >> Mercury >> 1993 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> Interior Fuses >> Fuse 6 >> Part 4 of 4 >> Except Police or Base Model

Except Police or Base Model

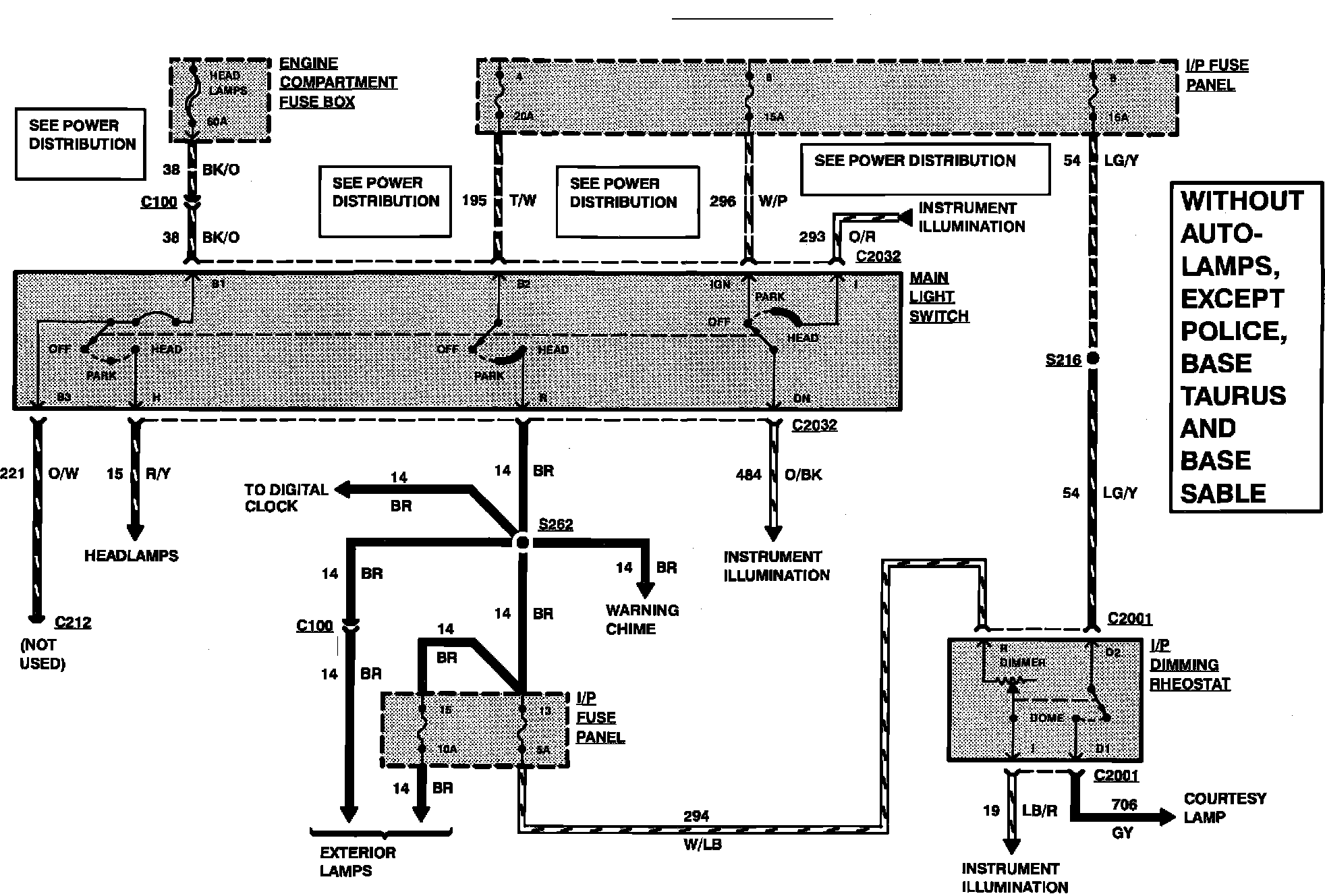

Power Distribution:
