Component Tests and General Diagnostics

NOTE: Check system fuse before proceeding.

Required Test Equipment
^ Equipment: 12-volt test lamp or ohmmeter

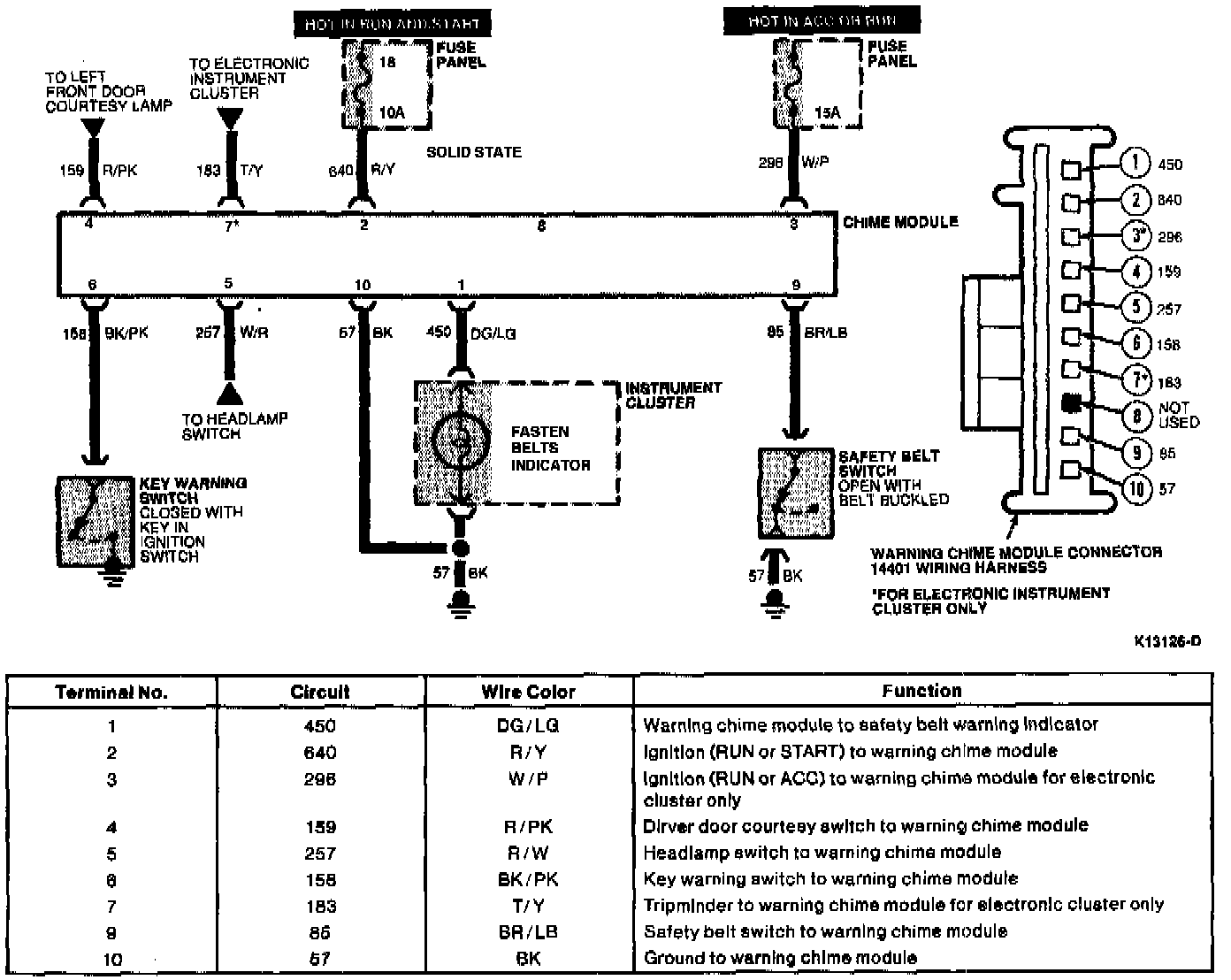

^ When necessary to trace and/or service the various circuits, refer to the vehicle wiring diagrams and diagnostic chart.
