Home >> Mercury >> 1993 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Electronic Climate Control >> Diagnosis When No Errors Found >> Chart 1

Chart 1

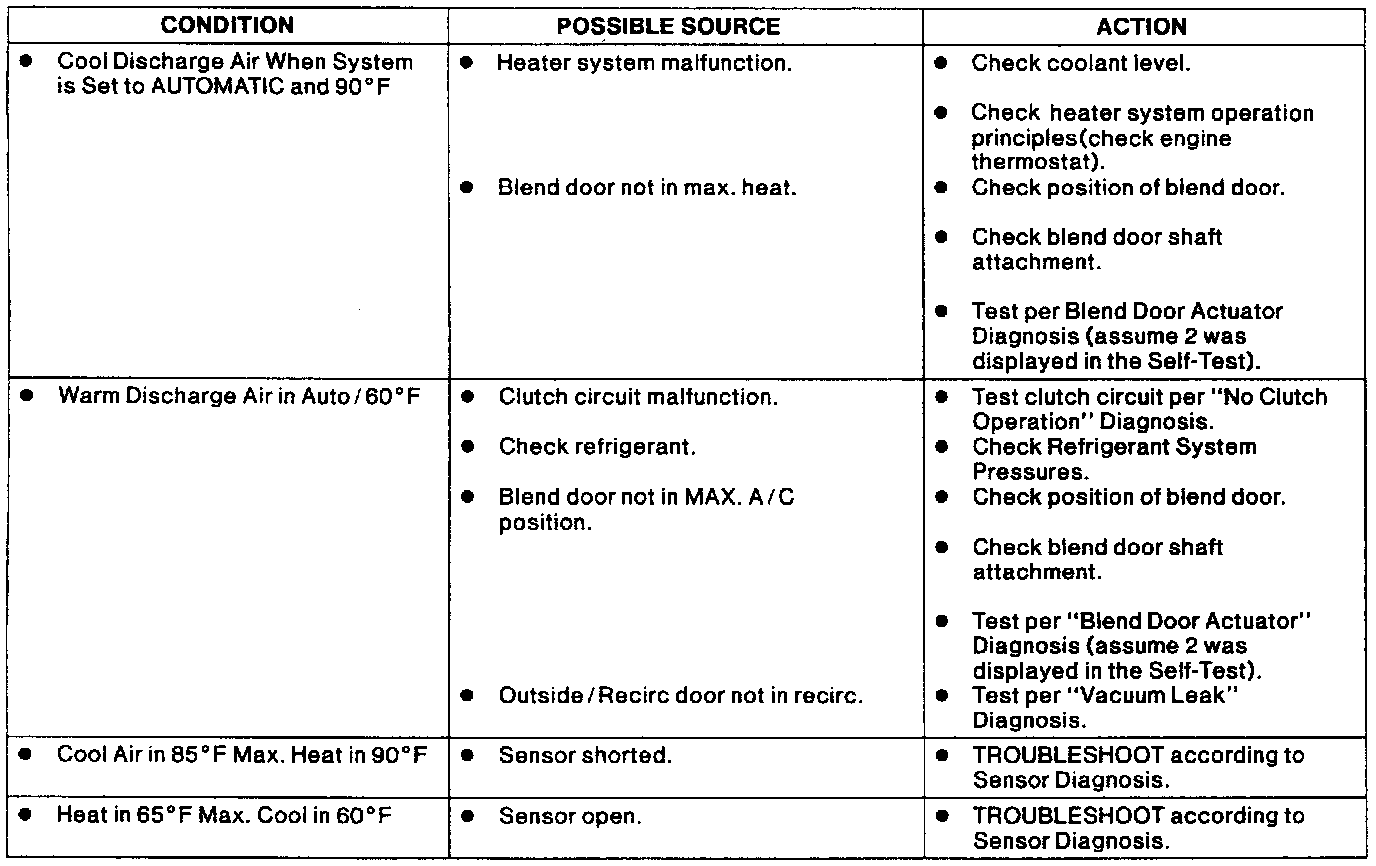

Diagnosis When Self-Test Indicates No Errors Found (Chart 1):
