Mercury
>>
1993
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Power Distribution
>>
Interior Fuses
>>
Fuse 14
Fuse 14

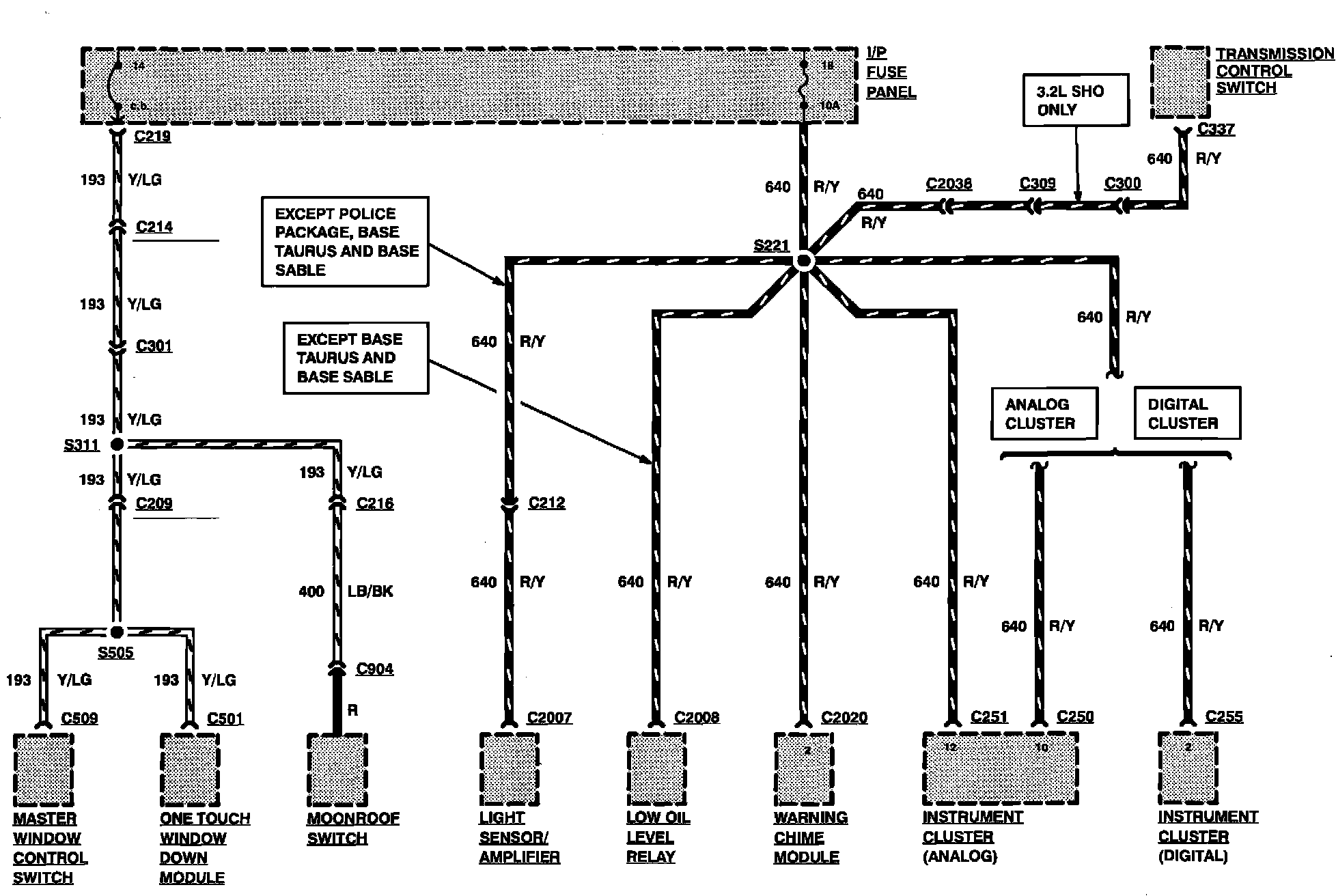

Power Distribution:
