Mercury
>>
1993
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Power Distribution
>>
Engine Compartment Fuses
>>

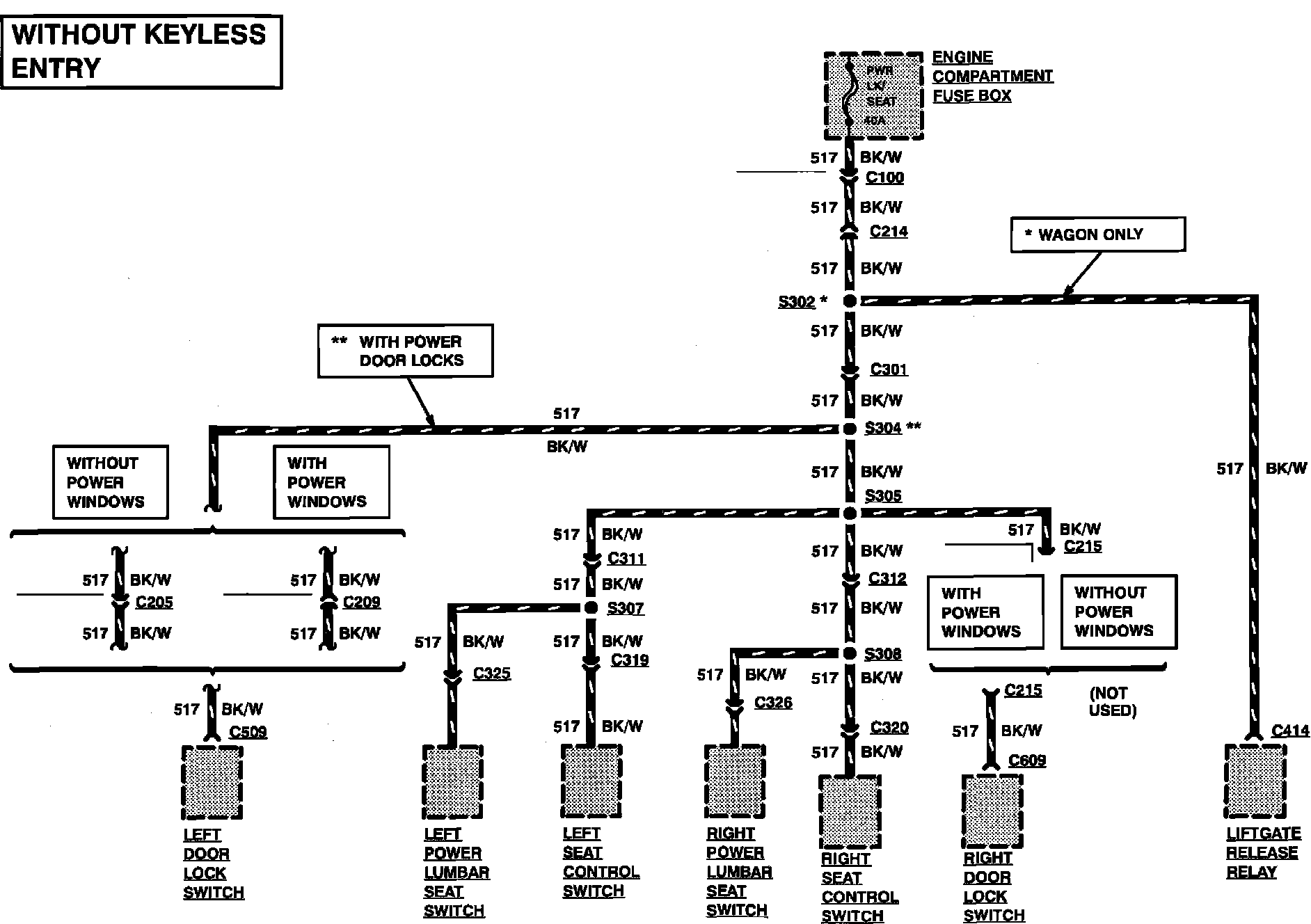

Fuse 10 - Power Accessories
>>
Less Keyless Entry
Less Keyless Entry
Power Distribution:
