Home >> Mercury >> 1993 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> System Diagram >> Without Automatic Delayed Exit >> All Except Base Models

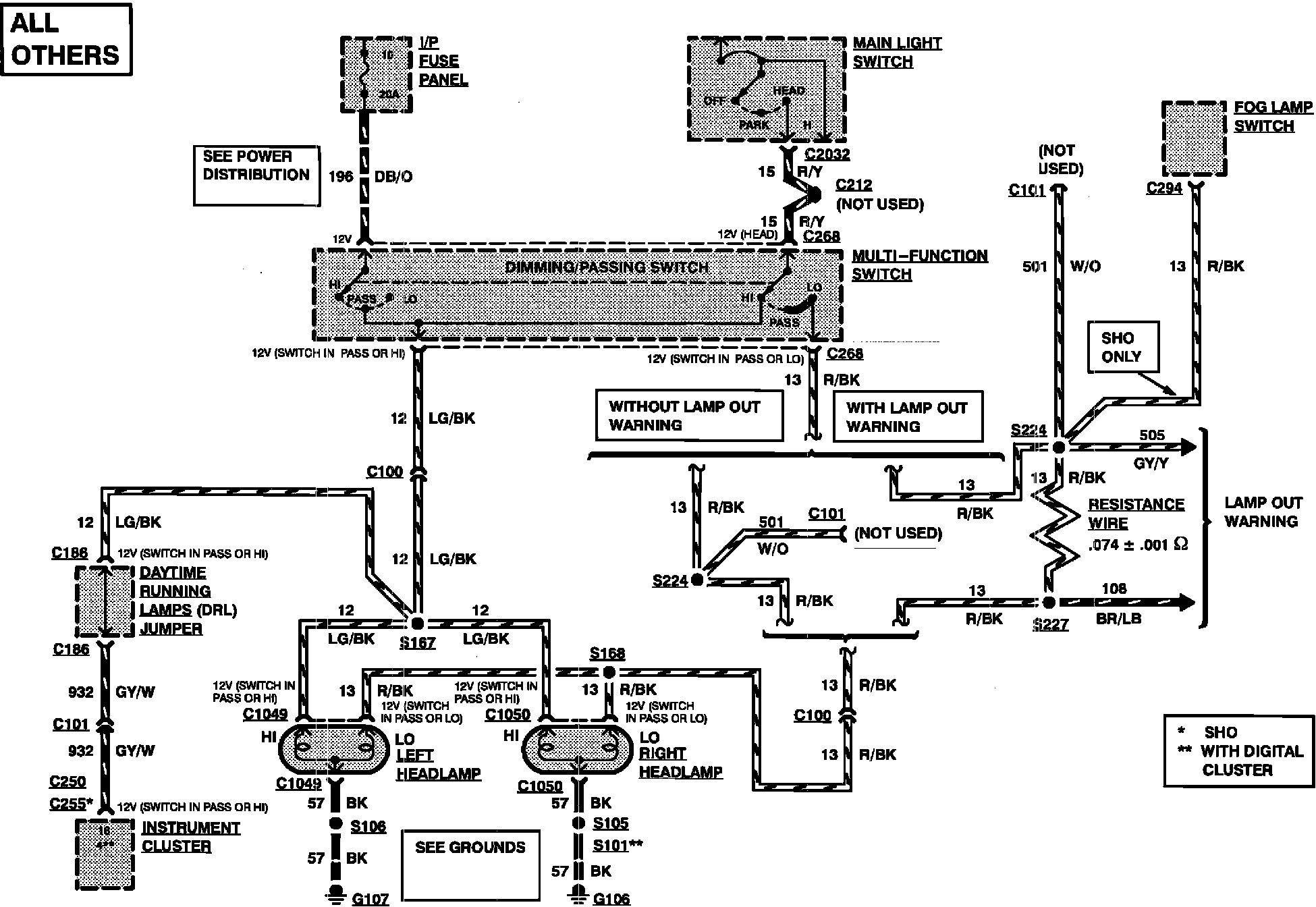

All Except Base Models

Headlamps:
