Curiosii for ever!: Car repair manuals for everyone.
Home >> Mercury >> 1993 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Power Brake Assist >> Vacuum Brake Booster >> Diagrams

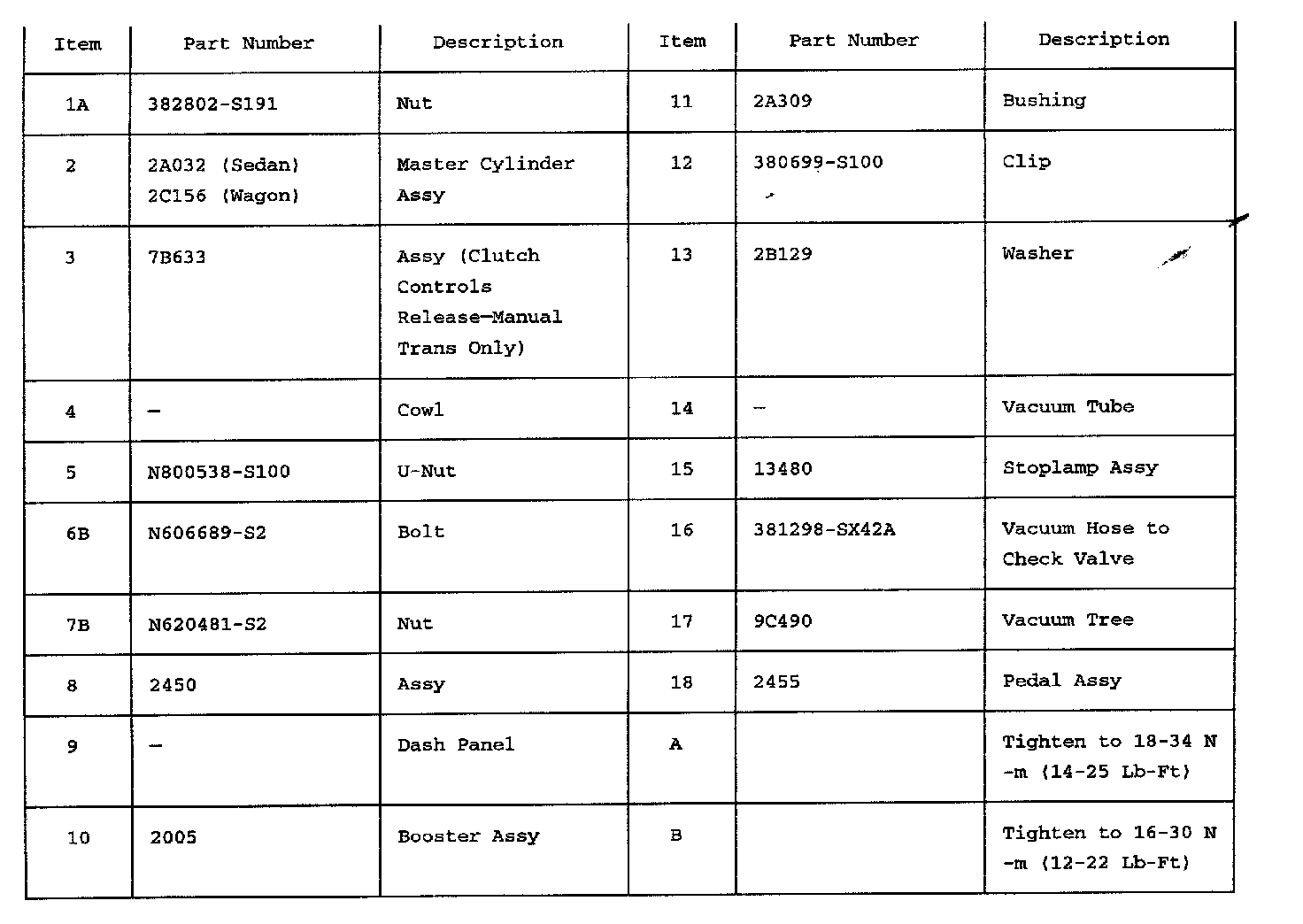

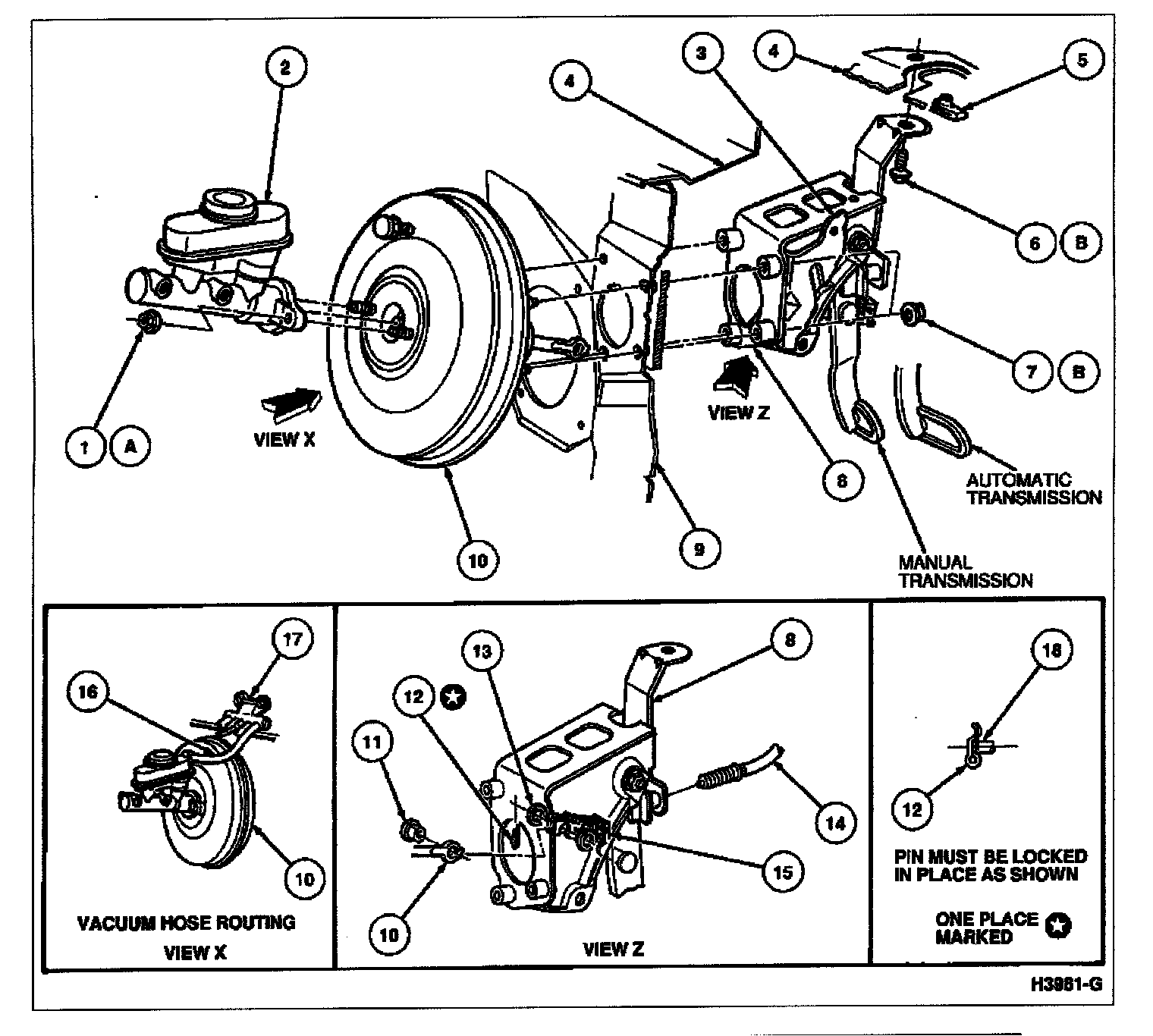

Vacuum Brake Booster: Diagrams
