ML - Self-Test Output/Malfunction Indicator Lamp
>>

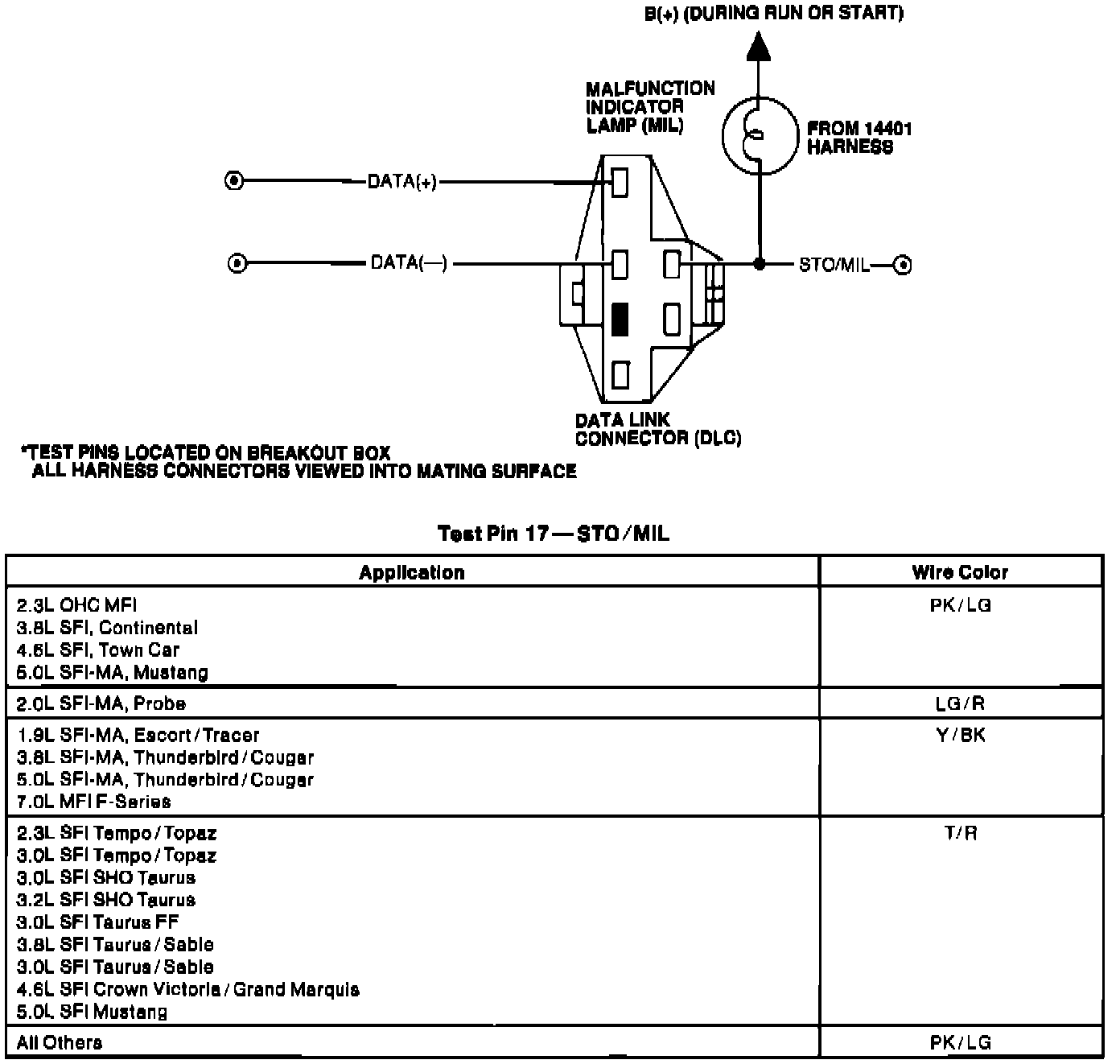

ML - Testing Schematic
ML - Testing Schematic

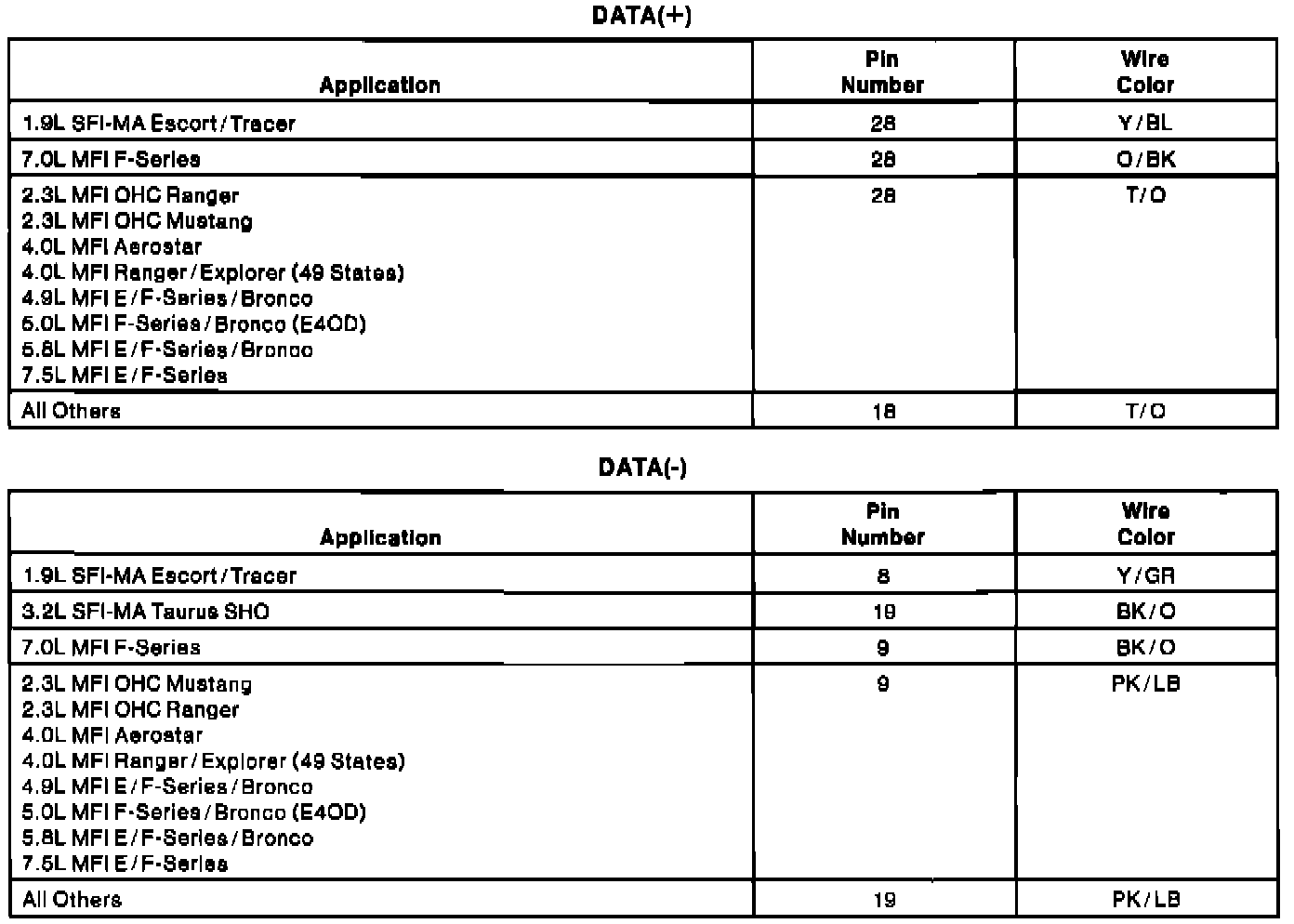

Schematic Diagram:
Schematic Diagram:
