KD - Canister Purge (CANP) Solenoid
>>
KD - Testing Schematic
KD - Testing Schematic

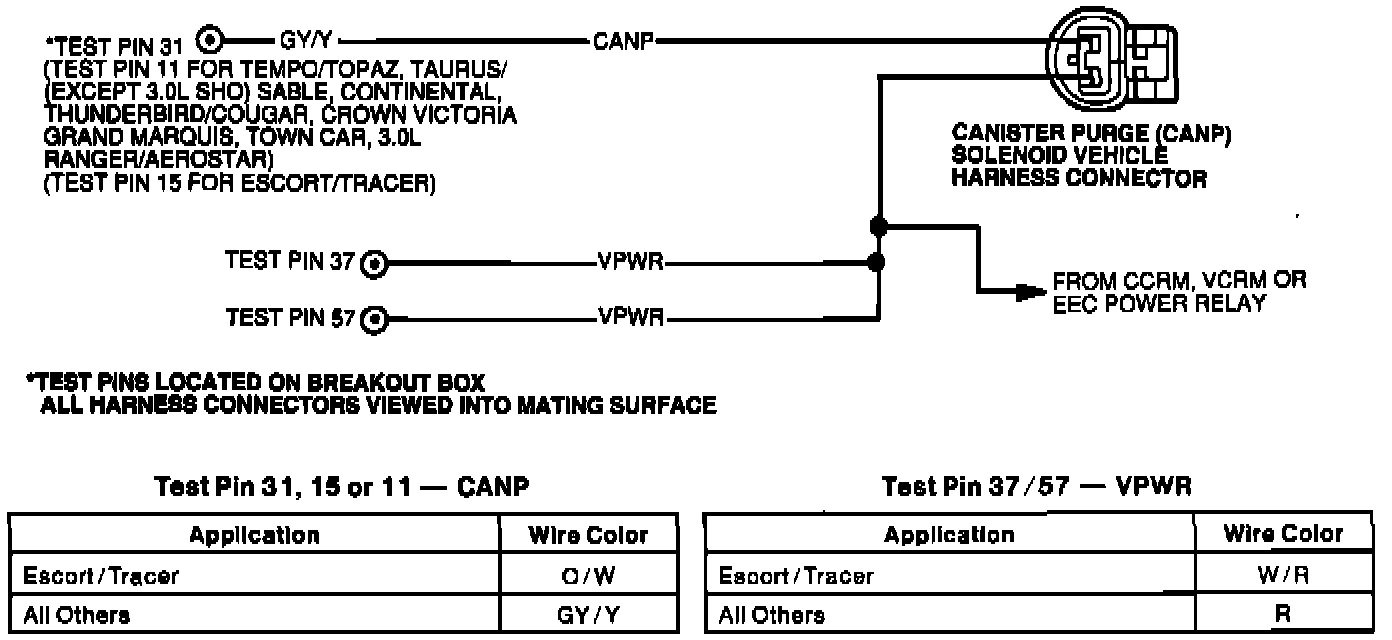

Schematic Diagram:
