Home
>>
Mercury
>>
1993
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Grounds
>>

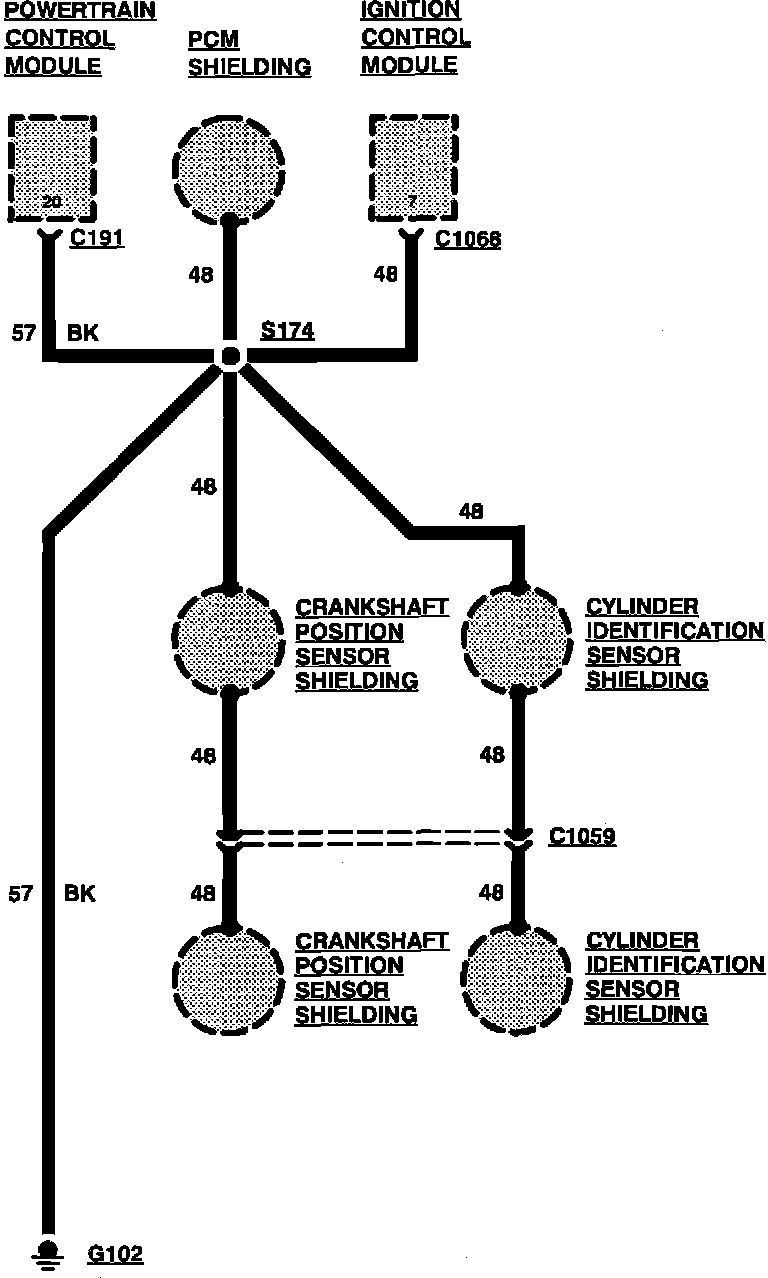

G102
G102
Ground 102:
