Electronic Instrument Cluster- Testing Revision

Article No.
93-19B-8

09/29/93

^ SERVICE MANUAL - 1992 - SECTION 13-01A - INSTRUMENT CLUSTER-ELECTRONIC - SCHEMATICS AND PINPOINT TESTS REVISED

^ SERVICE MANUAL - 1993 - SECTION 13-01A - INSTRUMENT CLUSTER-ELECTRONIC - SCHEMATICS AND PINPOINT TESTS REVISED

FORD:
1992-93 CROWN VICTORIA

LINCOLN-MERCURY:
1992-93 GRAND MARQUIS, TOWN CAR

ISSUE:

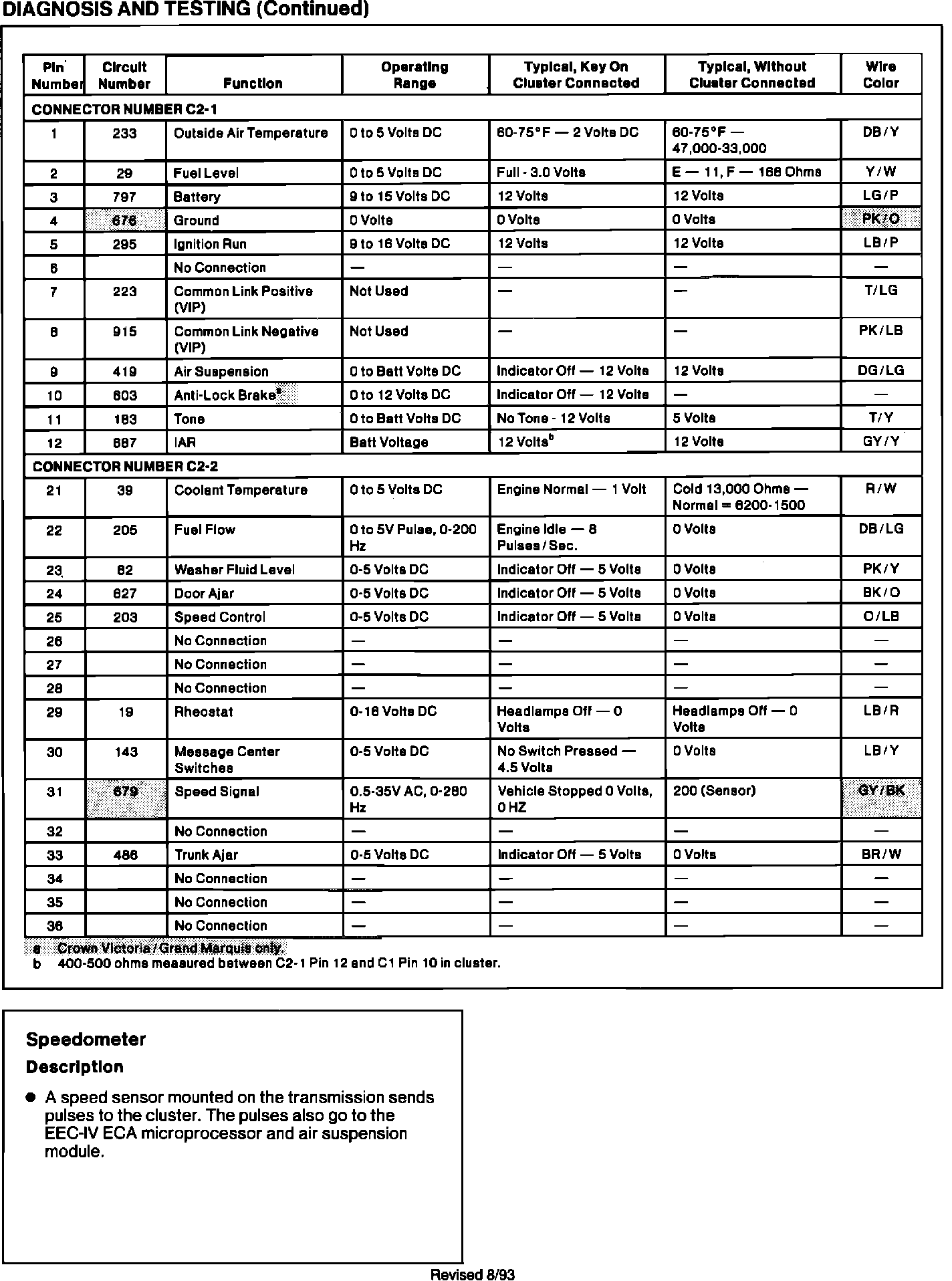

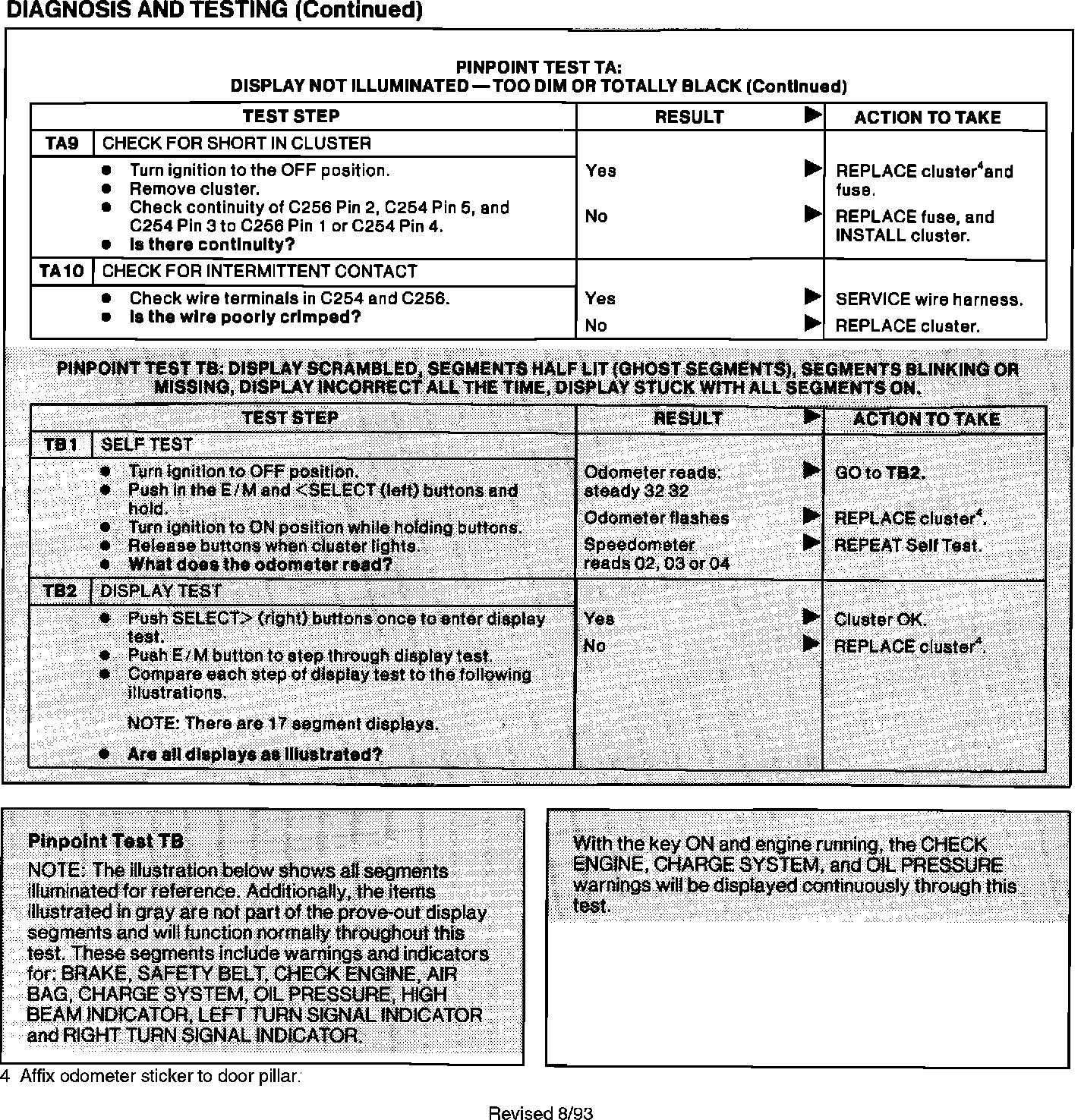

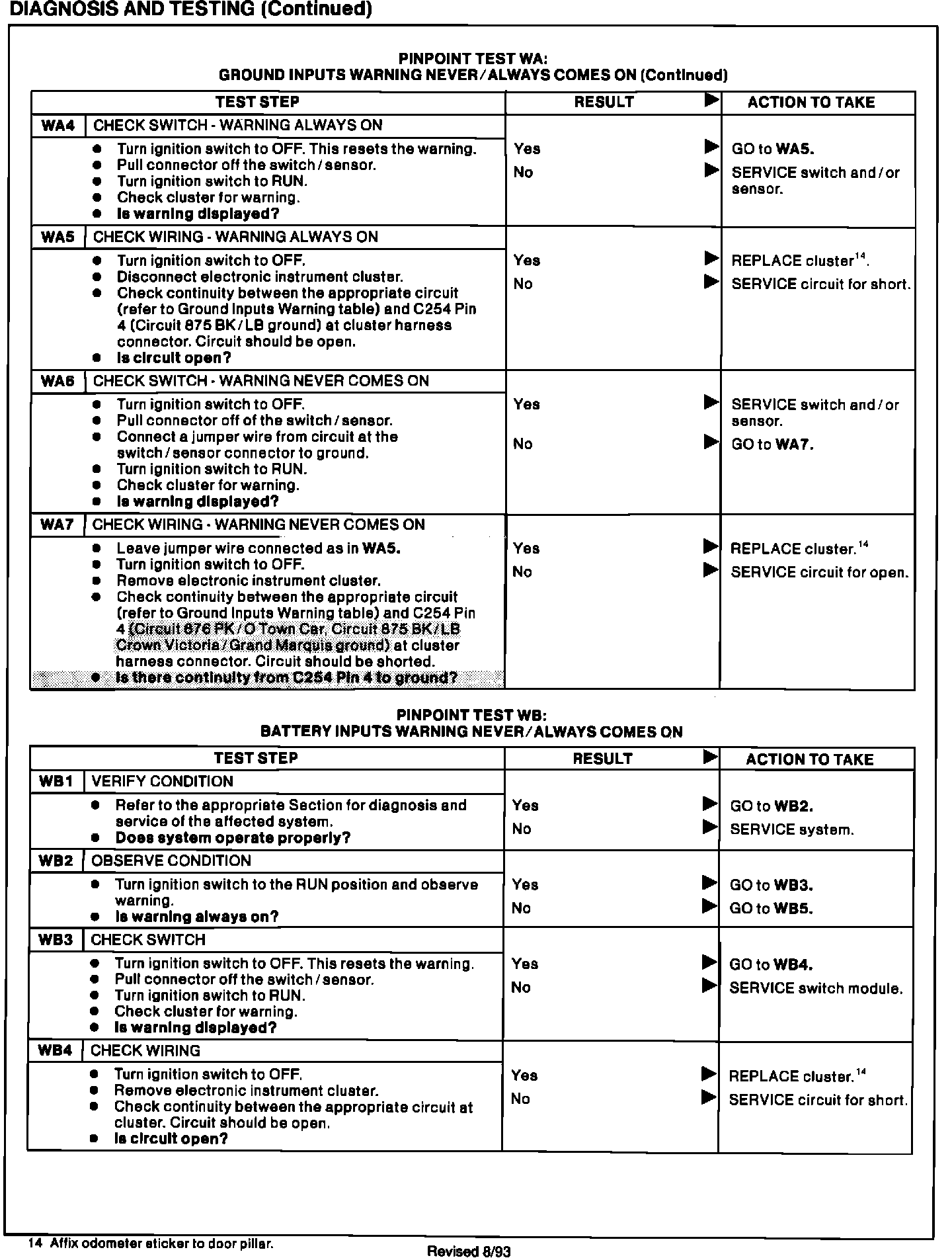

Instrument Cluster-Electronic, Section 13-01A, requires revision of schematics and pinpoint tests. The 1992 and 1993 Town Car/Crown Victoria/Grand Marquis Service Manuals are affected on the following pages:

1992 TC/CV/GM Service Manual:











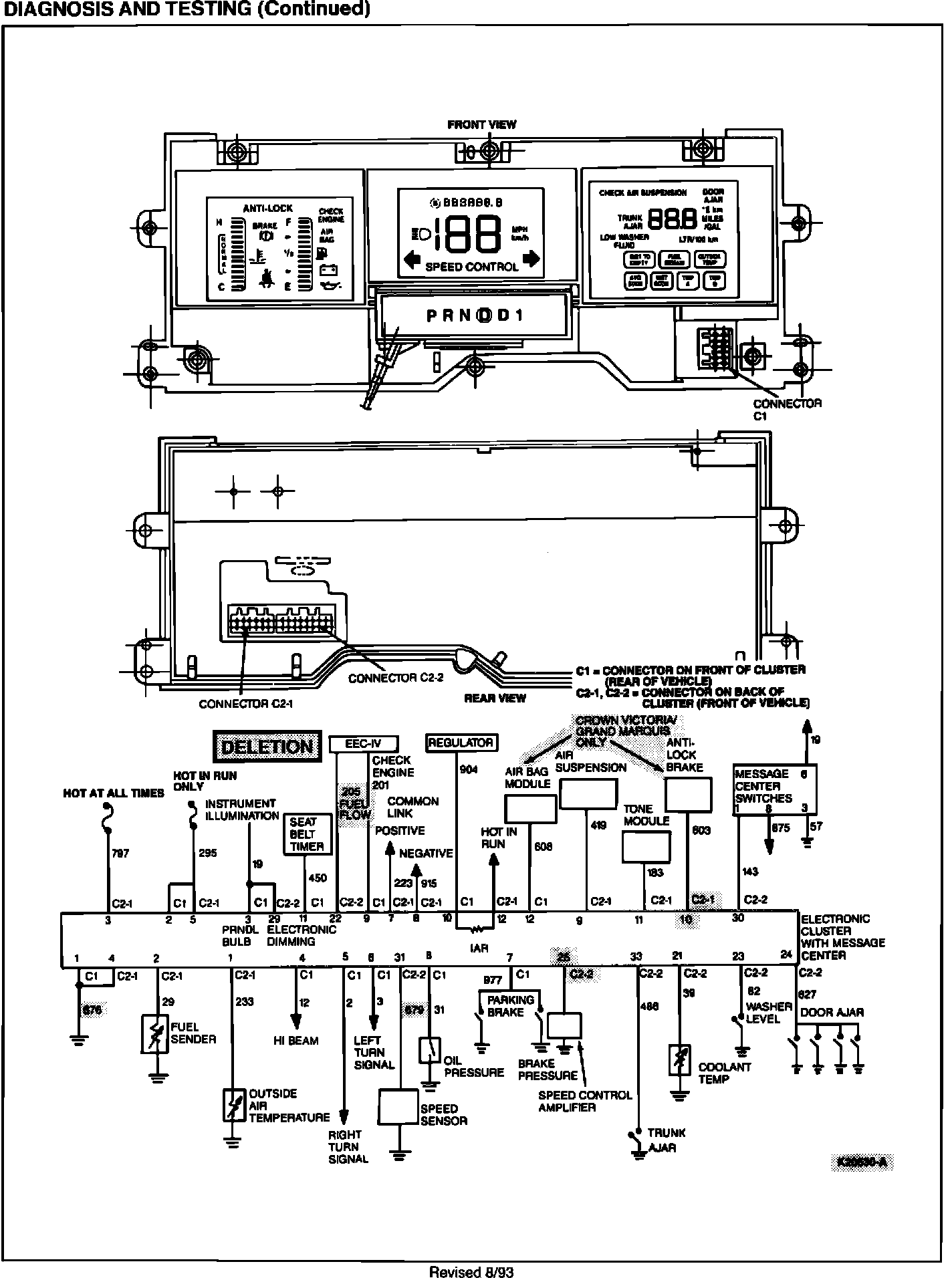

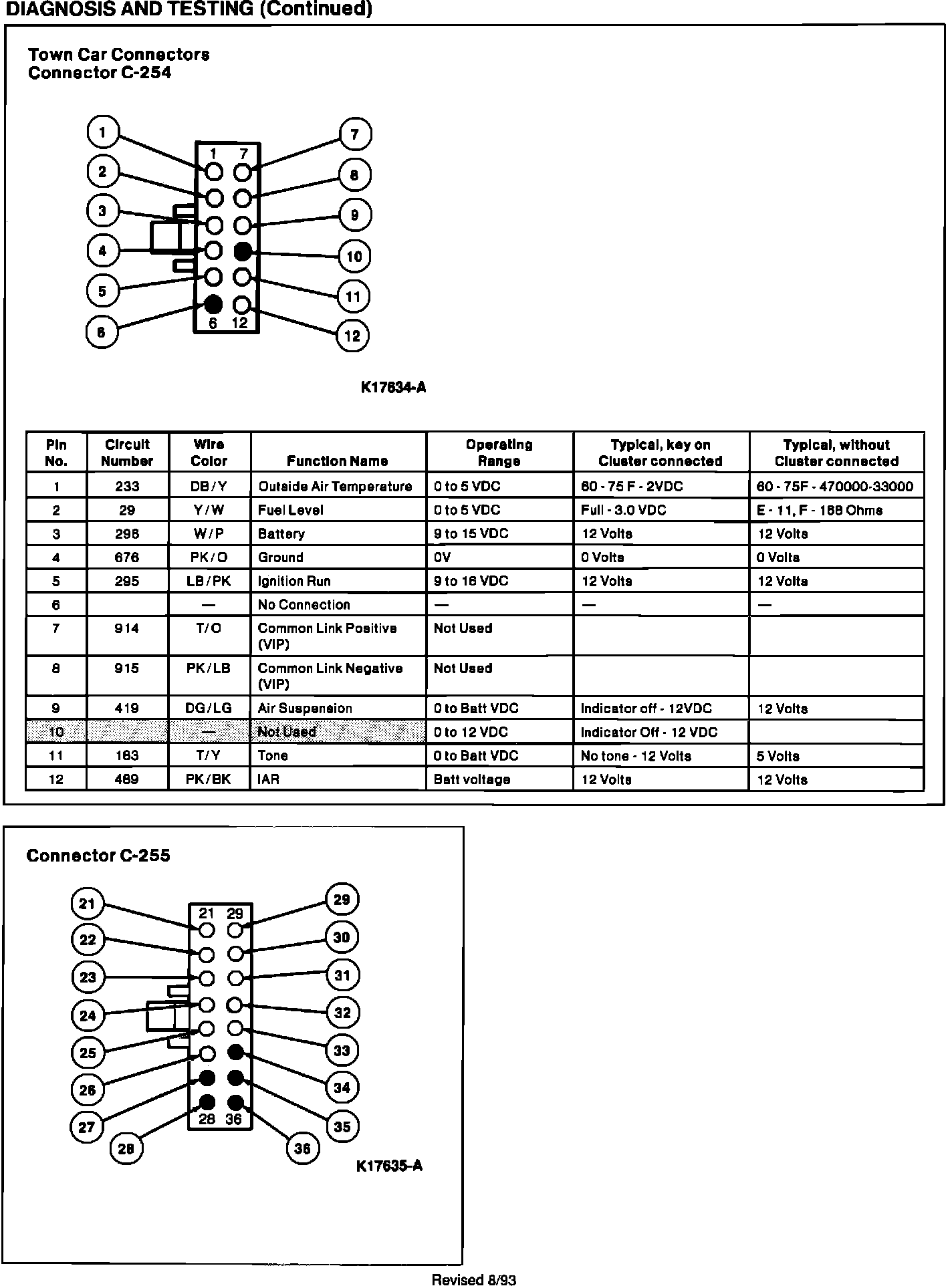

^ 13-01A-8 through 10 (Revised)

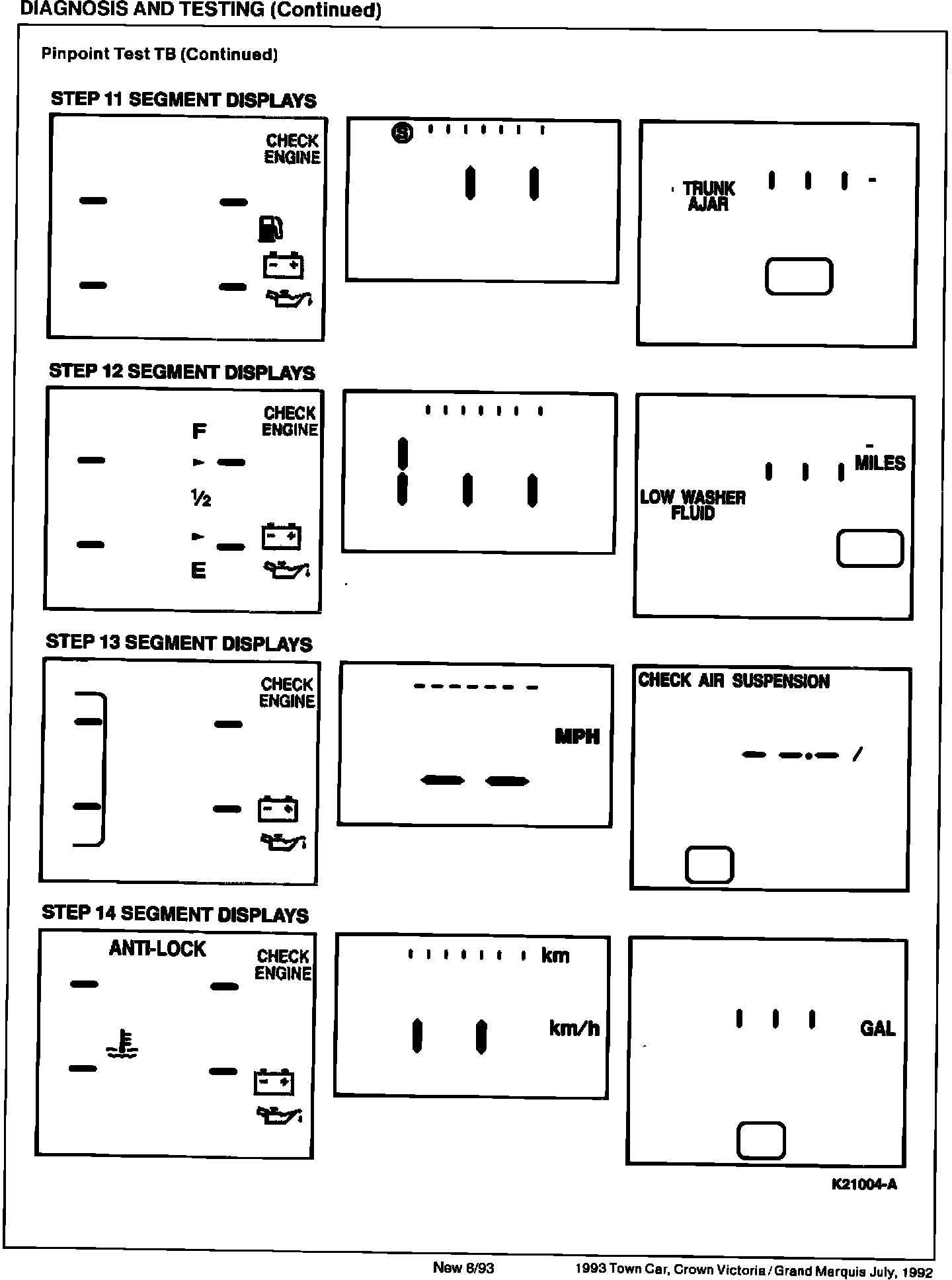

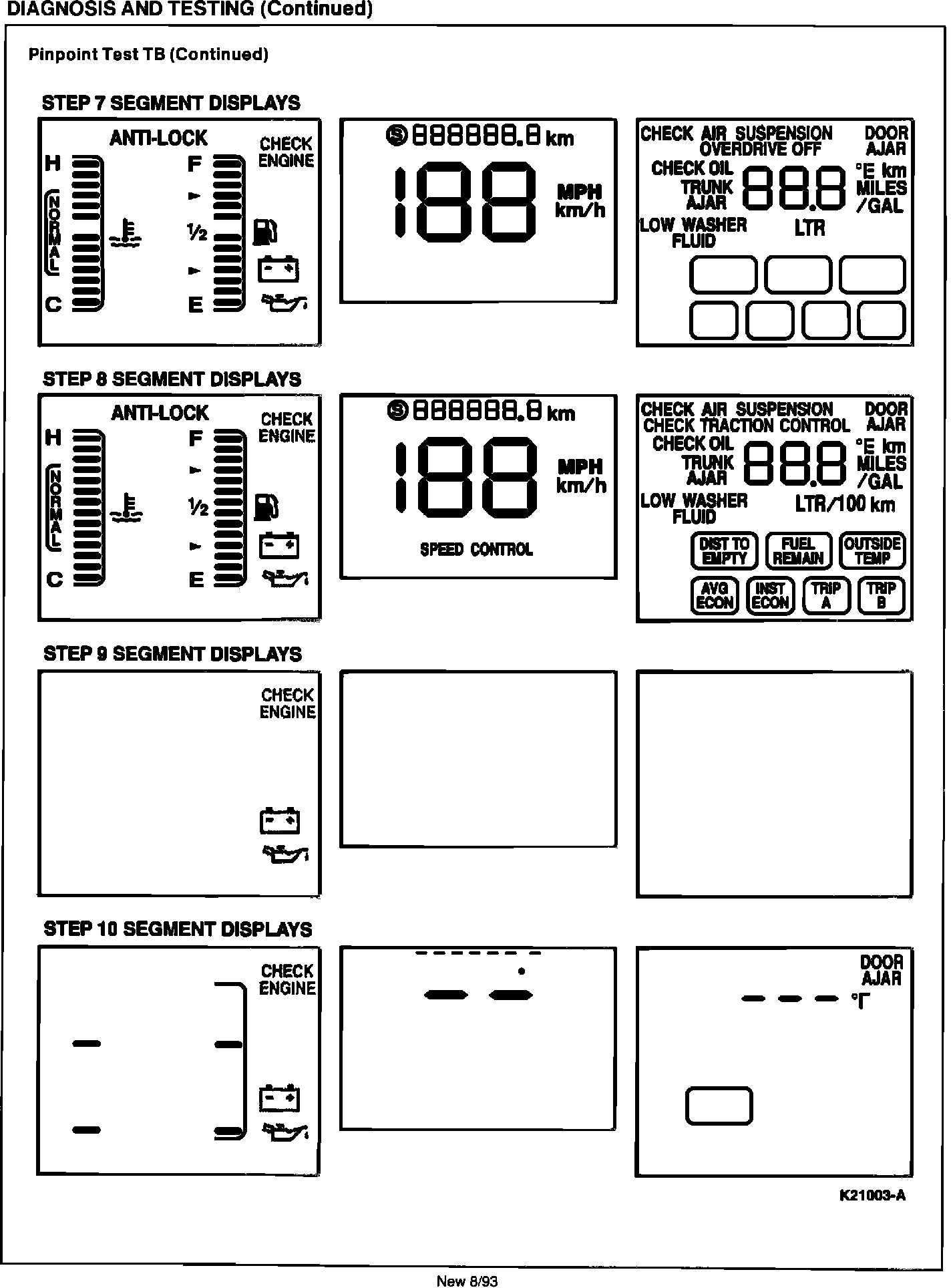

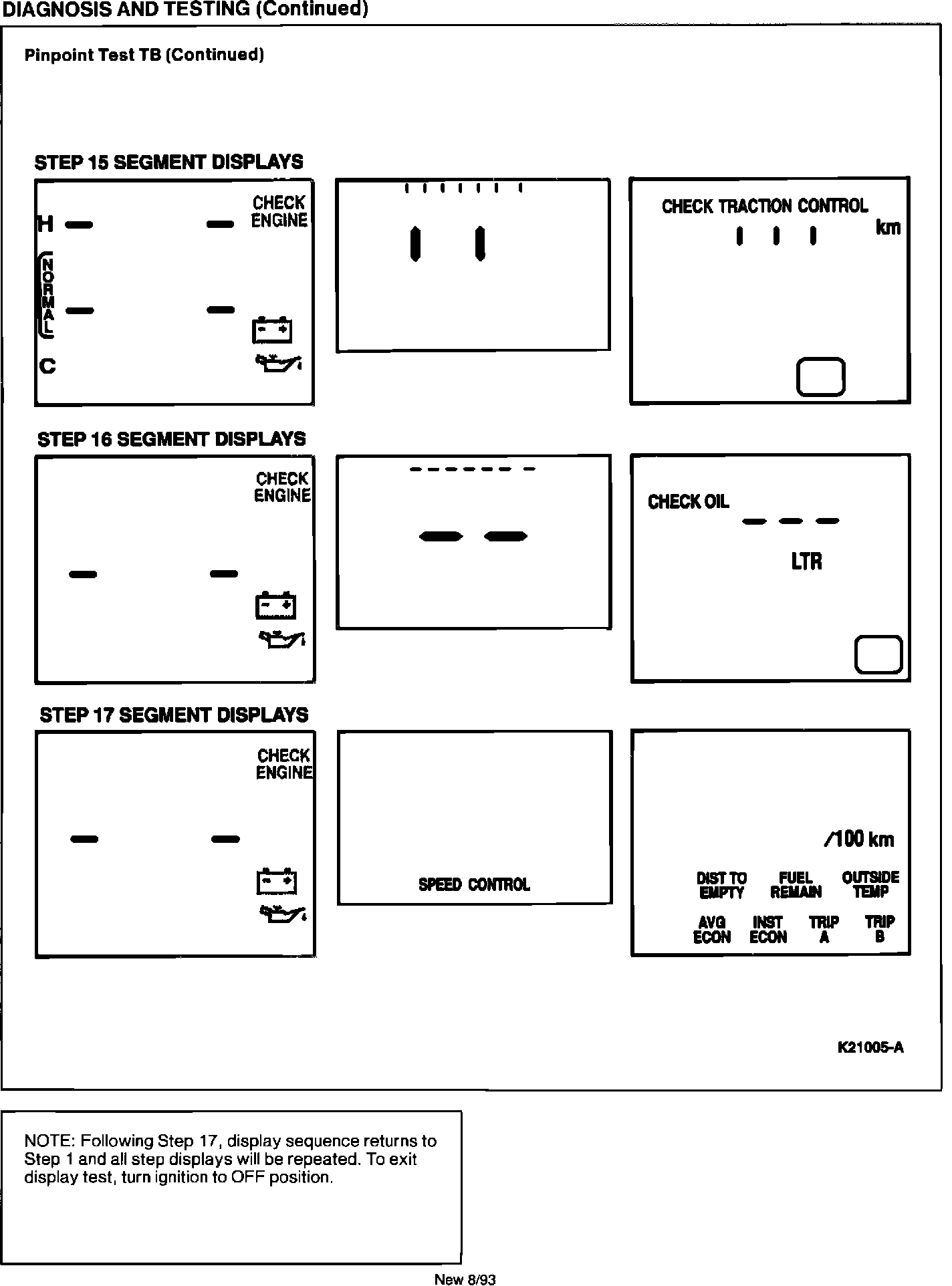

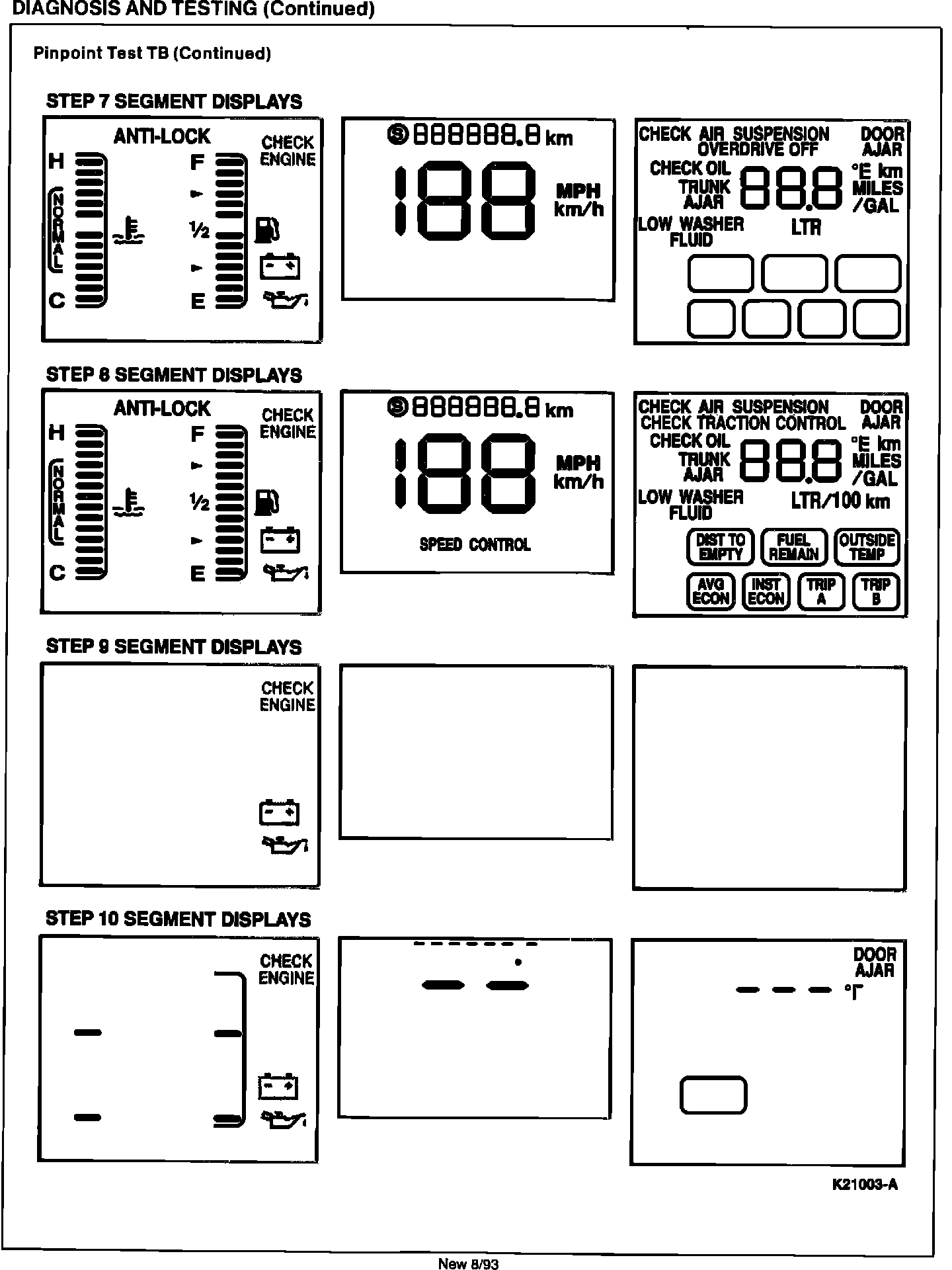

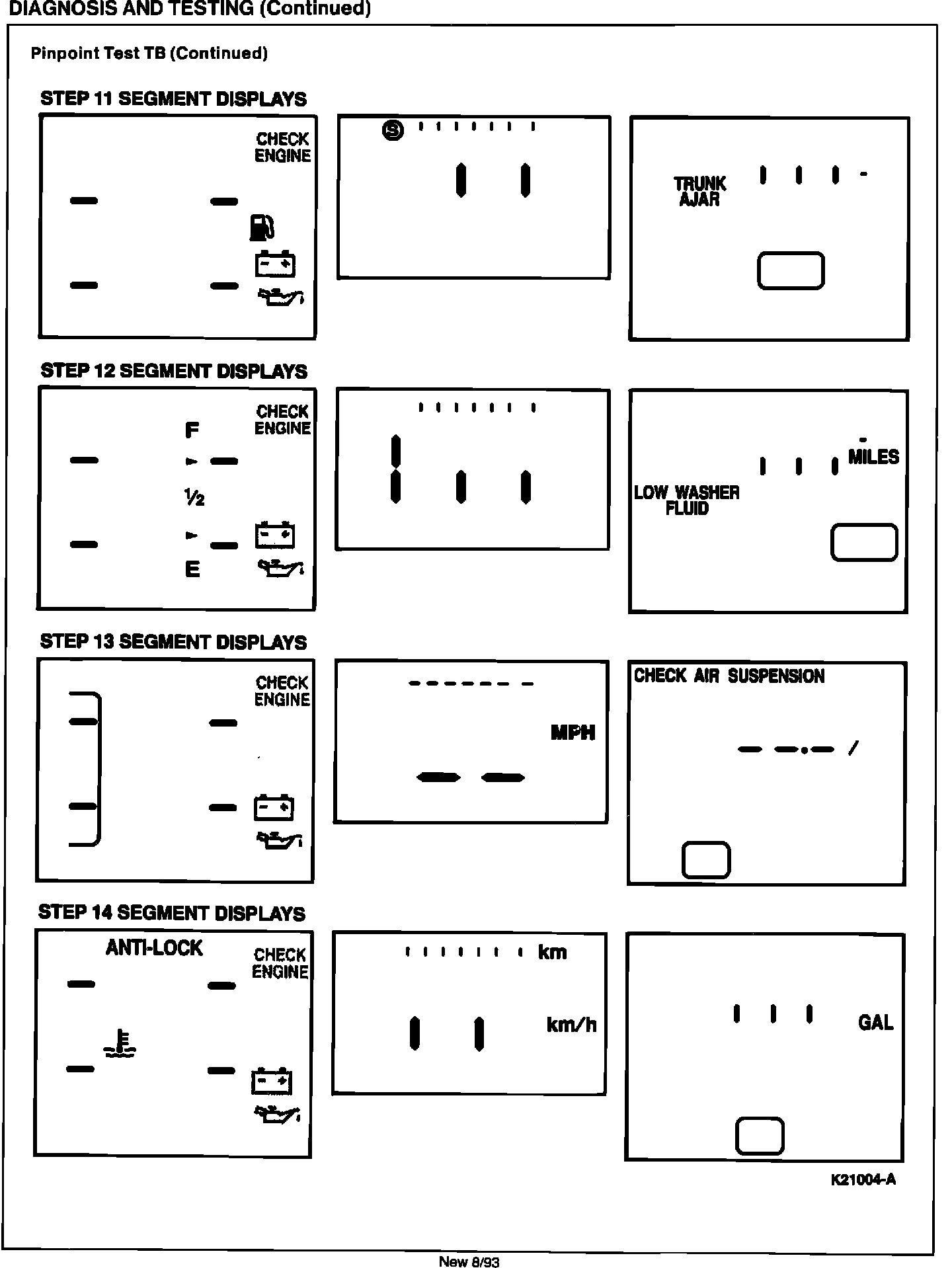

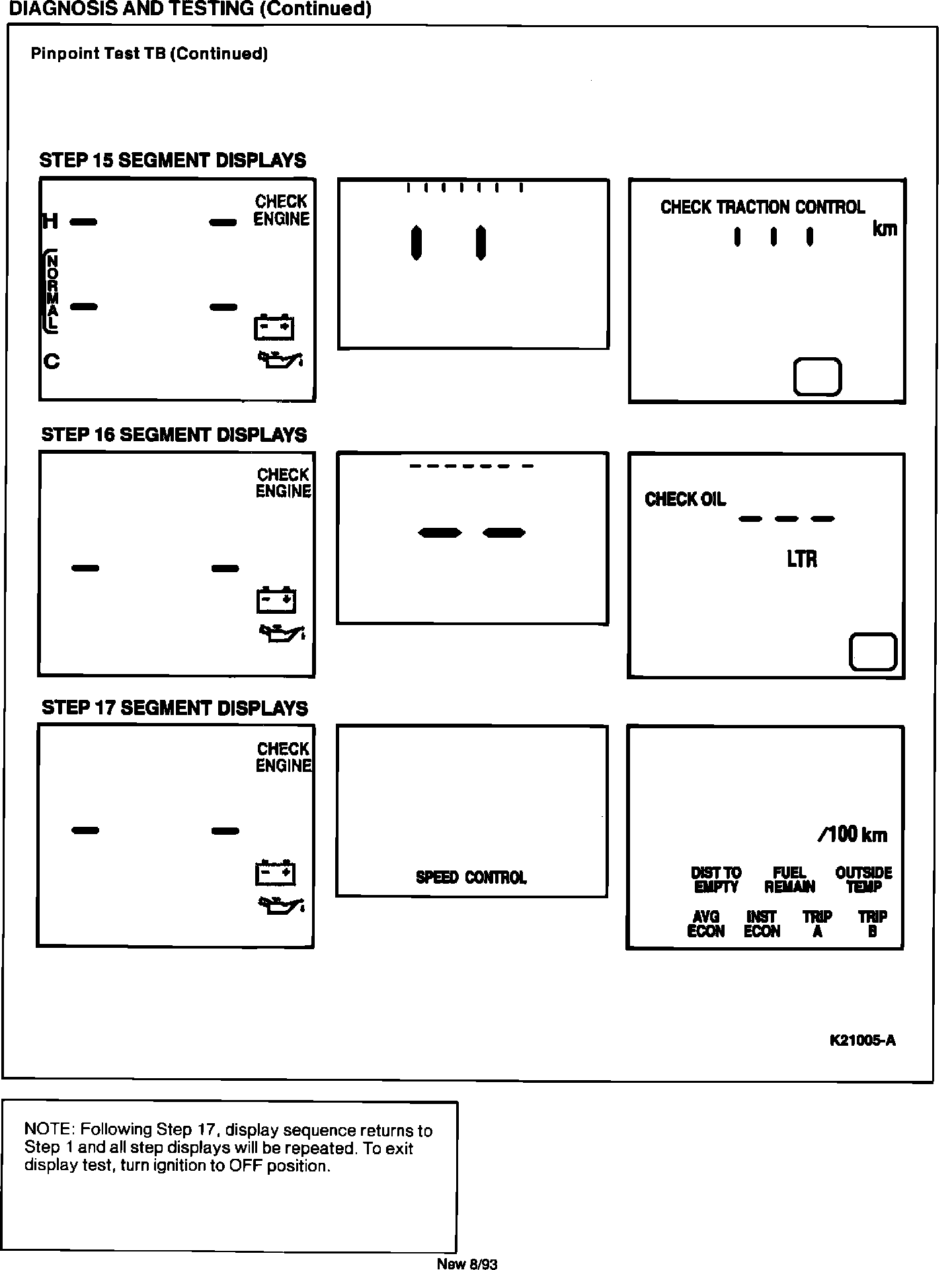

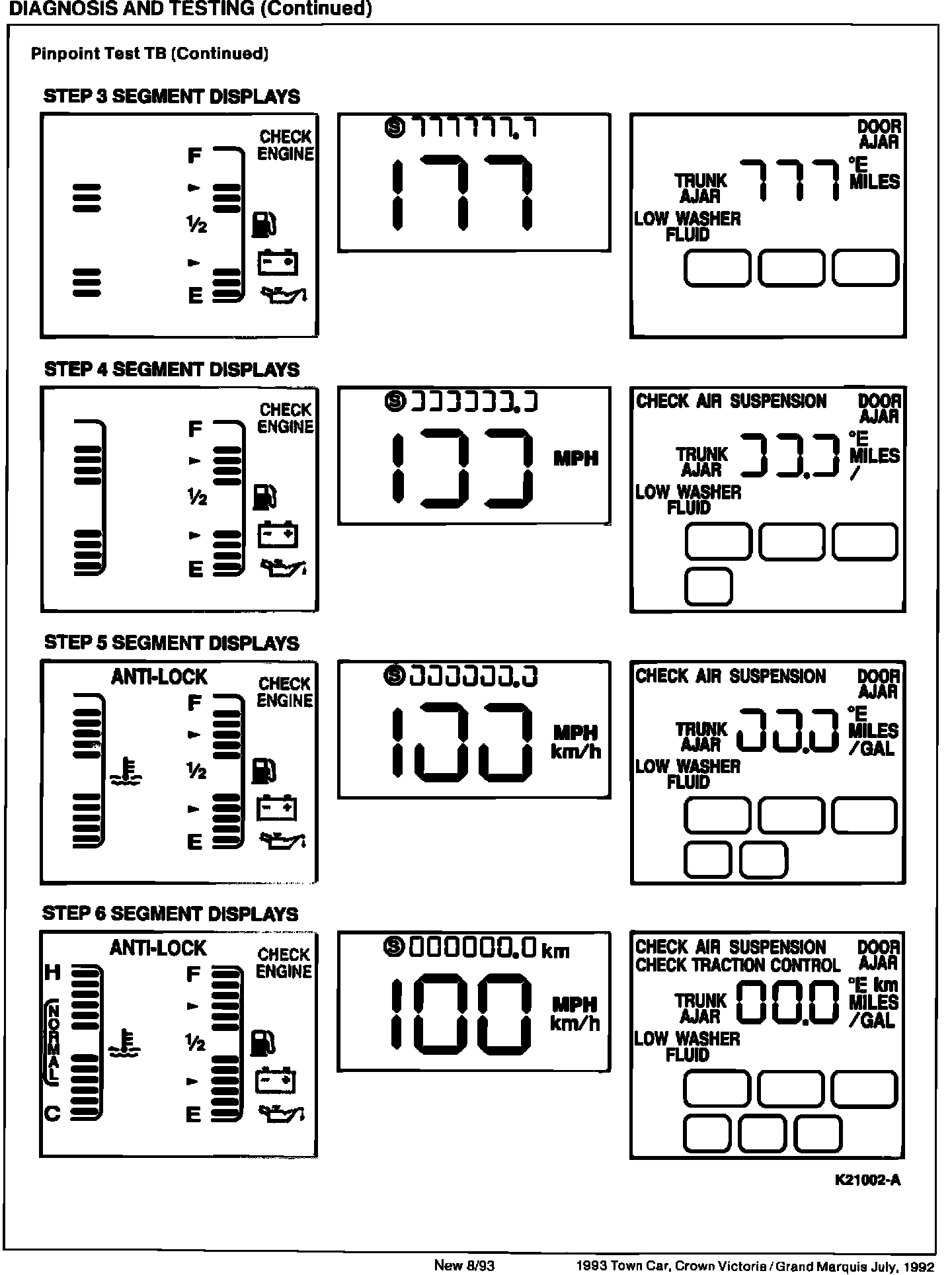

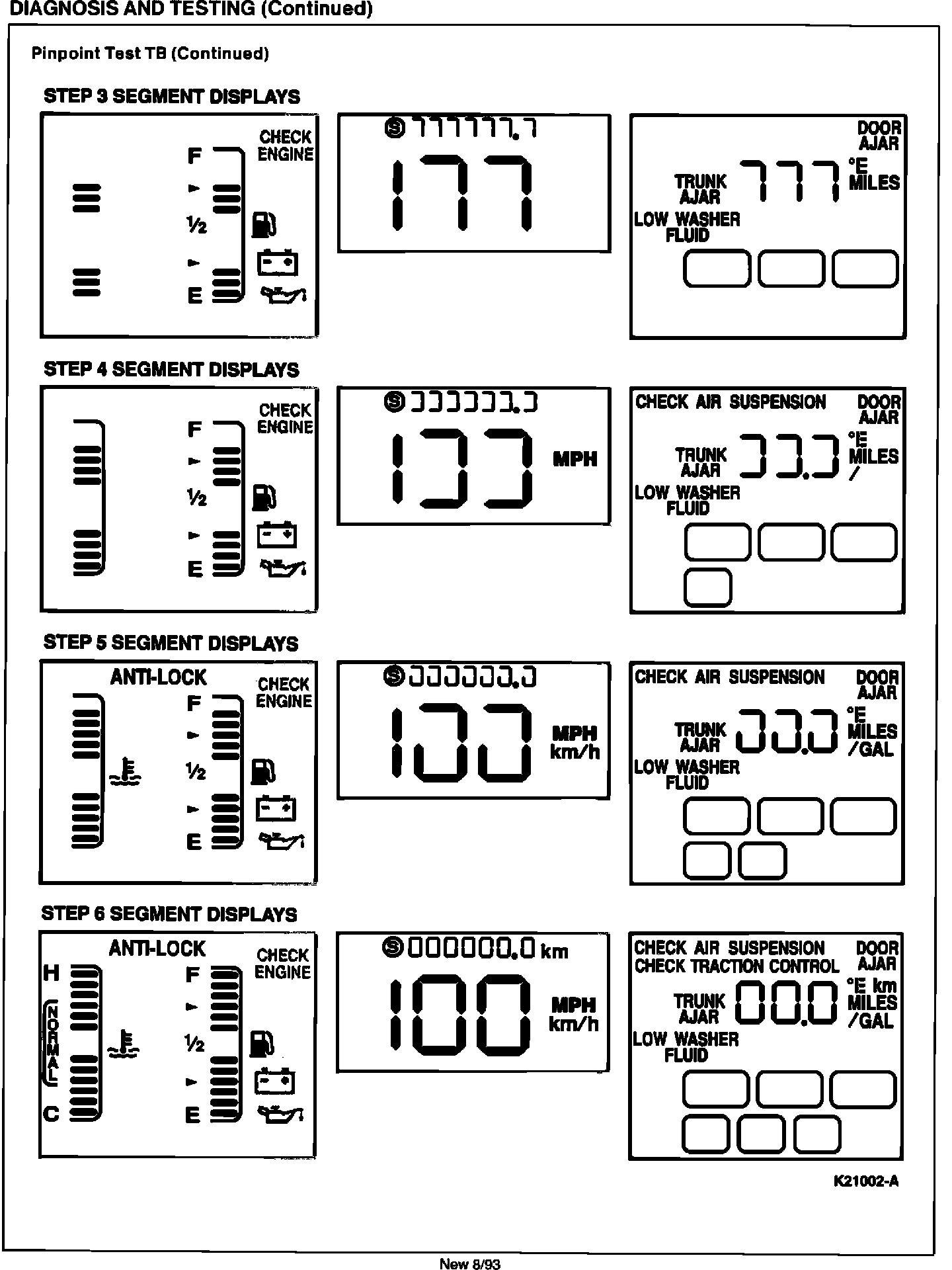

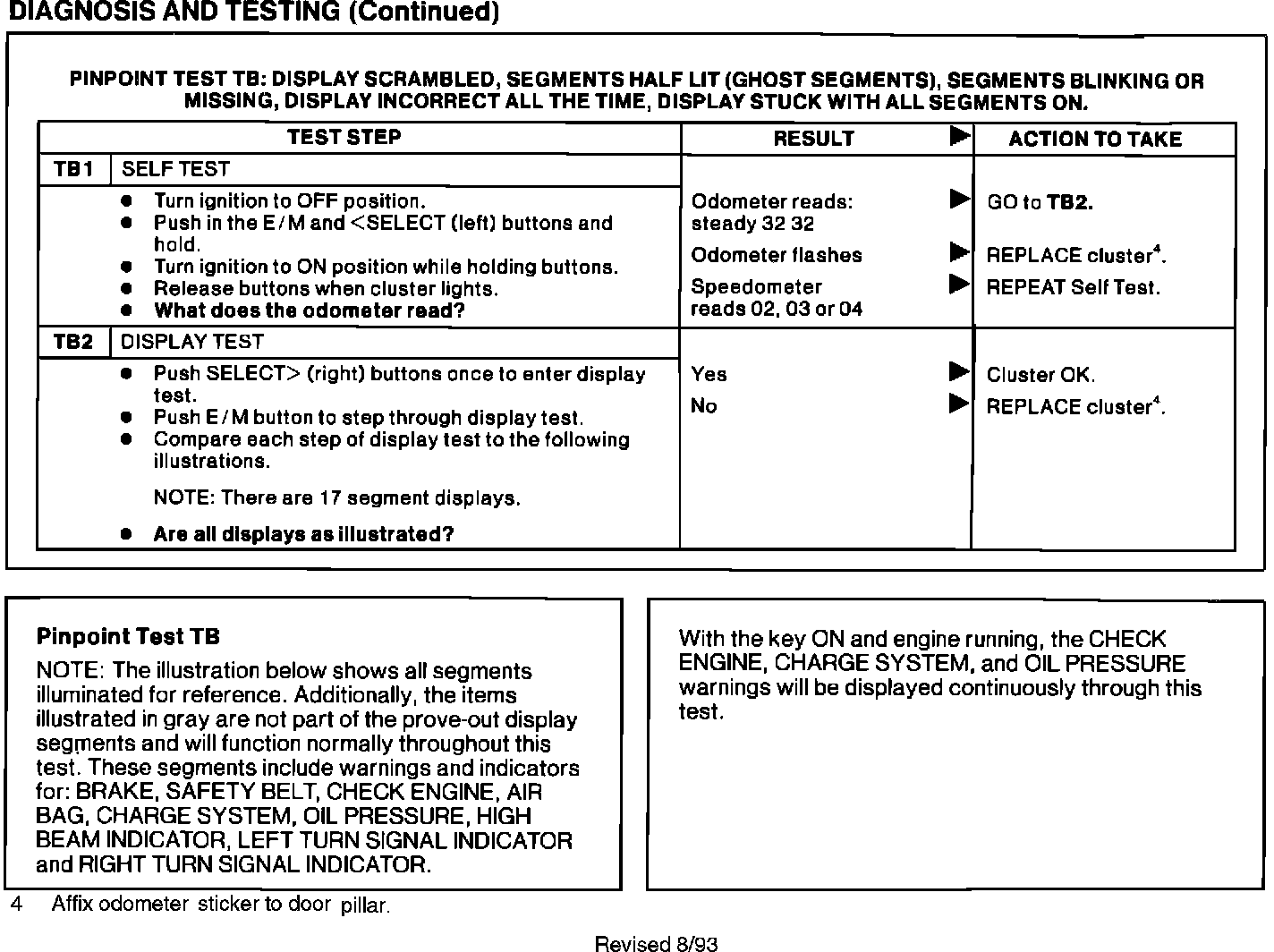

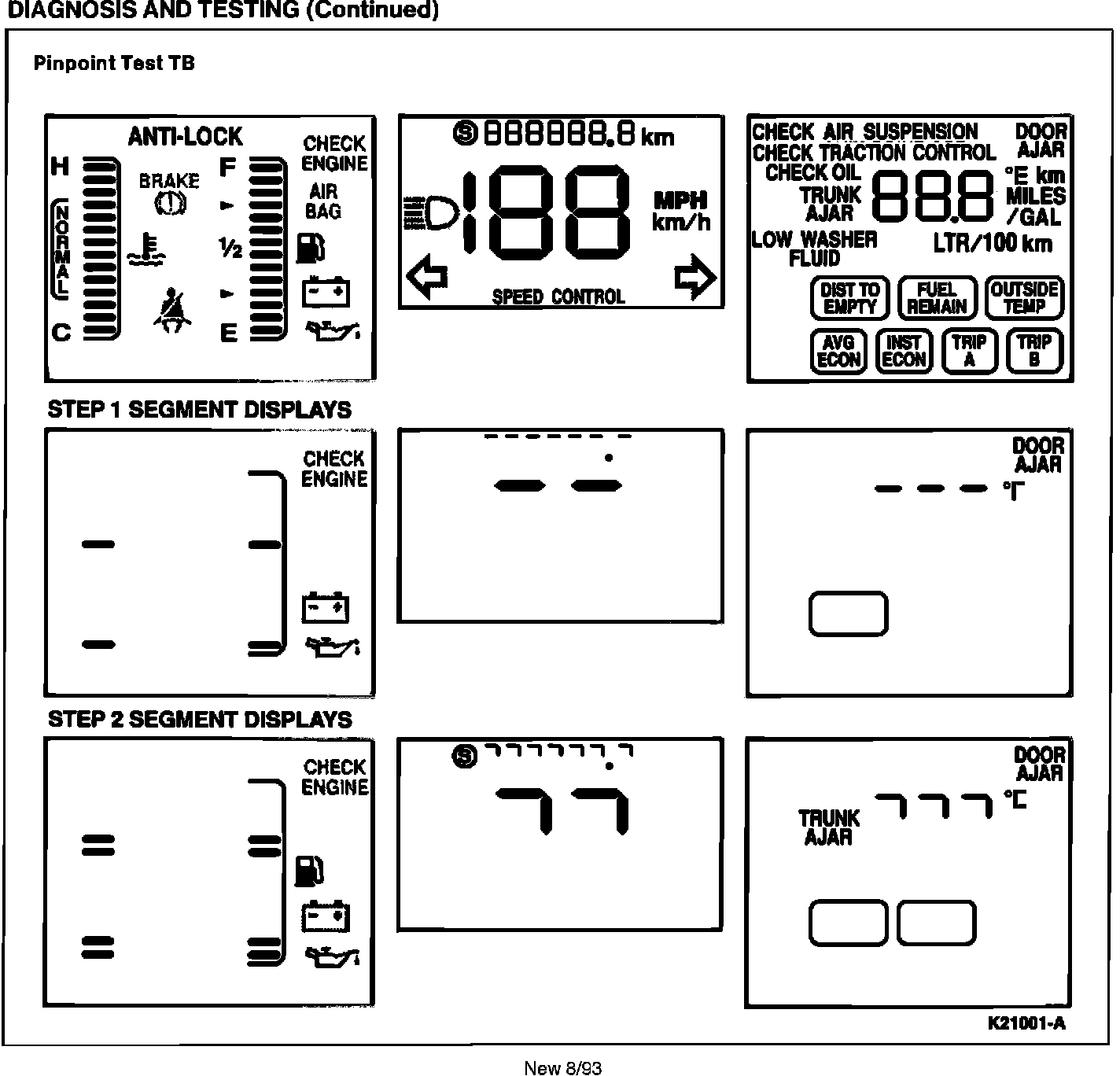

^ 13-01A-29 (Revised), and 13-01A-29A through 29E (New)














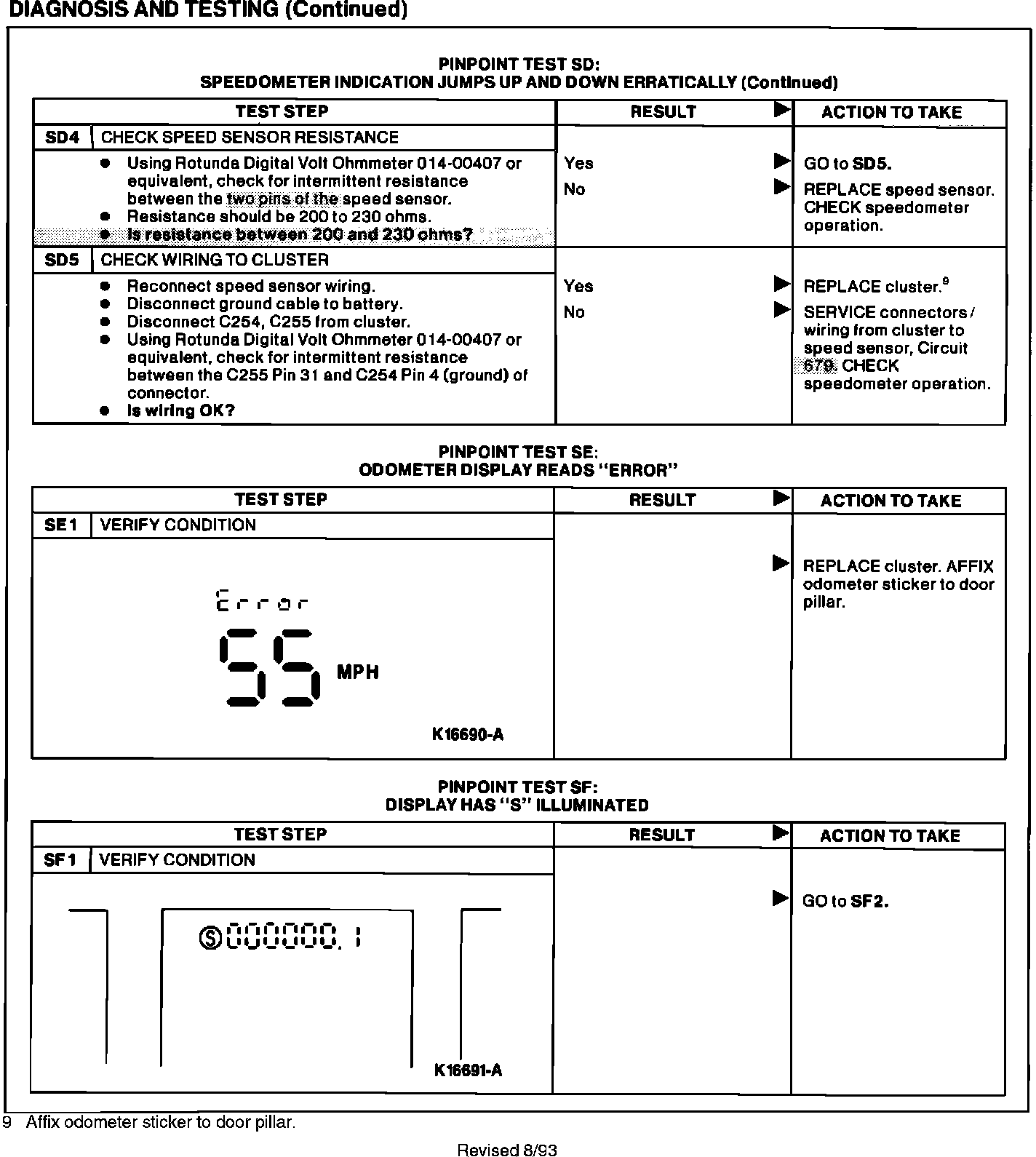

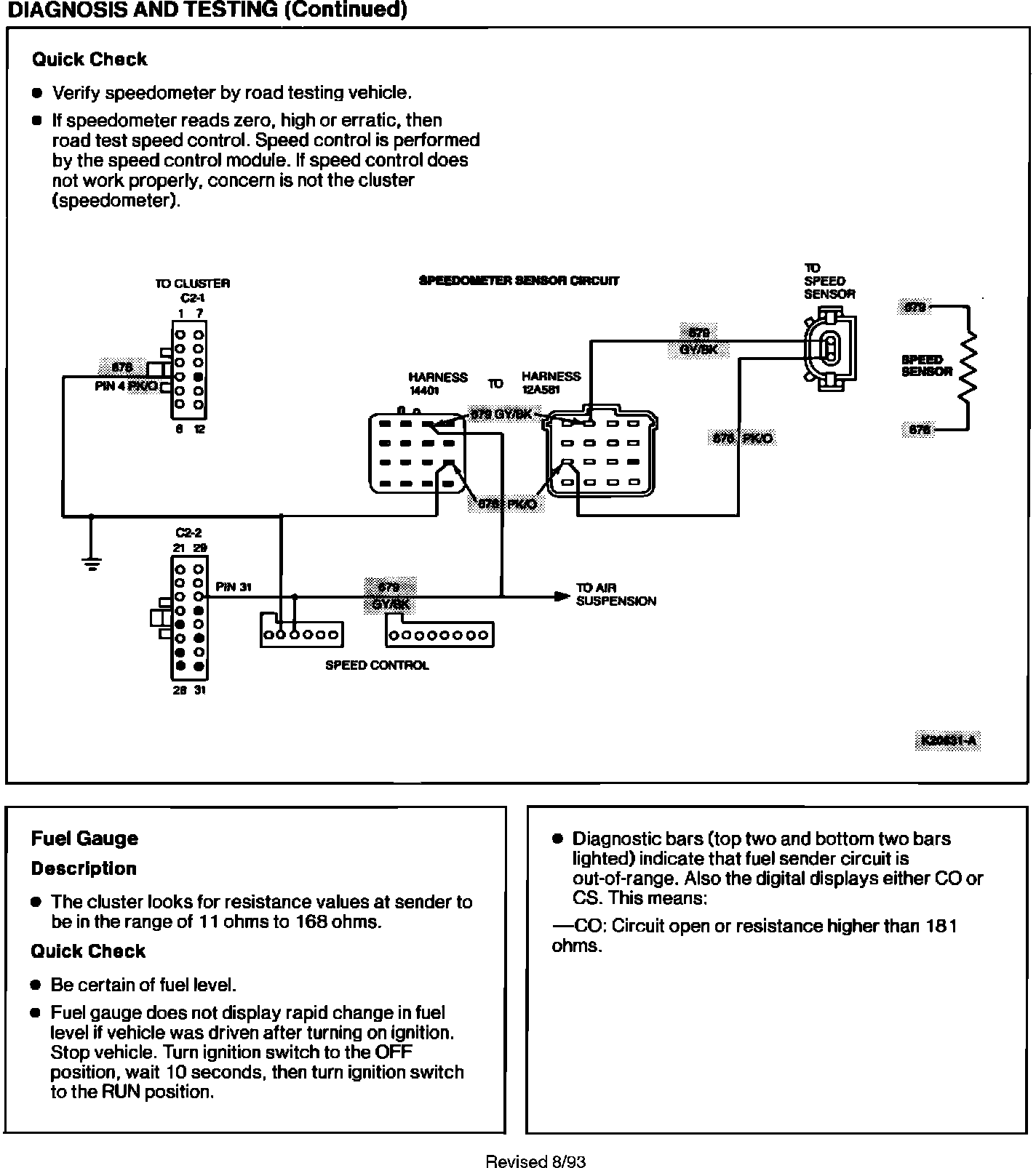

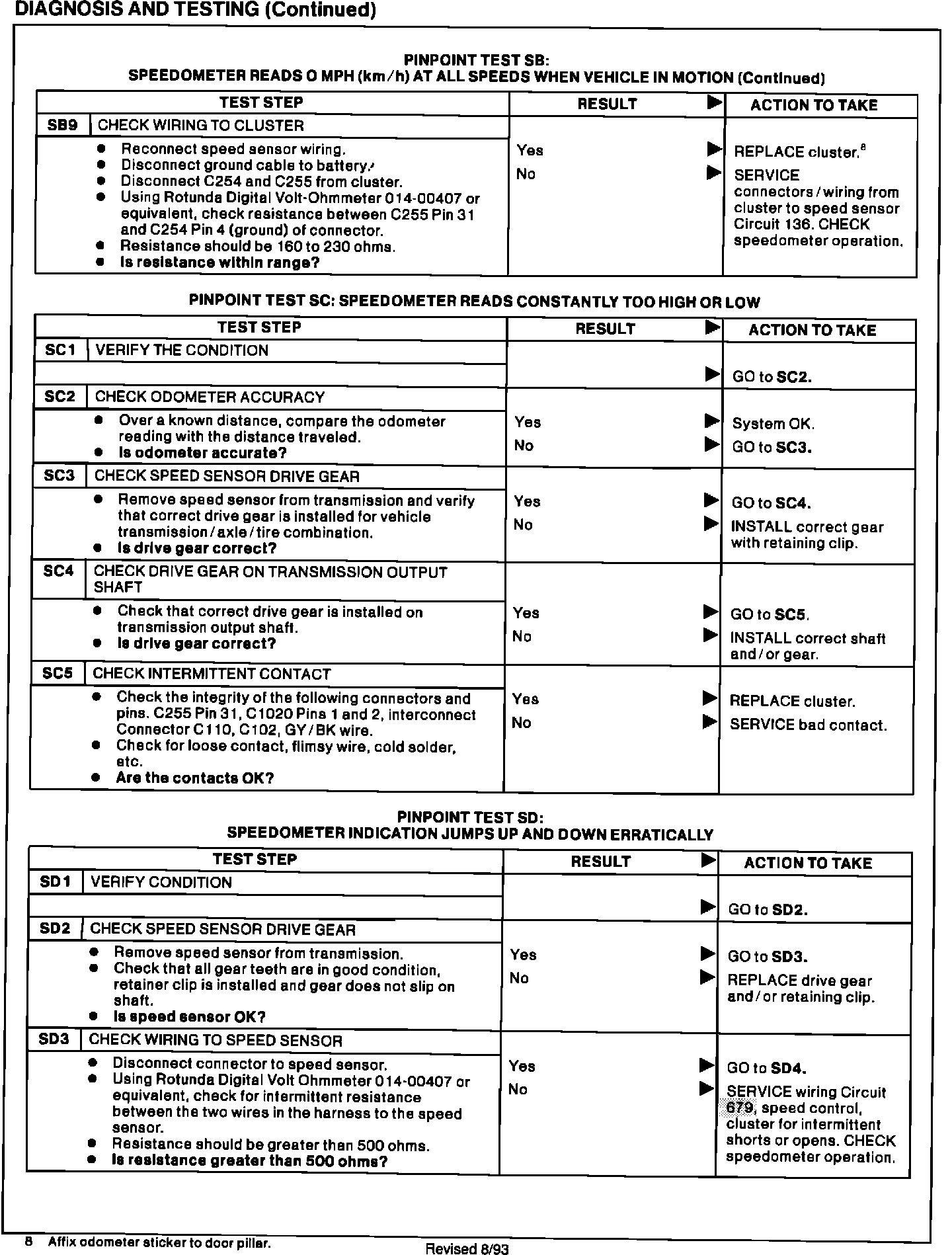

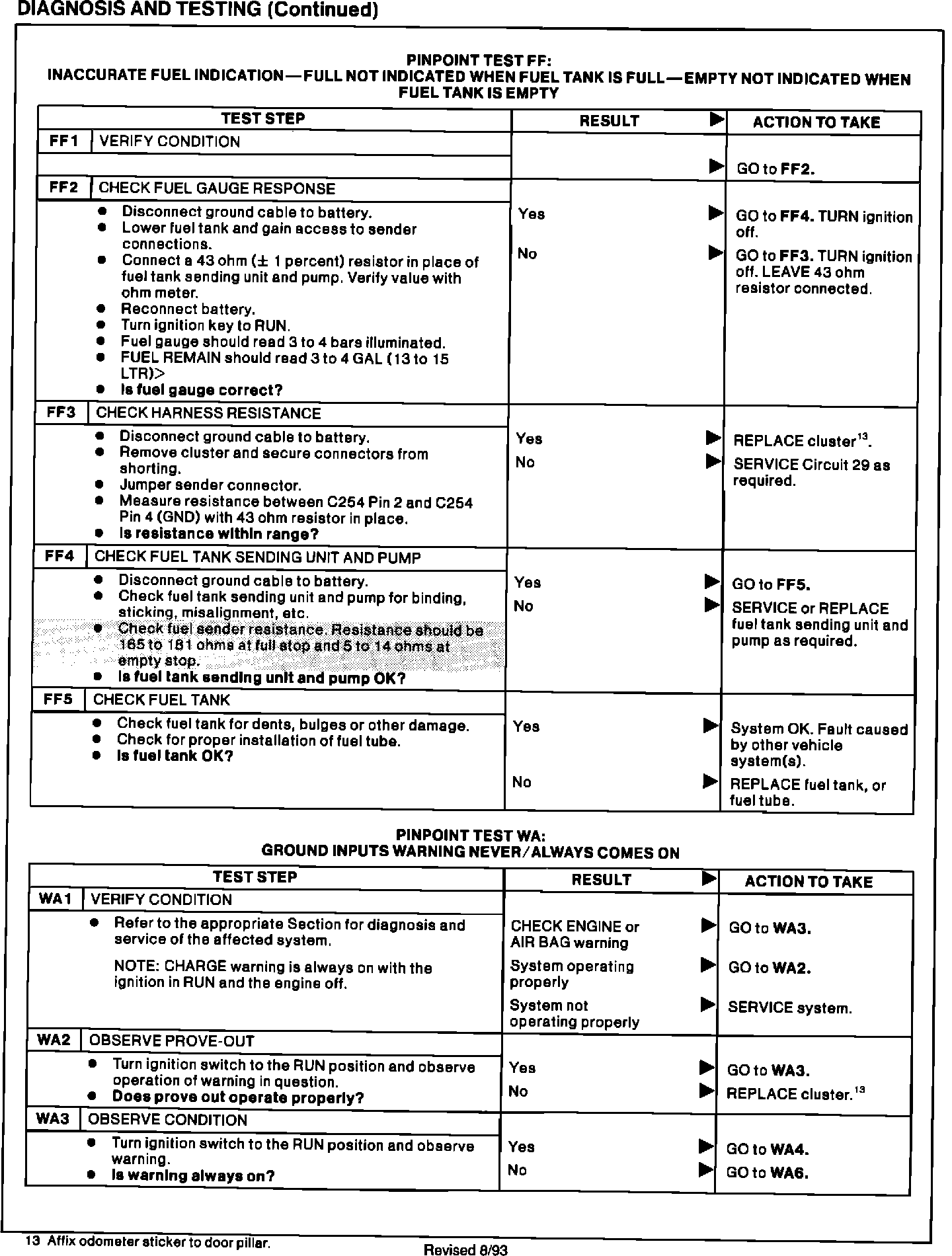

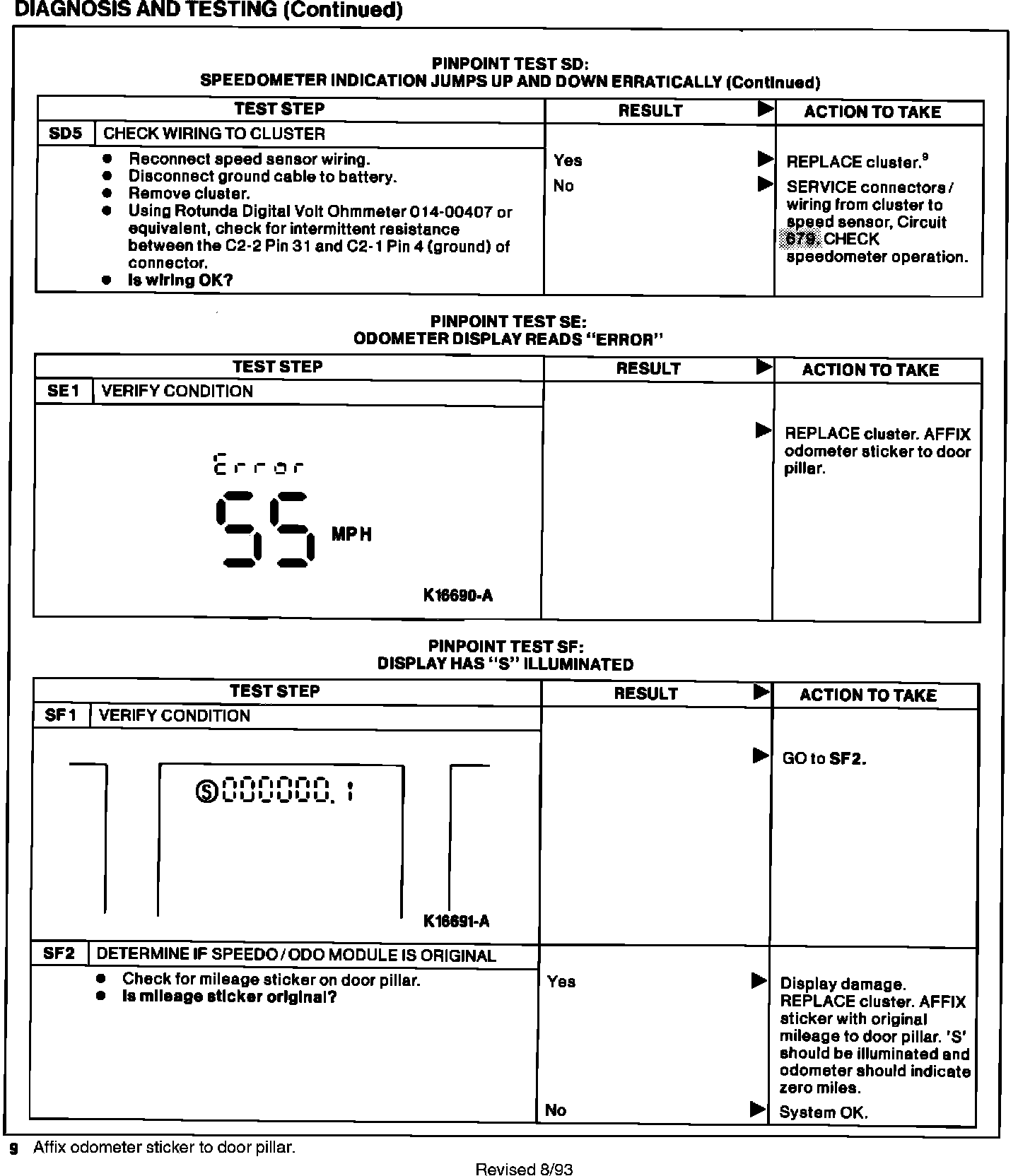

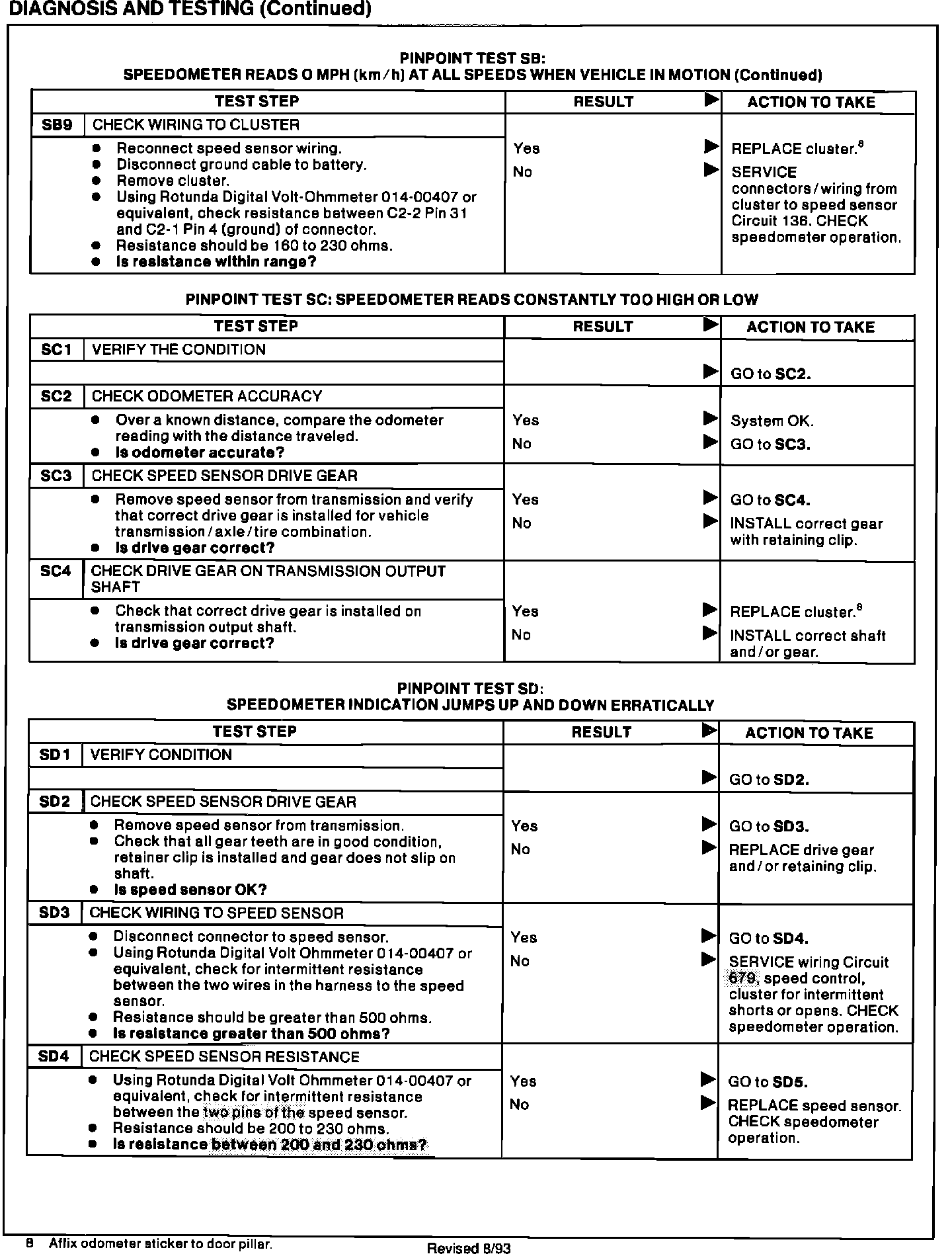

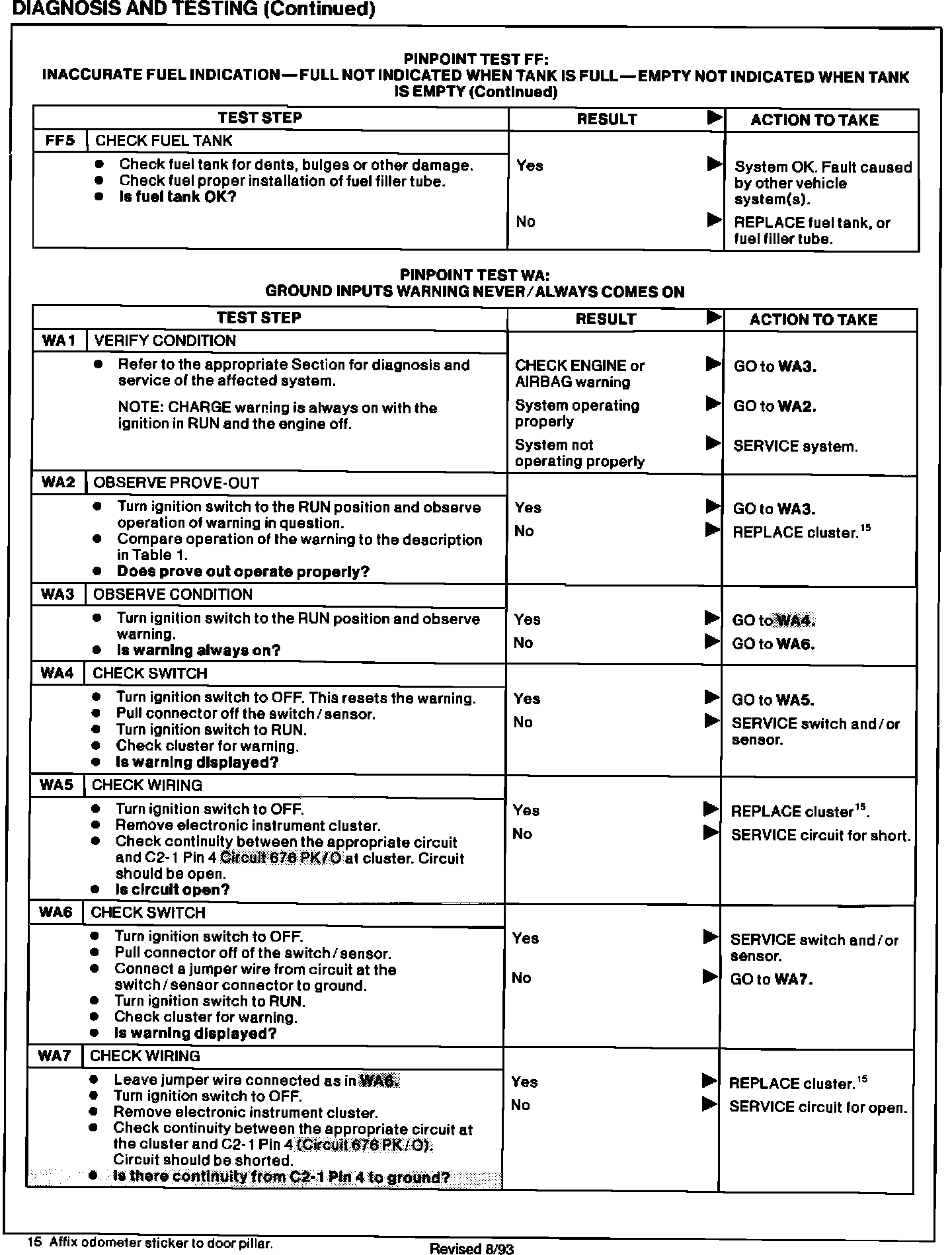

^ 13-01A-34, 40 and 41 (Revised)

1993 TC/CV/GM Service Manual:





^ 13-01A-14 (Revised)




















^ 13-01A-43 (Revised), and 13-01A-43A through 43E (New)














^ 13-01A-47, 51 and 52 (Revised)

ACTION:
Refer to the pages in this TSB article for the revised information.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
