Cabin Temperature Sensor / Switch: Testing and Inspection
Sensor DiagnosisRefer to the following diagnosis charts for sensor diagnosis.

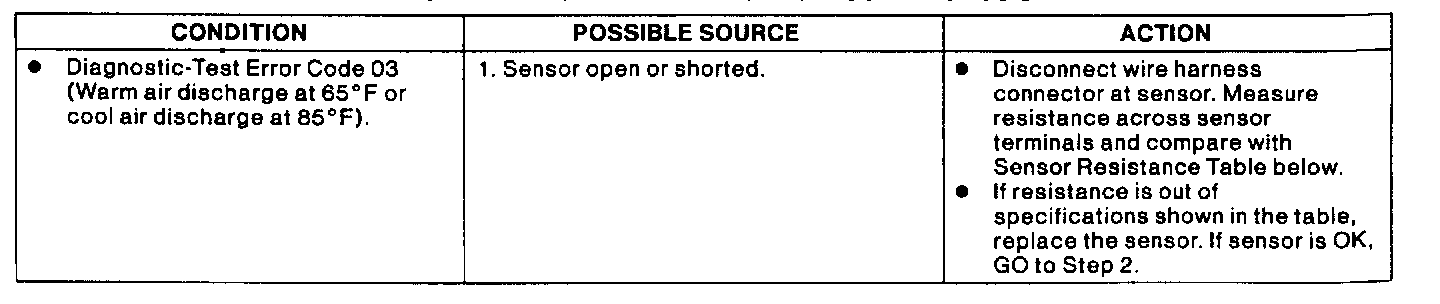

EATC - In-Vehicle Temperature Sensor Diagnosis:

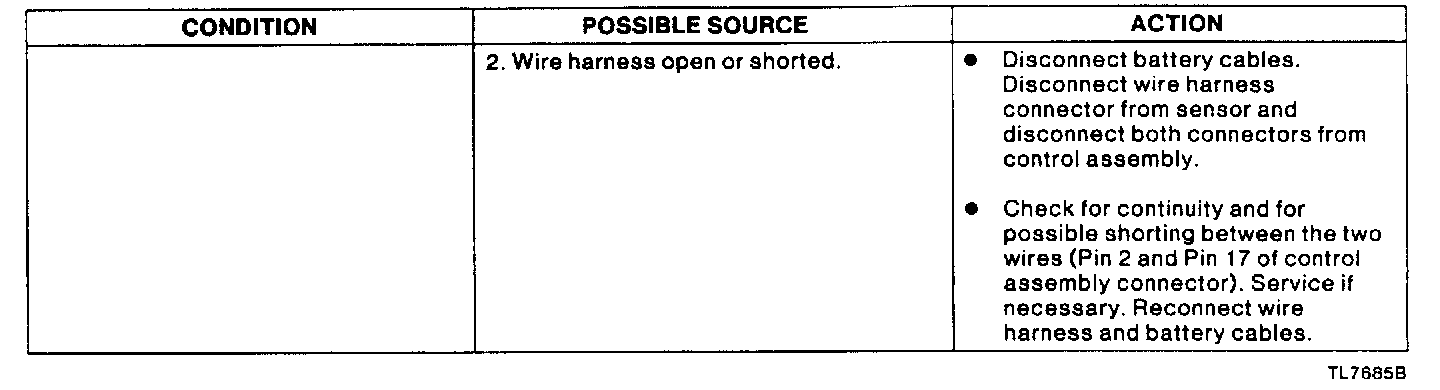

EATC - In-Vehicle Temperature Sensor Diagnosis (cont.):
Refer to the following diagnosis charts for sensor diagnosis.
