Mercury
>>
1993
>>
Grand Marquis V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
System Schematic
System Schematic

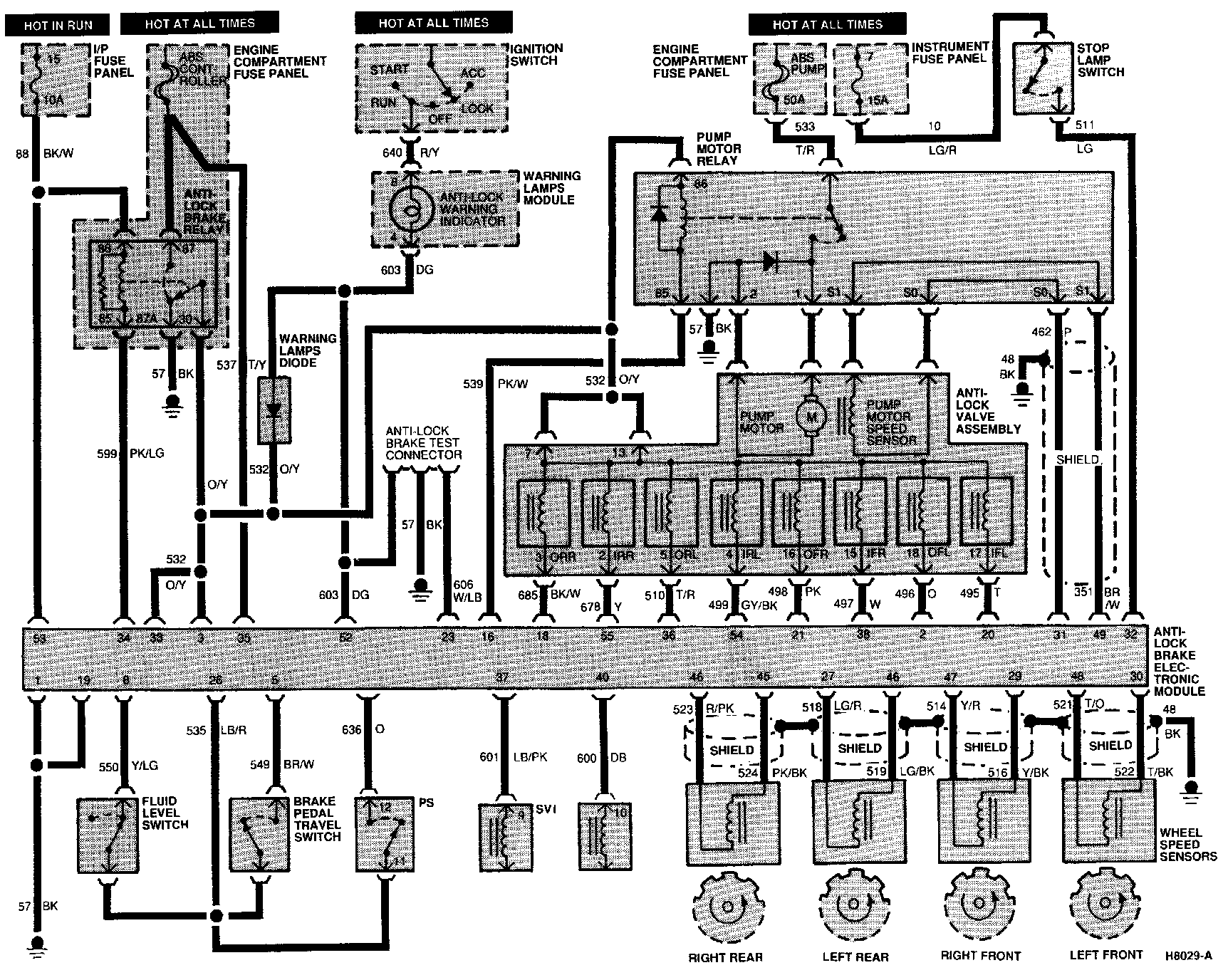

Circuit Diagram - Crown Victoria/Grand Marquis:
