Mercury
>>
1993
>>
Grand Marquis V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>
Master Window/Door Lock Control Switch
>>
Harness Side
Harness Side

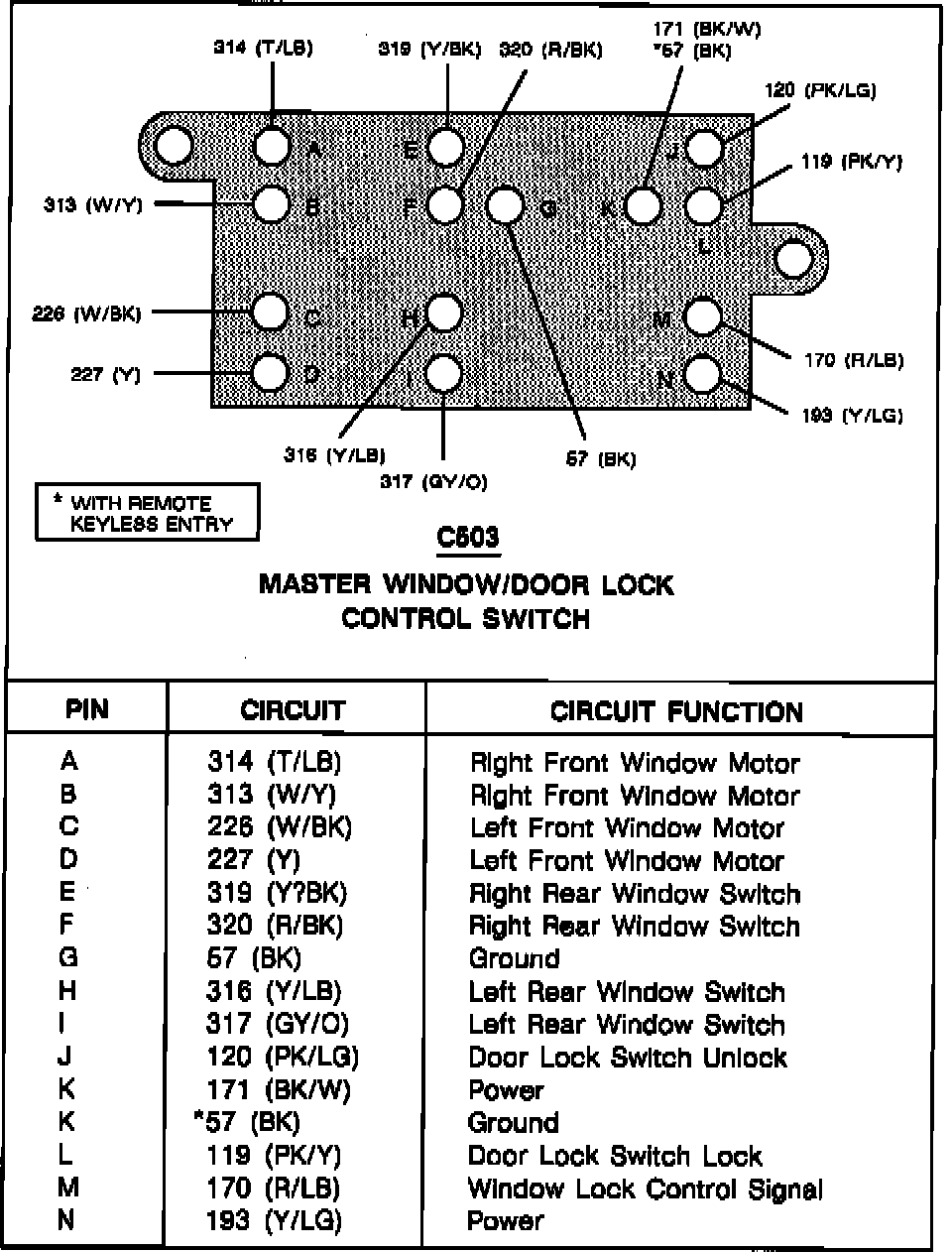

Master Window/Door Lock Control Switch:
