Mercury
>>
1993
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Electrical Diagrams
>>

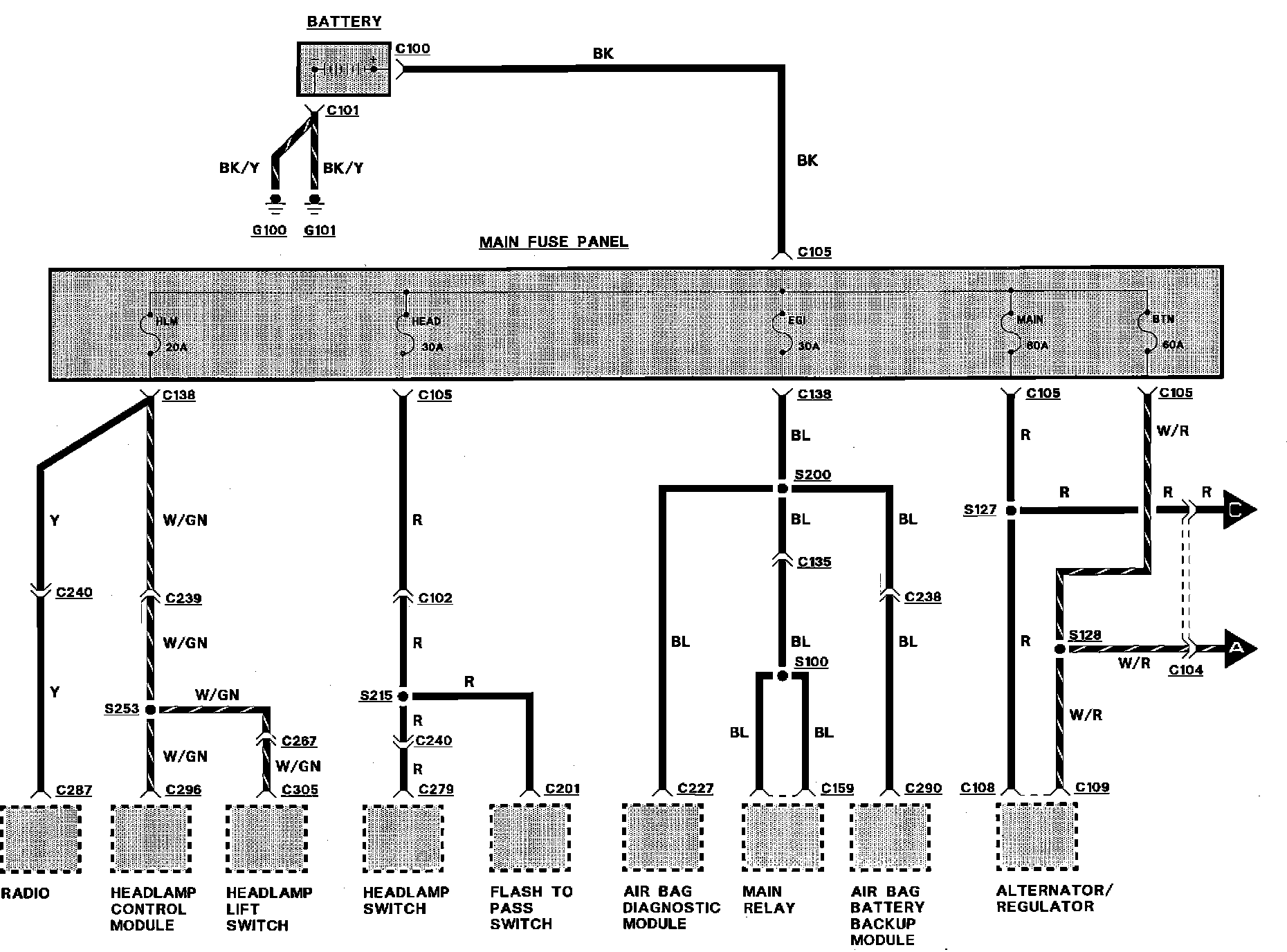

Main Fuse Panel
>>
EGI
EGI
Power Distribution:
