Mercury
>>
1993
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>

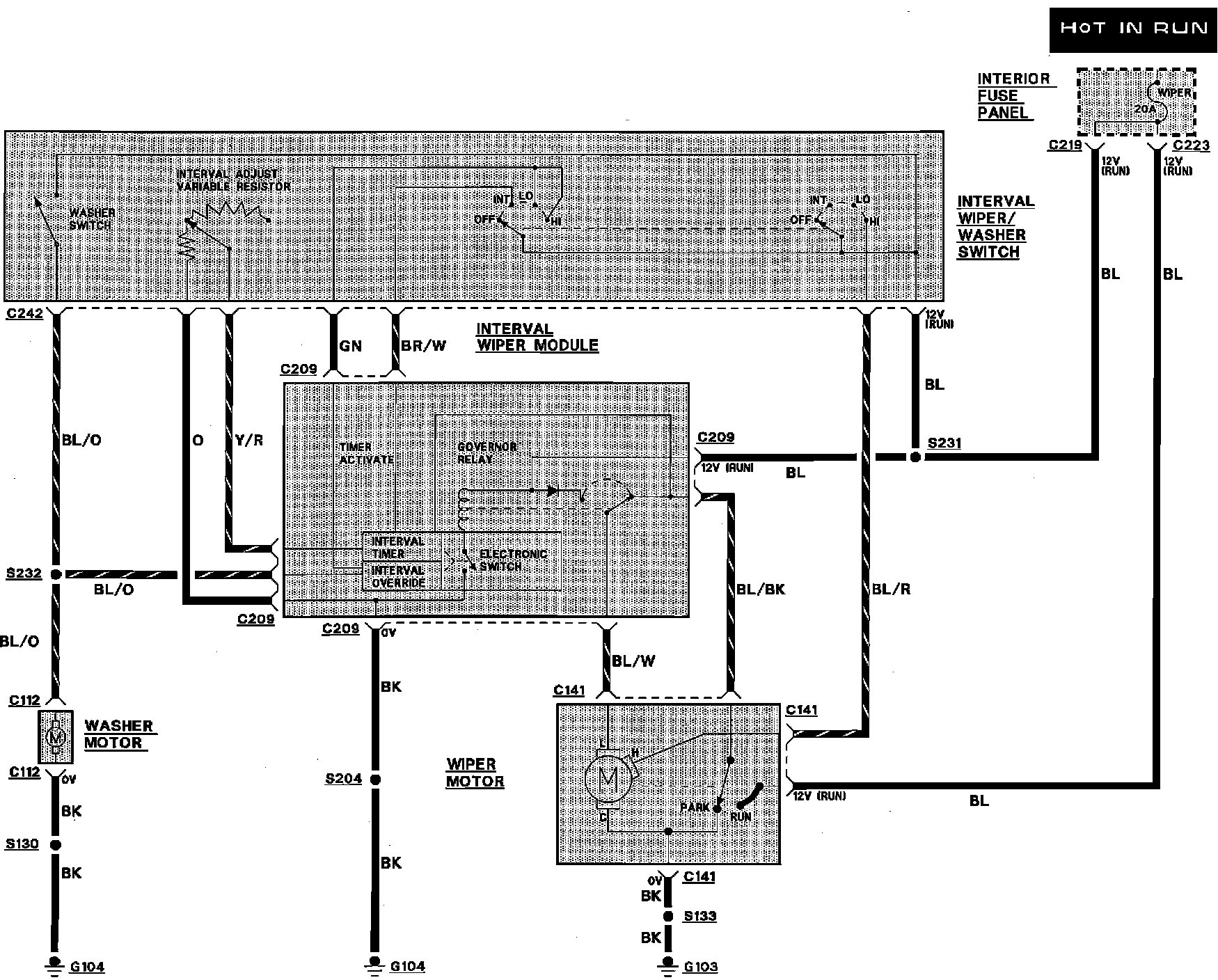

System Diagram
System Diagram
Interval Wiper/Washer:
