Mercury
>>
1993
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse Block
>>
Interior Fuse Panel
>>

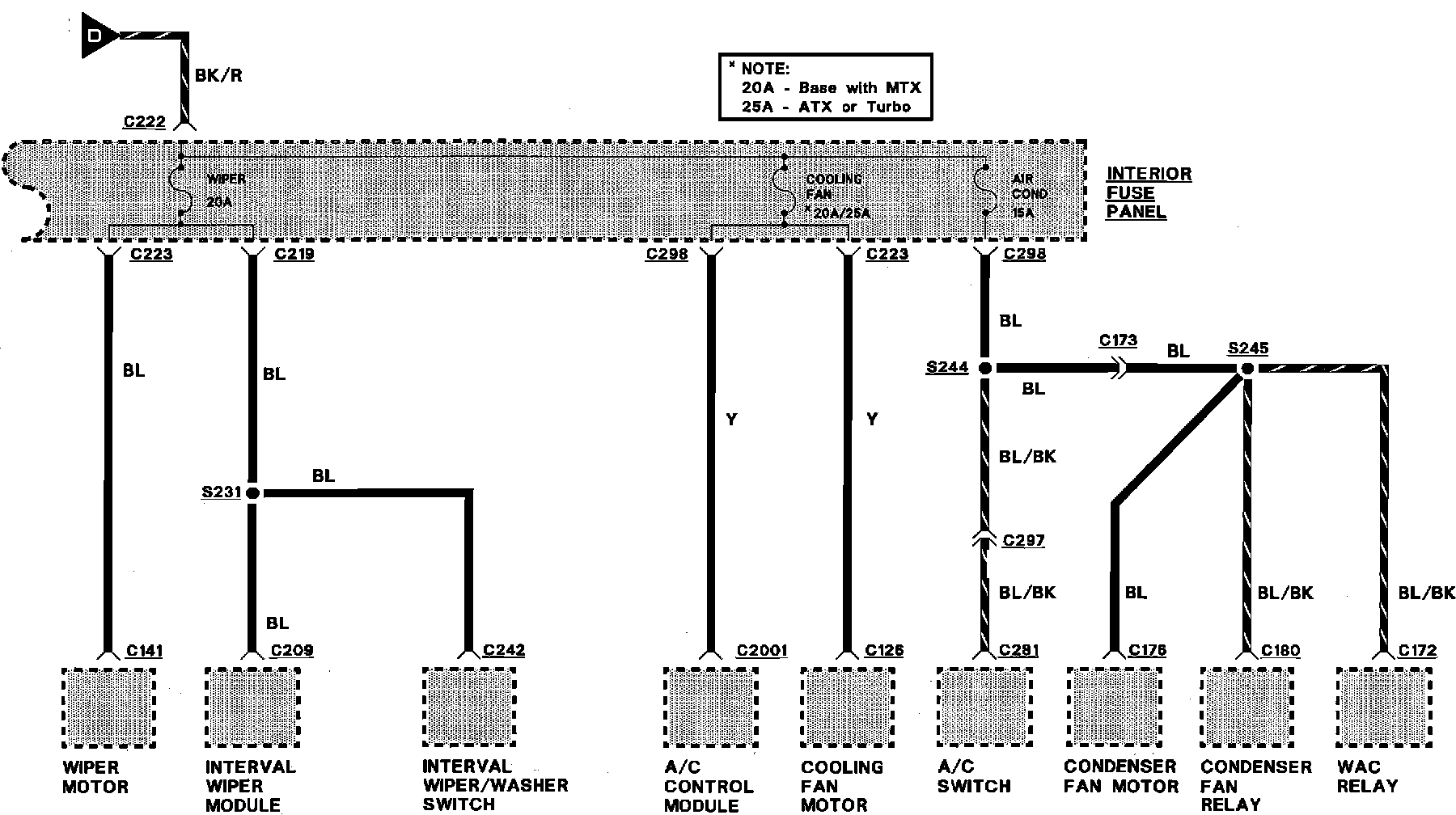

Wiper
Wiper
Power Distribution:
