NA - TFI Ignition Diagnostic Monitor
>>

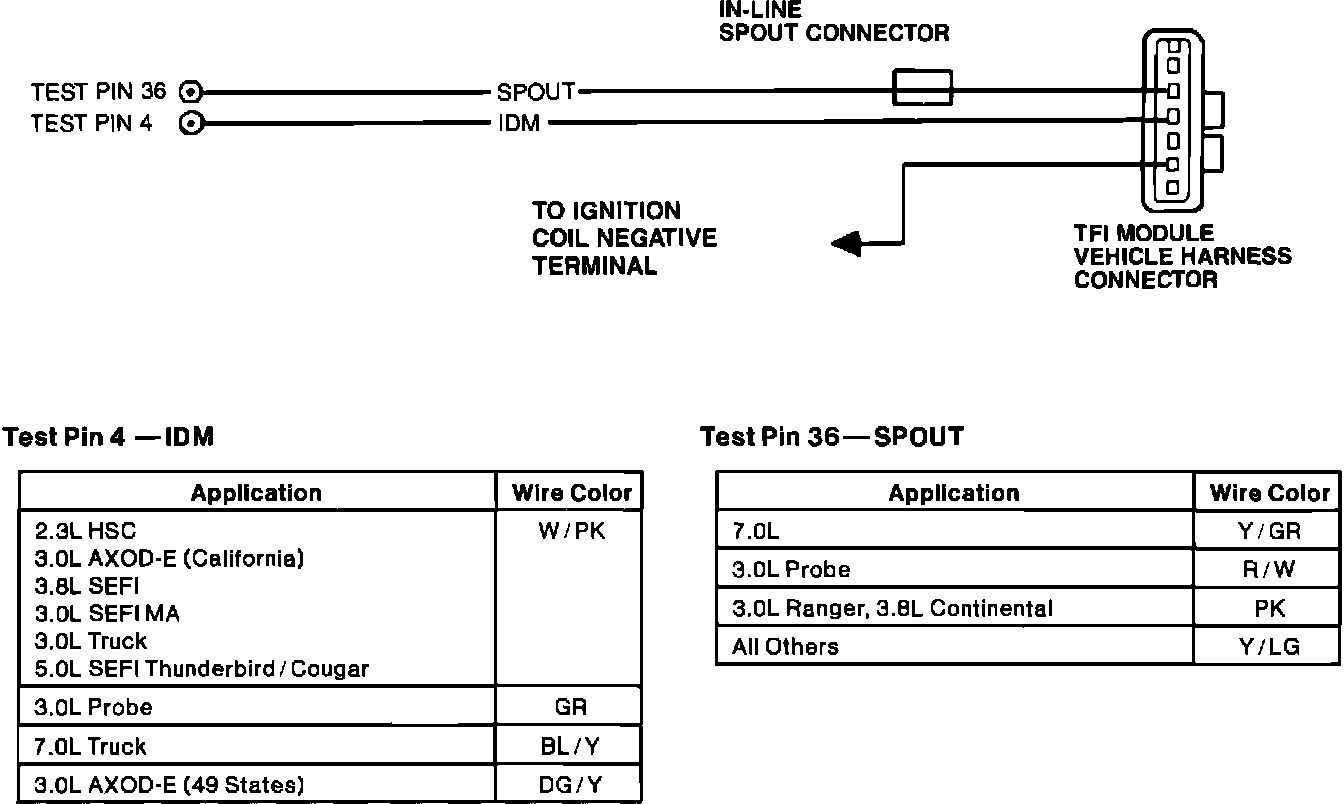

NA - Testing Schematic
NA - Testing Schematic
TFI Ignition Diagnostic Monitor:
