Home
>>
Mercury
>>
1992
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
AA - No Start Test
>>

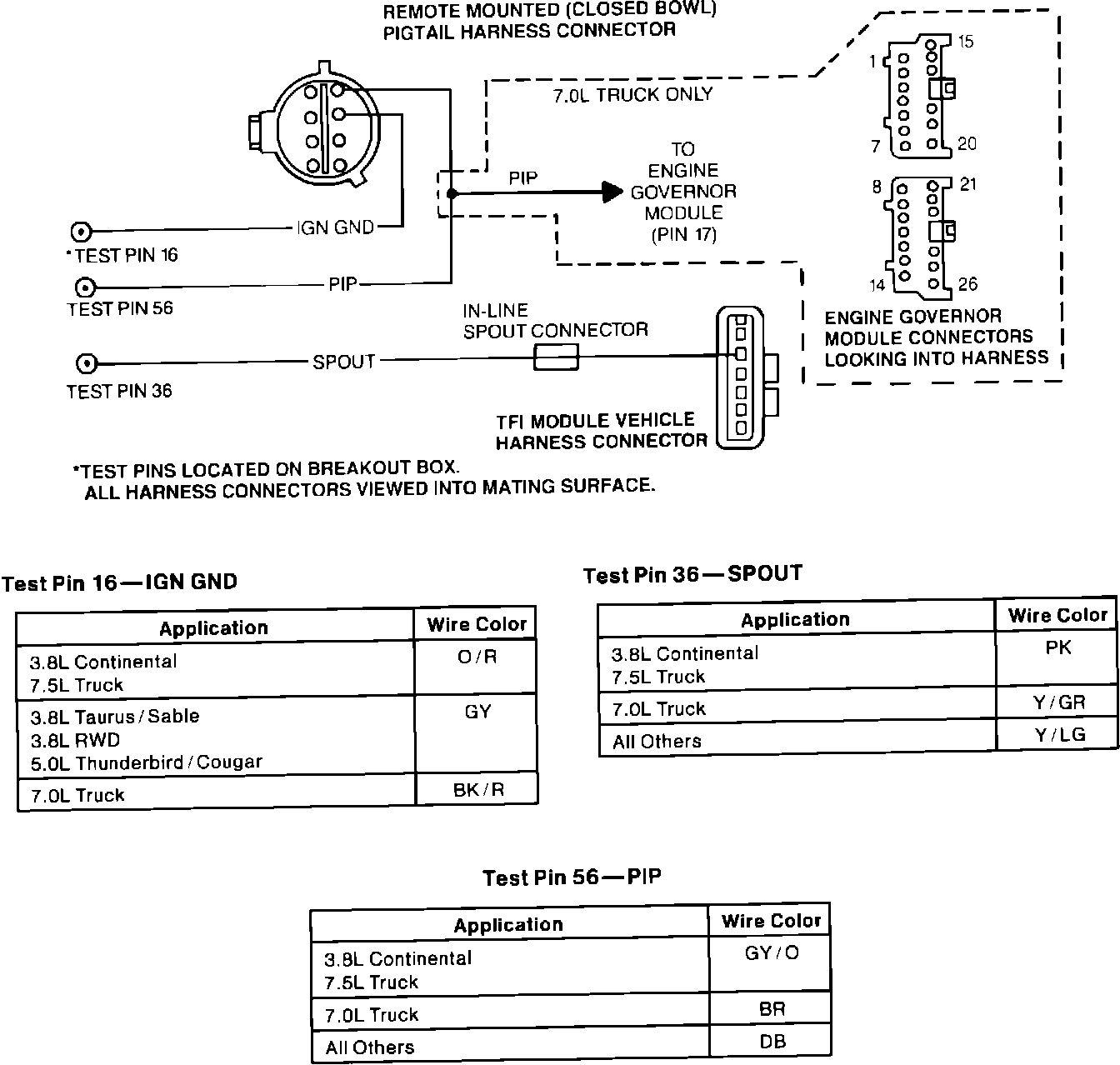

AA - Test Schematic
AA - Test Schematic
Schematic Diagram:
