Home
>>
Mercury
>>
1992
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Headlamp Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

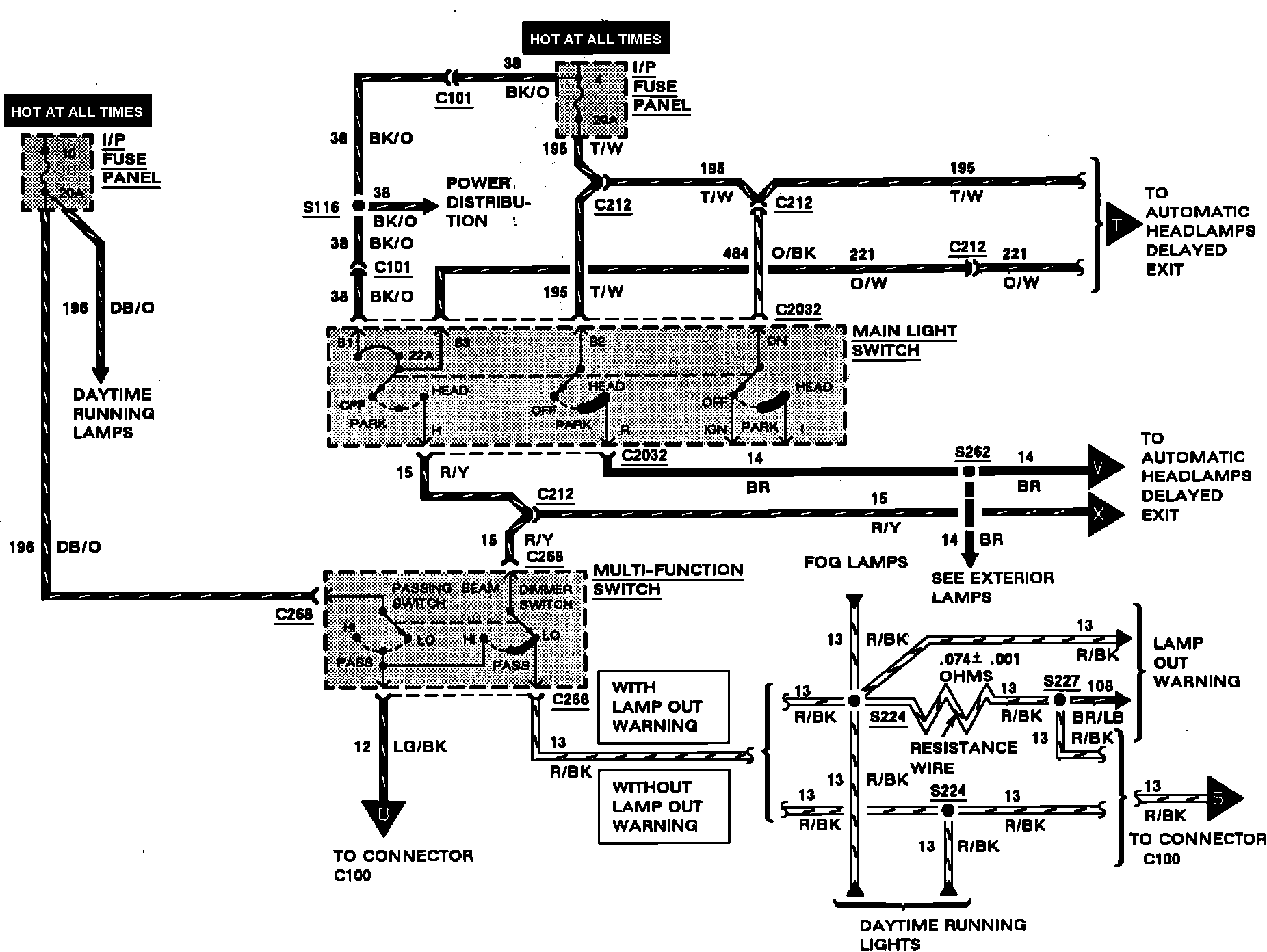

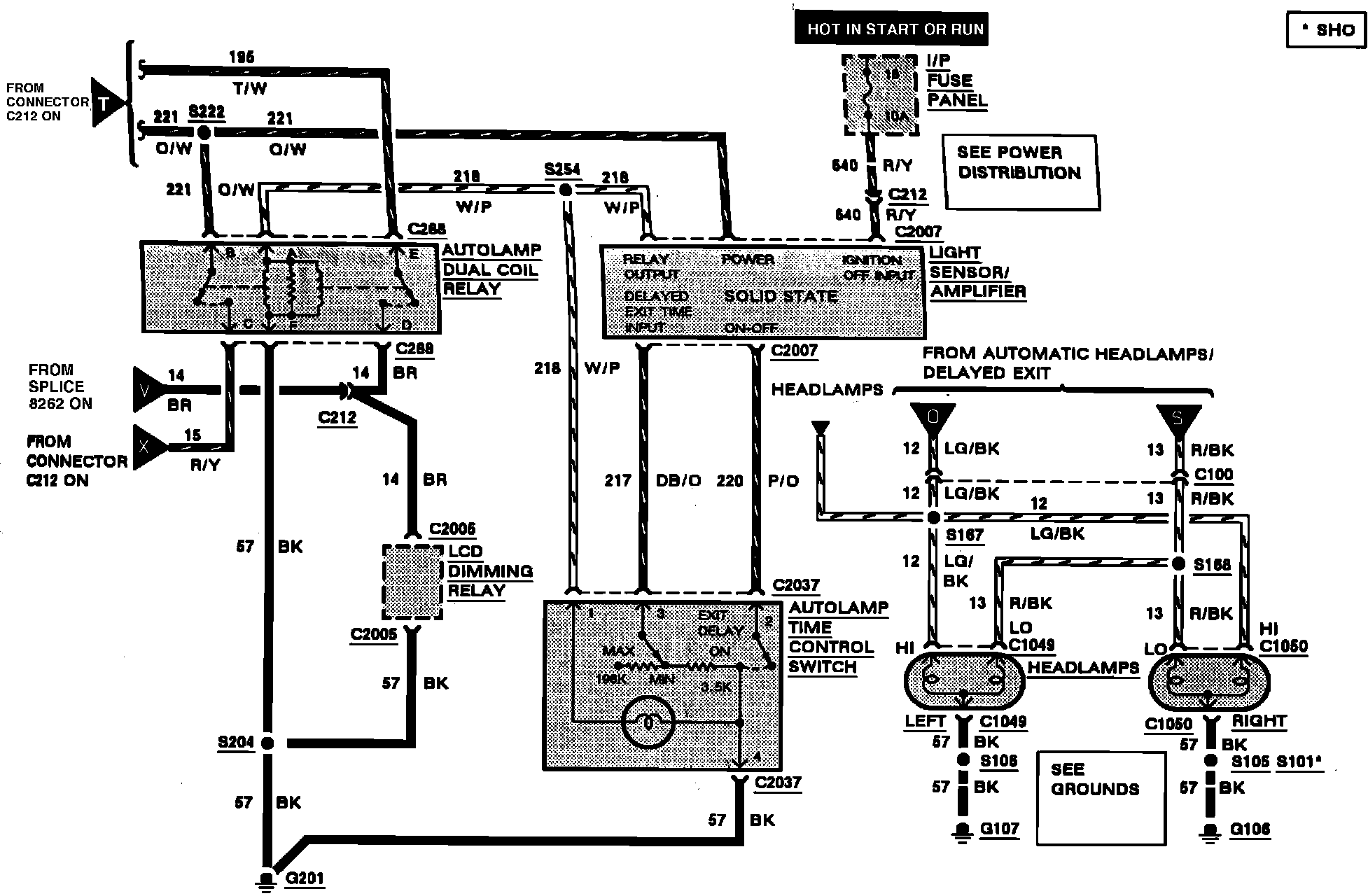

Automatic Headlamps/Delayed Exit:
Automatic Headlamps/Delayed Exit:
