Symptom Chart

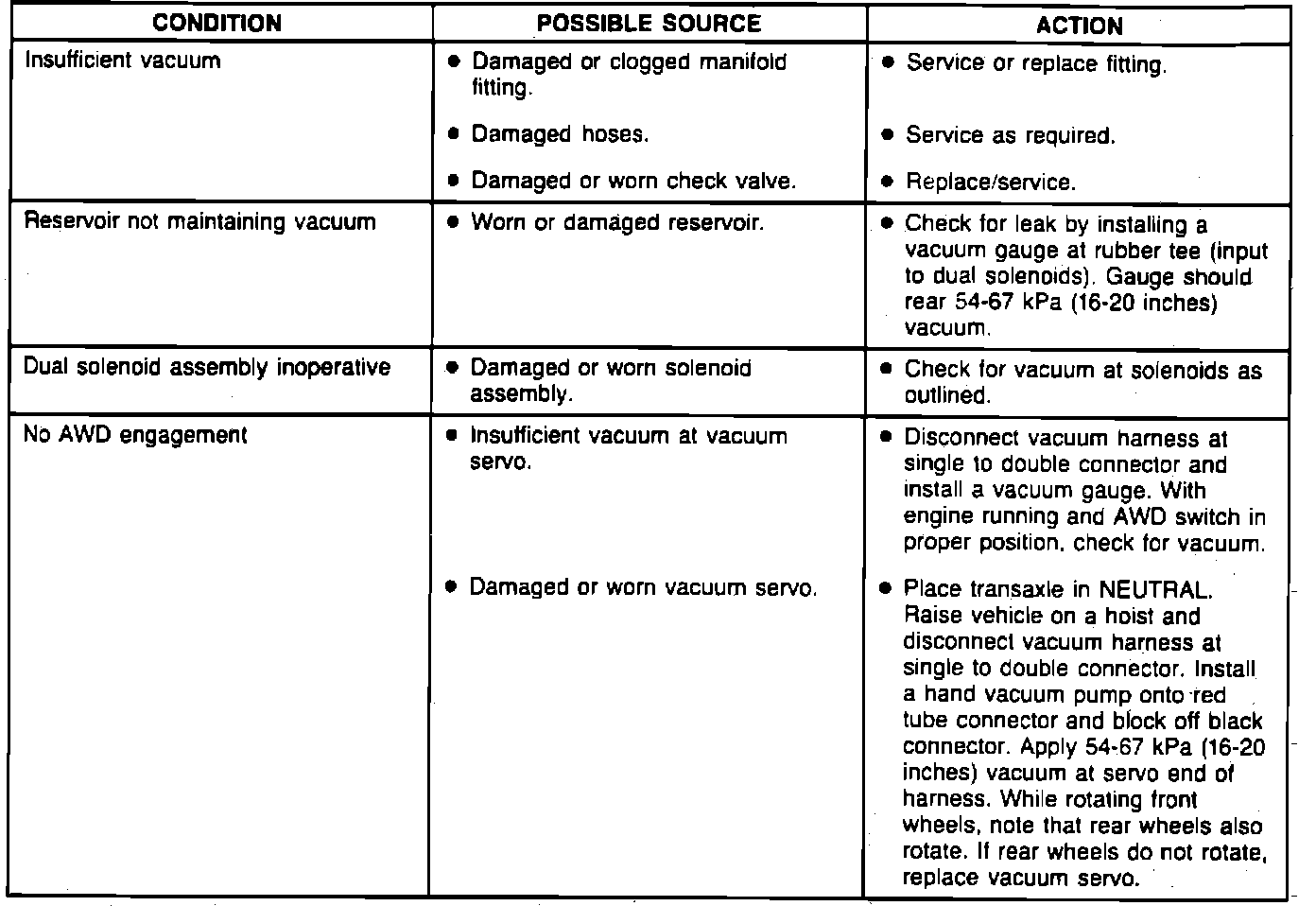

Fig. 3 All Wheel Drive Vacuum System Troubleshooting:

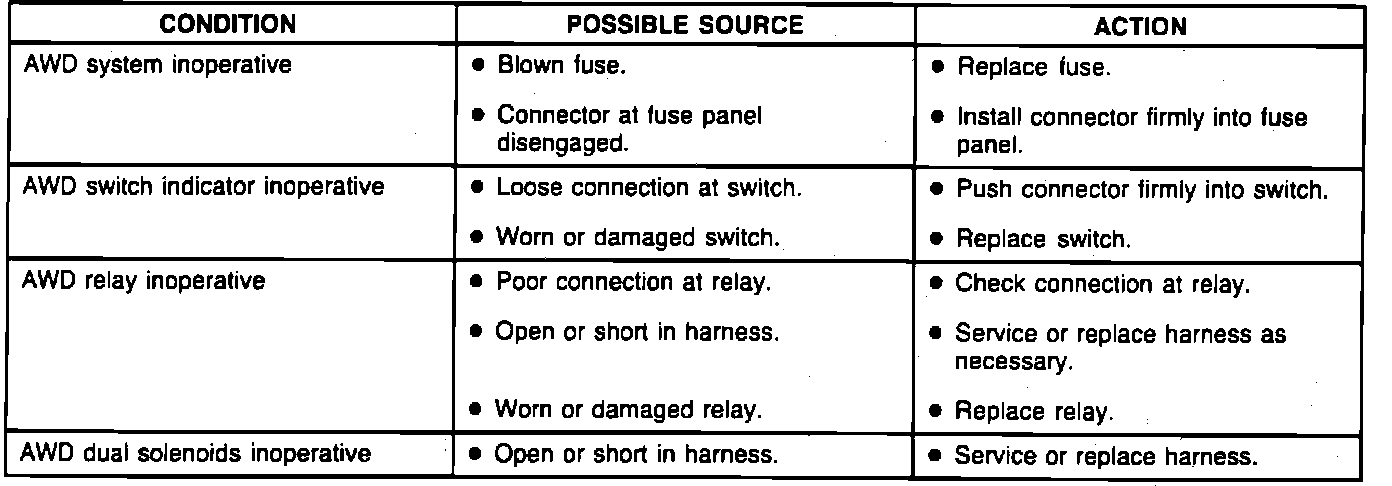

Fig. 4 All Wheel Drive Electrical System Troubleshooting:
