Home
>>
Mercury
>>
1991
>>
Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution
>>
Circuit Breaker 12
Circuit Breaker 12

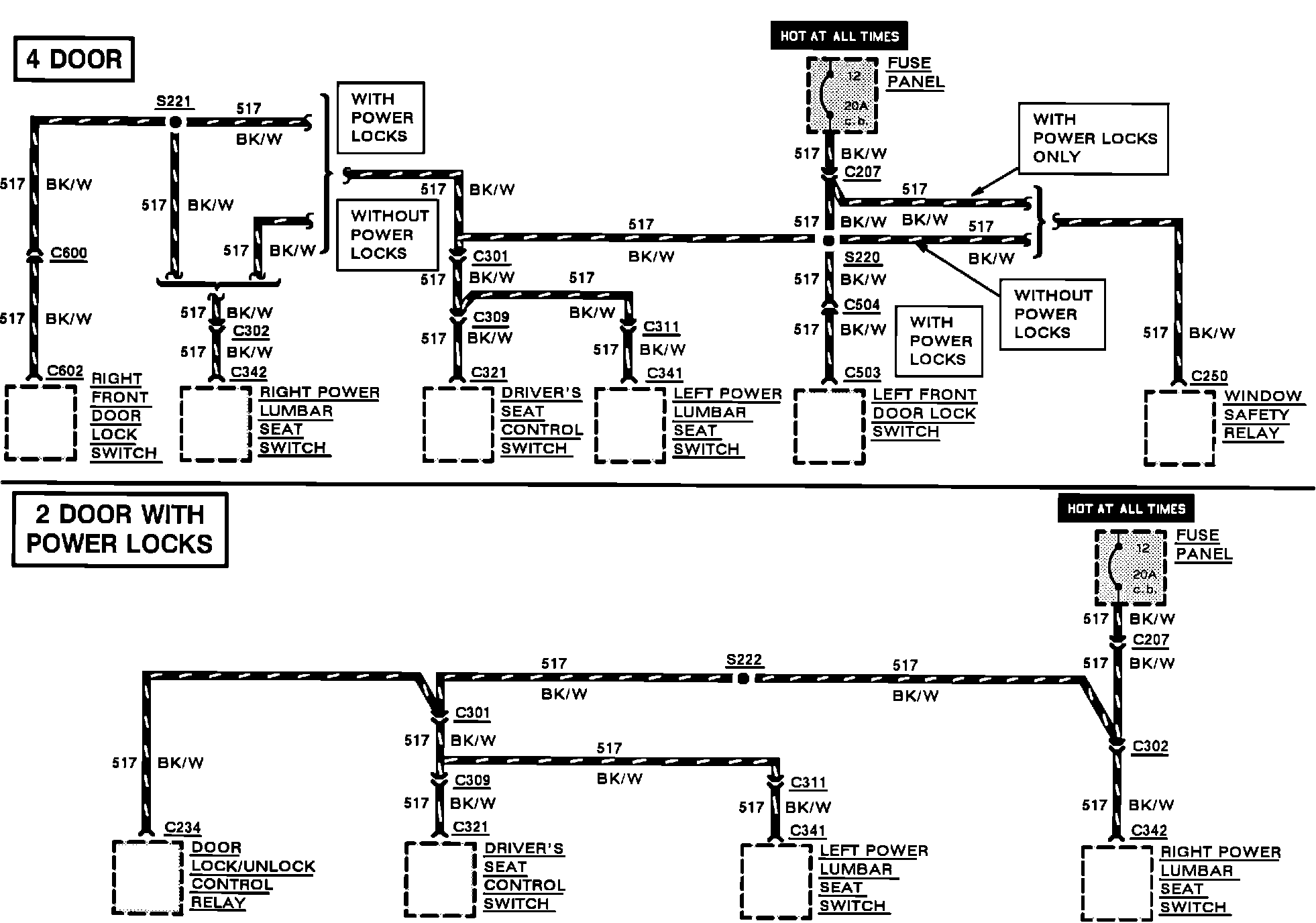

Power Distribution (C.B. 12):
Power Distribution (C.B. 12, Fuse 5):
