Home
>>
Mercury
>>
1991
>>
Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Cooling System
>>
Radiator Cooling Fan Control Module
>>
Diagrams
>>
Electrical Diagrams
>>
Without A/C
Without A/C

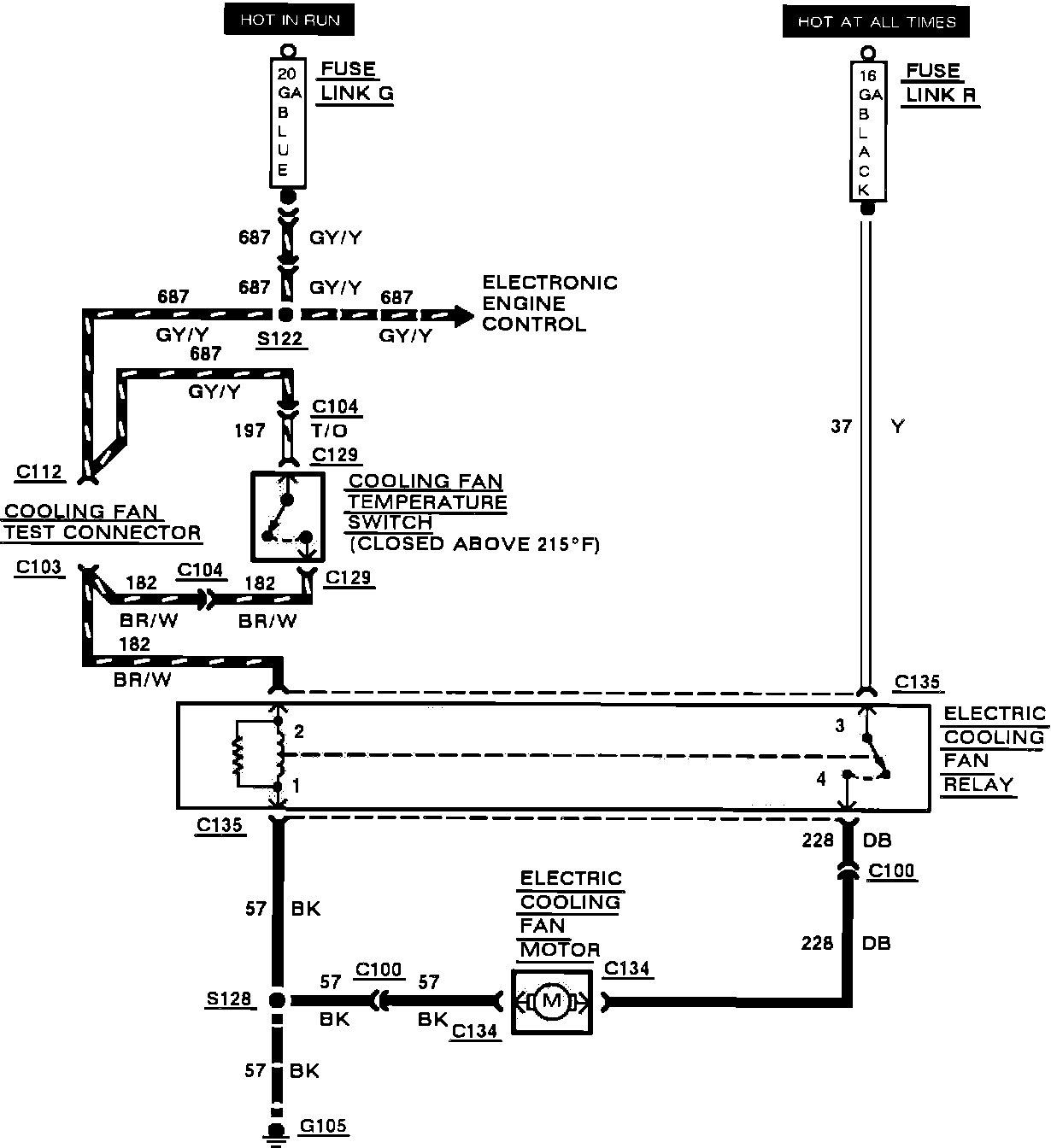

Electric Cooling Fan Wiring Circuit:
