Mercury
>>
1991
>>
Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution
>>
Battery
Battery

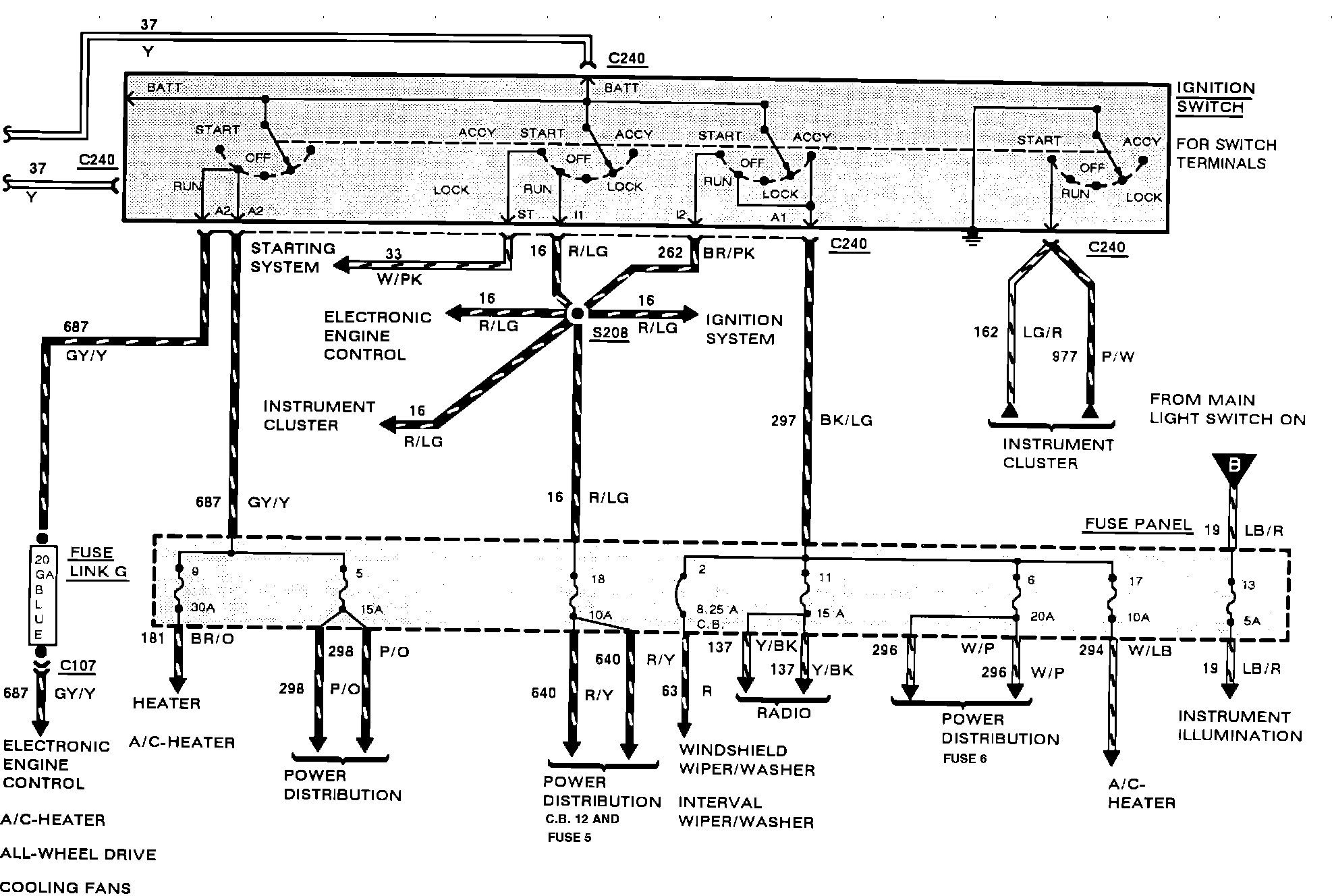

Power Distribution (Battery):
Power Distribution (Battery):
