Mercury
>>
1991
>>
Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Engine Running & A/C On
Engine Running & A/C On

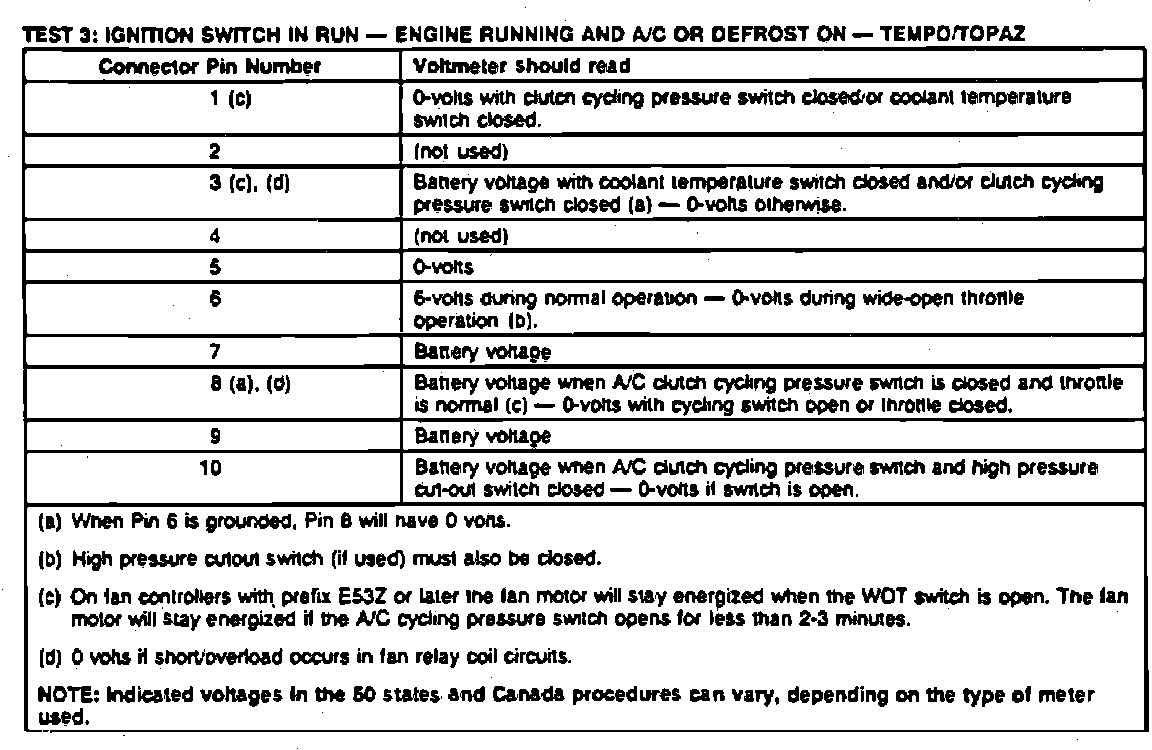

Fig. 13d Cooling Fan Controller Diagnosis:
