Home
>>
Mercury
>>
1991
>>
Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transfer Case
Transfer Case

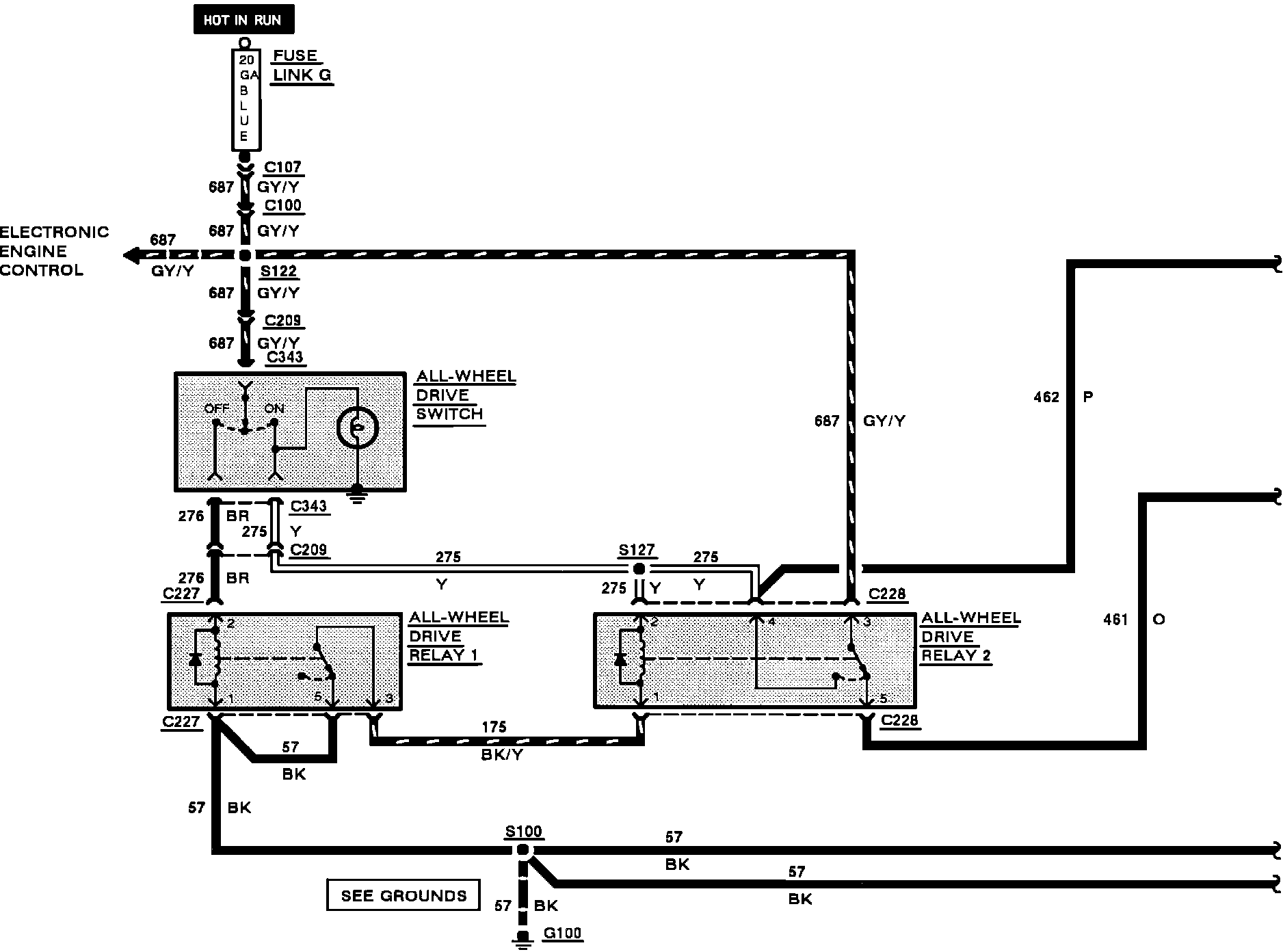

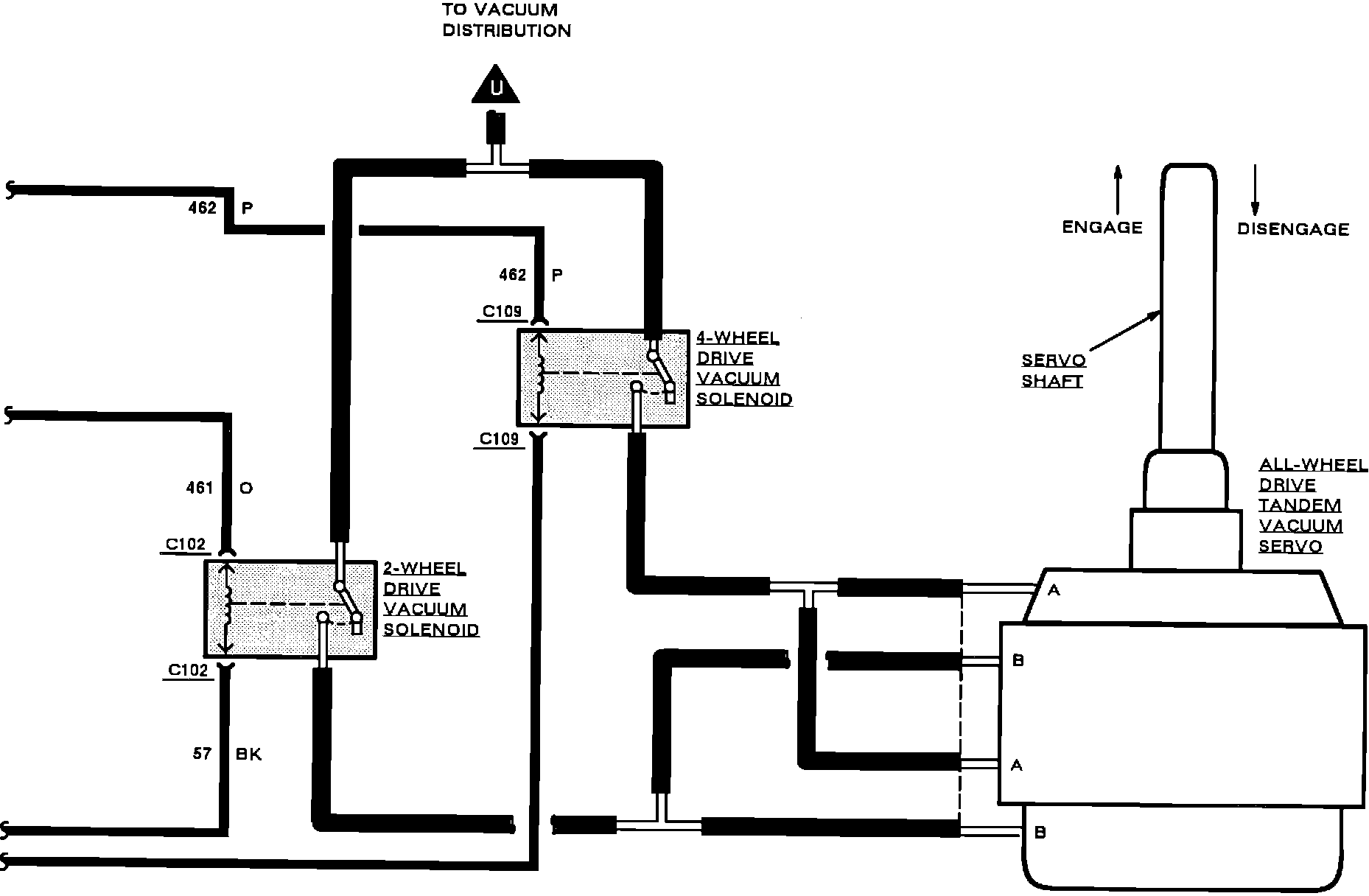

All Wheel Drive:
All Wheel Drive:
