Mercury
>>
1991
>>
Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Engine Controls
Engine Controls

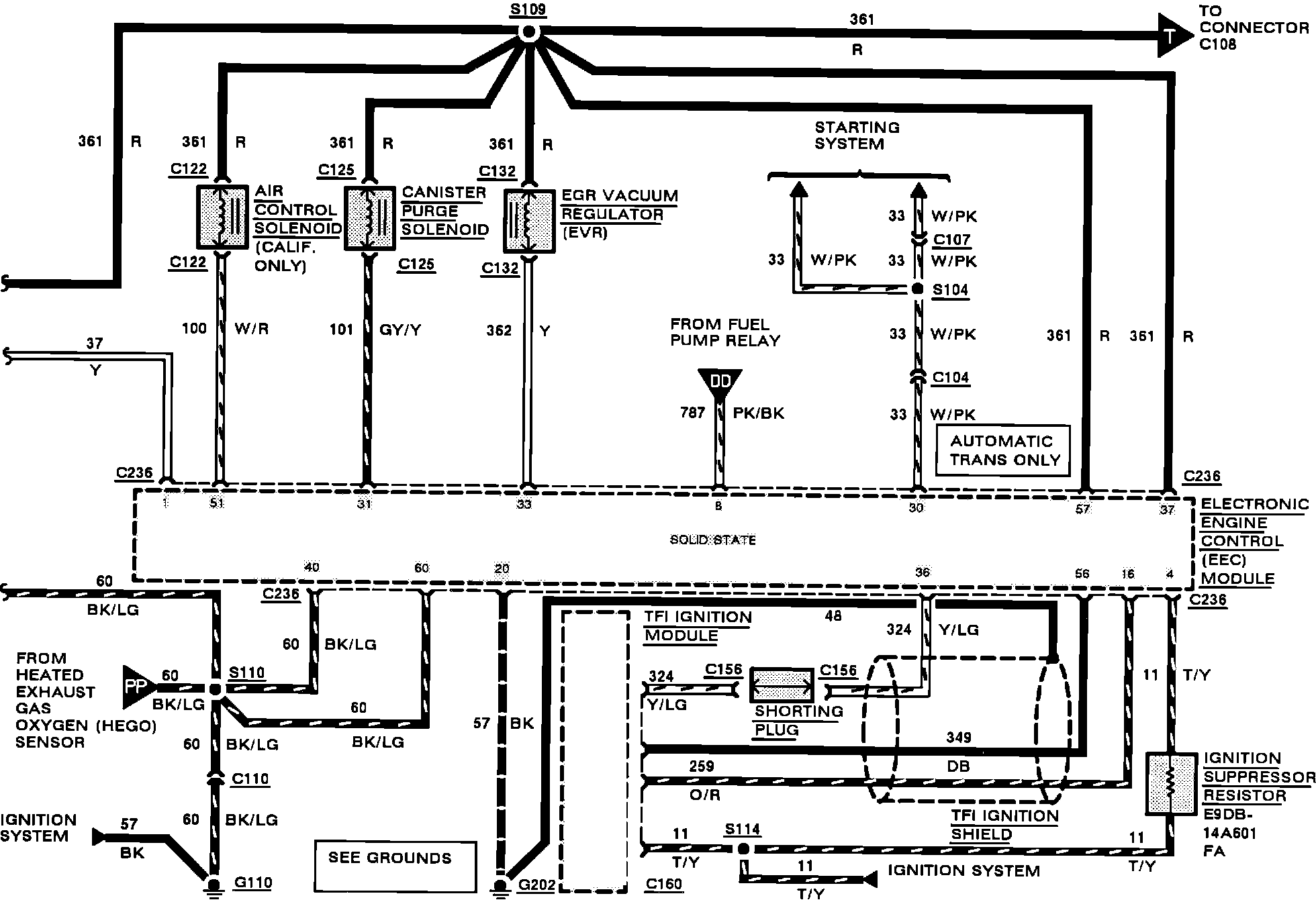

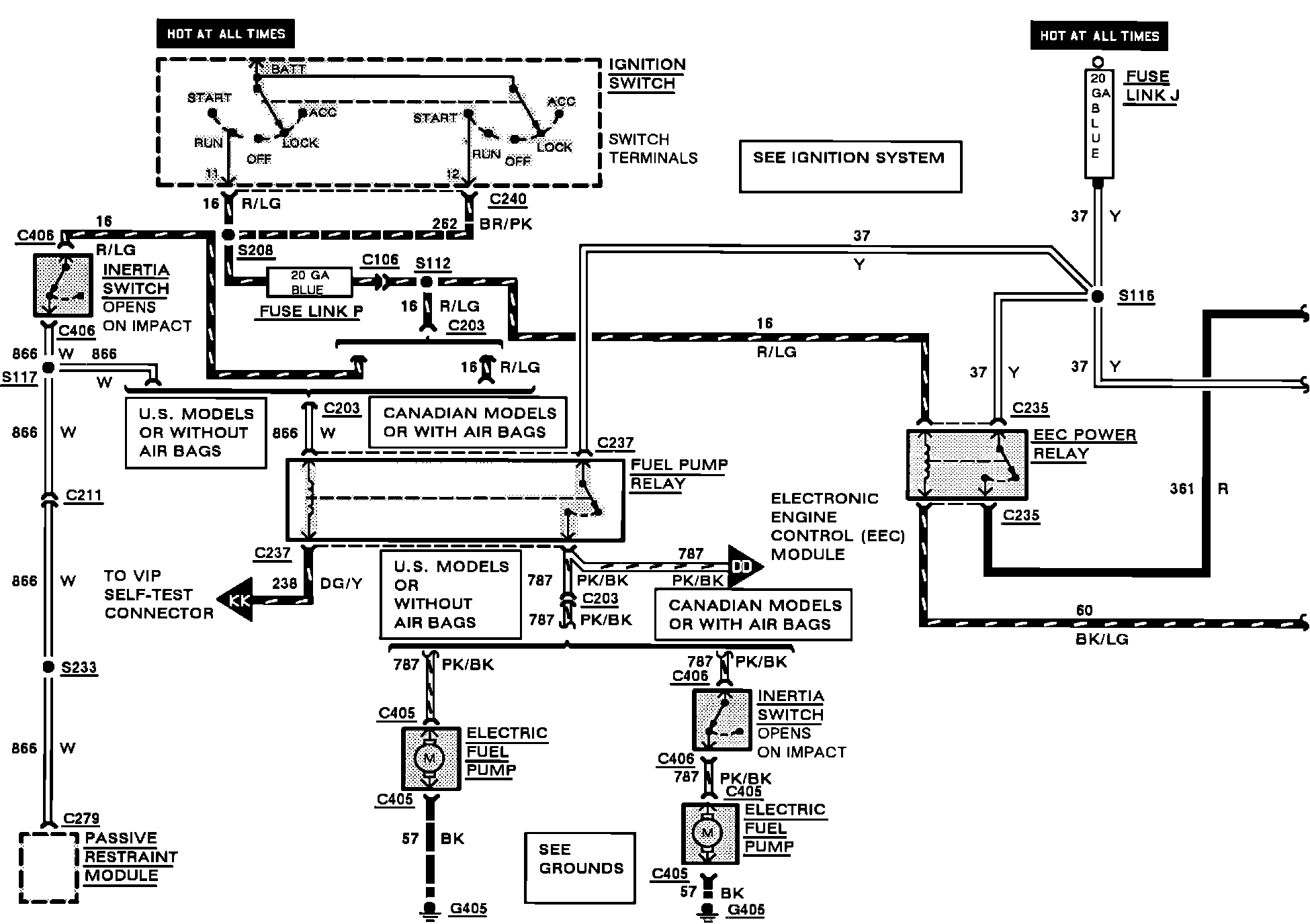

Engine Controls (EEC):
Engine Controls (EEC):
���2Engine Controls (EEC),:
