Wiring Diagrams

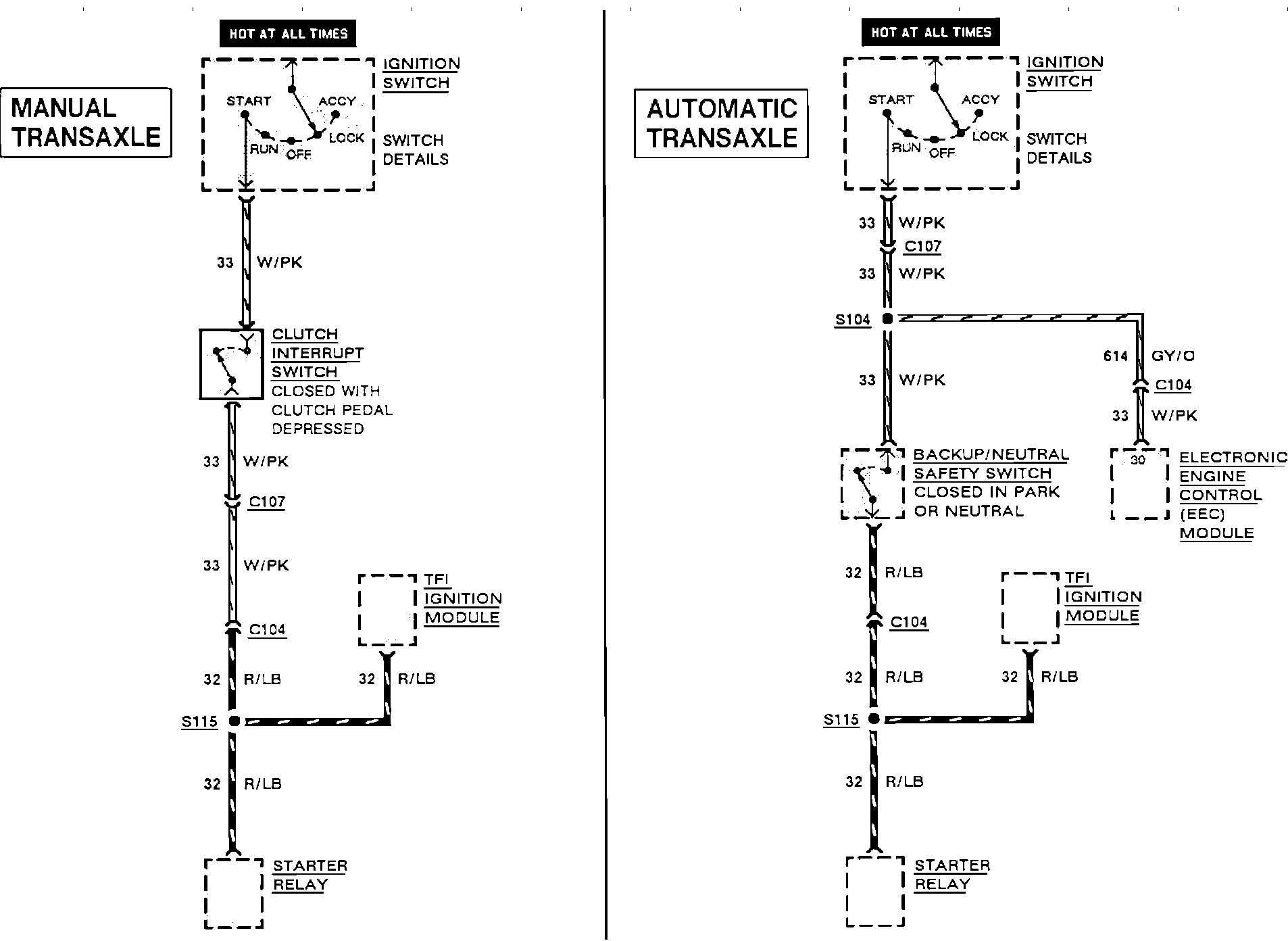

Wiring Diagram - Start/Ignition:

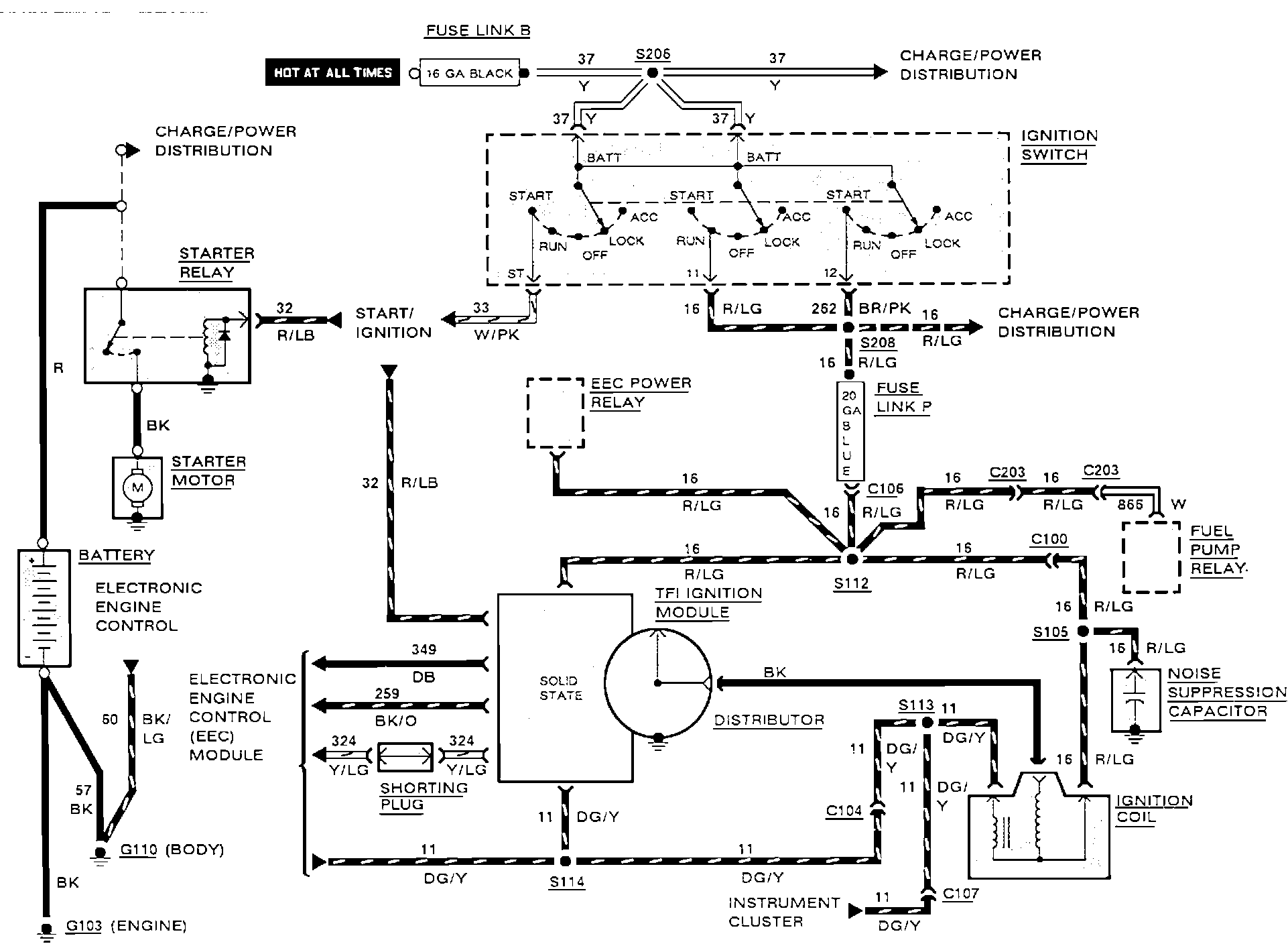

Wiring Diagram - Start/Ignition:

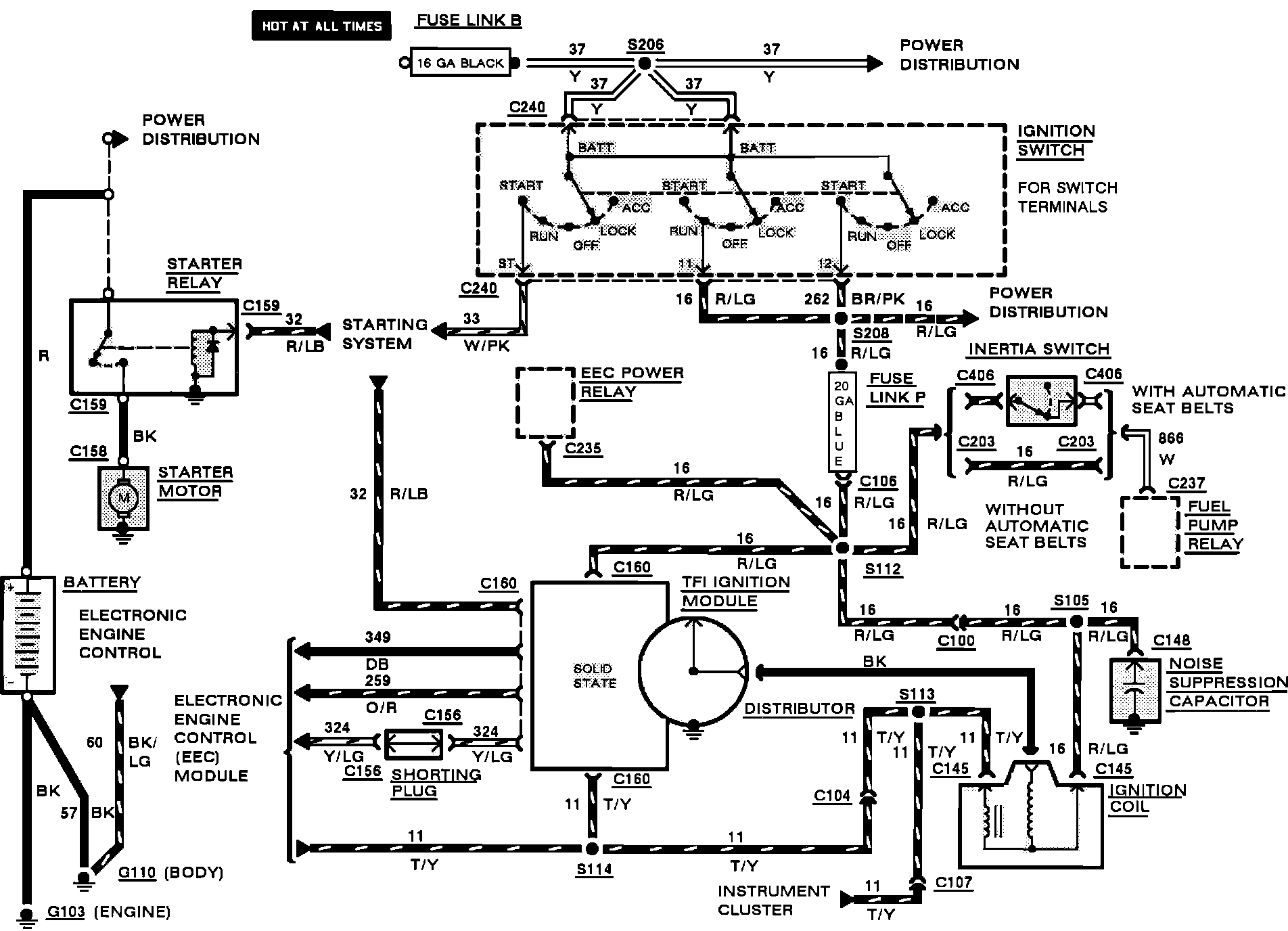

Ignition System:
Functional Schematic:
